Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Compare

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

100%

360^°

"Good layout and design"

"Z97 chipset with decent feature set"

"UEFI BIOS offers extensive options and easy overclocking"

"Includes classic outputs like VGA"

"Great for single powerful video card setups"

"Stable and reliable performance"

"Good for corporate/business users"

"Easy BIOS updates and flash"

"Generally easy to install"

Review Bytes

See more

Shop All ASUS Products

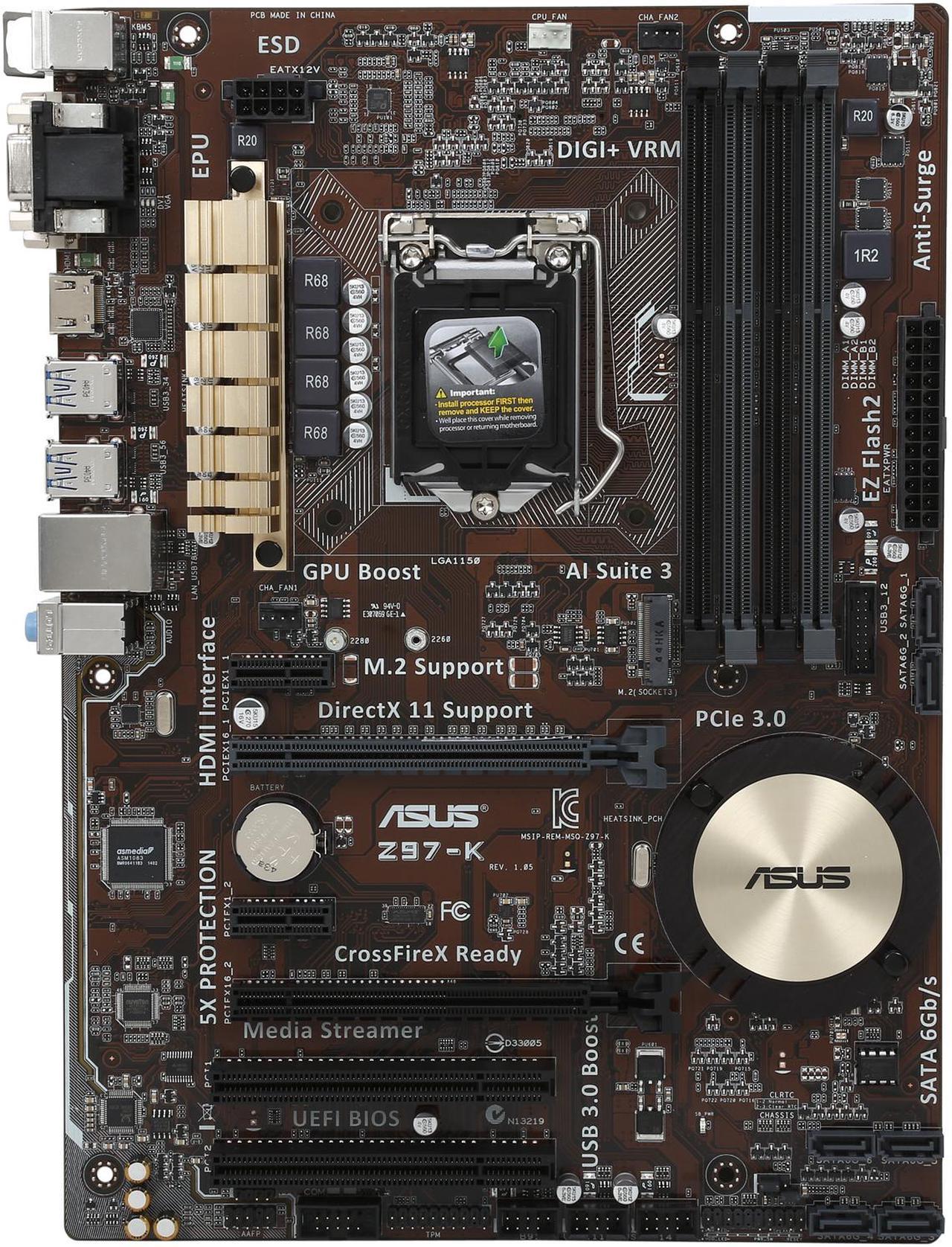

ASUS Z97-K/CSM LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

Name: ASUS Z97-K/CSM LGA 1150 ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813132128
Rating: 3 (12 reviews)

(12) Write a Review

Corporate Stable Model
M.2 onboard - Up to 10Gb/s data-transfer speeds
Crystal Sound 2 - Flawless audio that makes you part of the game
Turbo LAN - Experience smooth online gaming with lower pings and less lags
ASUS Fan Xpert3 -Fan Auto Tuning function and optimized system cooling control based on onboard thermistors
ASUS 5X PROTECTION - DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, High-Quality 5K-Hour Solid Capacitors, Stainless Steel Back I/O

Overview

Specs

Reviews (12)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy. Read full return policy for details.

CPU Socket Type CPU Socket Type	LGA 1150
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium / Xeon (LGA1150)

Number of Memory Slots	4x240pin
Memory Standard	DDR3 3200(OC)/3100(OC)/3000(OC)/2933(OC)/2800(OC)/2666(OC)/2600(OC)/2500(OC)/2400(OC)/2200(OC)/2133(OC)/2000(OC)/1866(OC)/1800(OC)/1600/1333
Maximum Memory Supported	32GB
Channel Supported Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express 2.0 x16	1 (x4 mode)
PCI Express x1	2 x PCI Express x1
PCI Slots	2 x PCI Slots

SATA 6Gb/s SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2
SATA RAID	0/1/5/10

Audio Chipset Audio Chipset	Realtek ALC887
Audio Channels Audio Channels	7.1 Channels

SHOP WITH CONFIDENCE

ASUS Z97-K/CSM LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

Learn more about the ASUS Z97-K/CSM

Customer Reviews of the ASUS Z97-K/CSM

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Sponsored ads from outside of Newegg

Model
Brand	ASUS
Model	Z97-K/CSM

Onboard LAN
LAN Chipset	Realtek 8111GR
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.0
PS/2 PS/2	1 x PS/2 keyboard 1 x PS/2 mouse
Video Ports	1 x DVI-D 1 x VGA
HDMI HDMI	1 x HDMI
USB 3.0 USB 3.0	4 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.0 + 6 x USB 2.0
Other Connectors	1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control 2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control 1 x Front panel audio connector (AAFP) 1 x S/PDIF out header 1 x COM connector 1 x TPM connector 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector 1 x Chassis Intrusion header 1 x Clear CMOS jumper 1 x System panel connector

Item#: N82E16813132128
