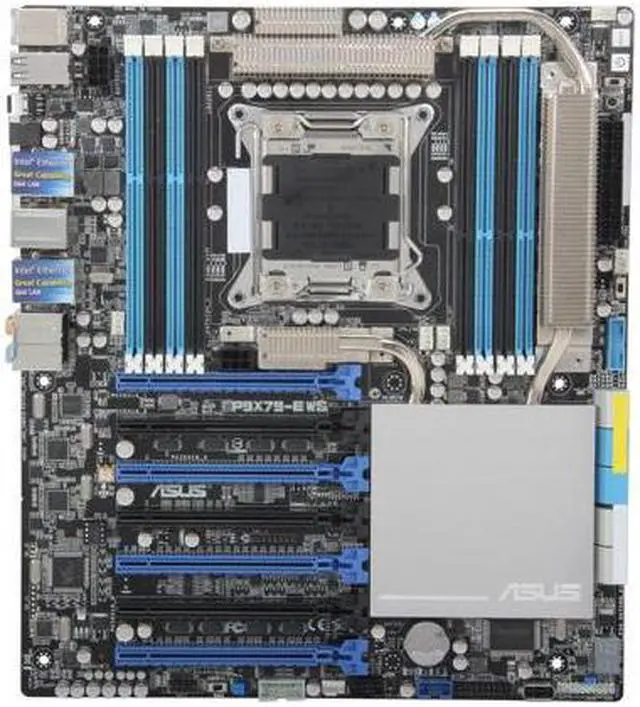

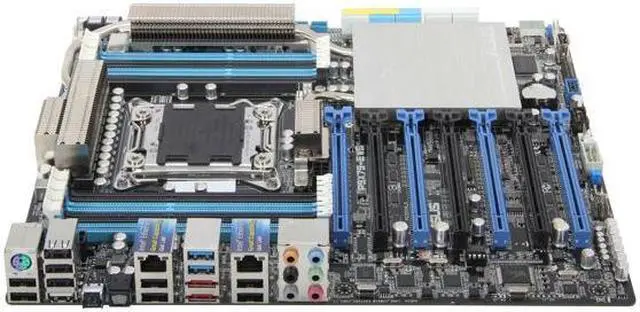

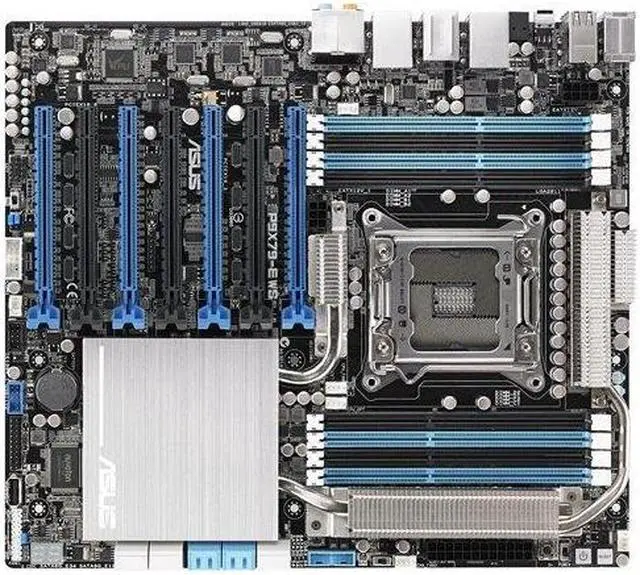

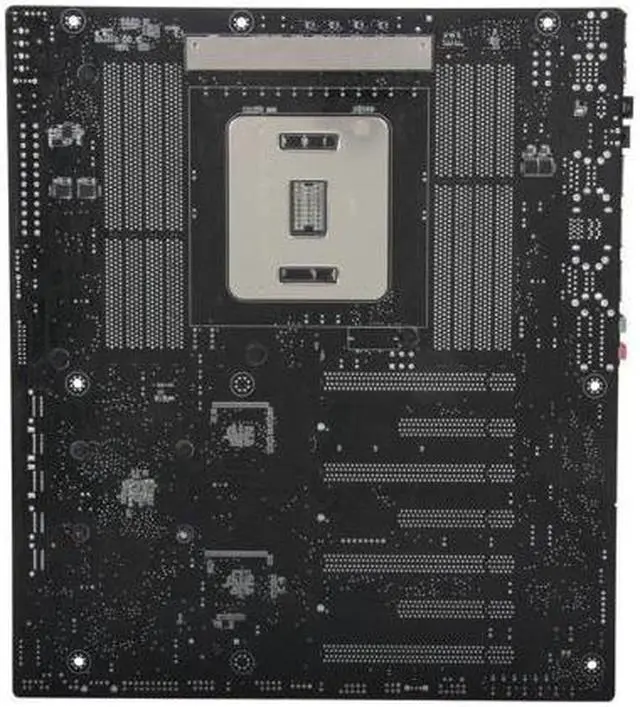

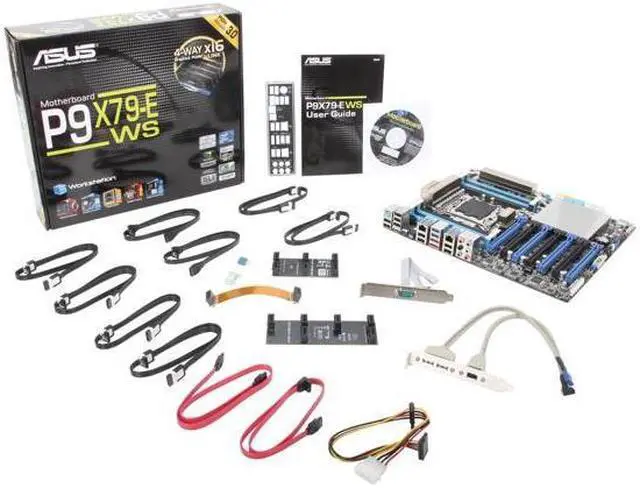

ASUS P9X79-E WS LGA 2011 Intel X79 SATA 6Gb/s USB 3.0 SSI CEB Intel Motherboard

REFURBISHED Product Type
  • Intel X79
  • Core i7 (LGA2011),Xeon E5-1600 (LGA2011),Xeon E5-2600 (LGA2011)
  • DDR3 2400(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066
Specs
Reviews

Learn more about the ASUS P9X79-E WS

Model
Brand ASUS
Model P9X79-E WS
Supported CPU
CPU Socket Type LGA 2011
CPU Type Core i7 (LGA2011),Xeon E5-1600 (LGA2011),Xeon E5-2600 (LGA2011)
Chipsets
Chipset Intel X79
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 8x240pin
Memory Standard DDR3 2400(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066
Maximum Memory Supported 64GB
Channel Supported Quad Channel
Expansion Slots
PCI Express 3.0 x16 4 x PCIe 3.0/2.0 x16 (x16 or dual x16/x16 or x16/x16/x16/x16, blue) *
3 x PCIe 3.0/2.0 x16 (x8 mode, black)
Storage Devices
SATA 3Gb/s 4 x SATA 3Gb/s
SATA 6Gb/s 6 x SATA 6Gb/s
SATA RAID 2 x SATA 6Gb/s port(s), white
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10

4 x SATA 6Gb/s port(s), white
Support Raid 0, 1, 10
Onboard Audio
Audio Chipset Realtek ALC1150
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel I210
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 1
USB 3.0 2 x USB 3.0
USB 1.1/2.0 10 x USB 2.0 (one port can be switched to USB BIOS Flashback)
eSATA 2 x eSATA 6Gb/s
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 2 x USB 2.0
1 x Vertical USB 2.0
Onboard 1394 1 x 1394a
Other Connectors 1 x TPM connector(s)
1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
4 x Chassis Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 8-pin EATX 12 V Power connector
1 x 6-pin EATX 12 V_1 Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x Chassis Intrusion connector(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS jumper(s)
1 x Dr.Power switch
Physical Spec
Form Factor SSI CEB
Dimensions (W x L) 12" x 10"
Power Pin 24 Pin
Features
Features Intel LGA 2011 platform/Intel X79 chipset

Quad Channel-8 DIMM

Best Graphics Performance with 4-Way GeForce SLI and CrossFireX x16 link

Intelligent PSU Detection with ASUS Dr.Power

Better networking with new dual server-grade Intel I210 Ethernet

High speed storage and data transfers with ASUS SSD Caching II

ASUS Xtreme Design
ASUS TPU
ASUS EPU

Industry leading Digital 8 + 2 Phase CPU Power Design
Industry leading Digital 2 + 2 Phase DRAM Power Design
CPU Power Utility
DRAM Power Utility

ASUS Q-Design

ASUS Quiet Thermal Solution

ASUS EZ DIY
