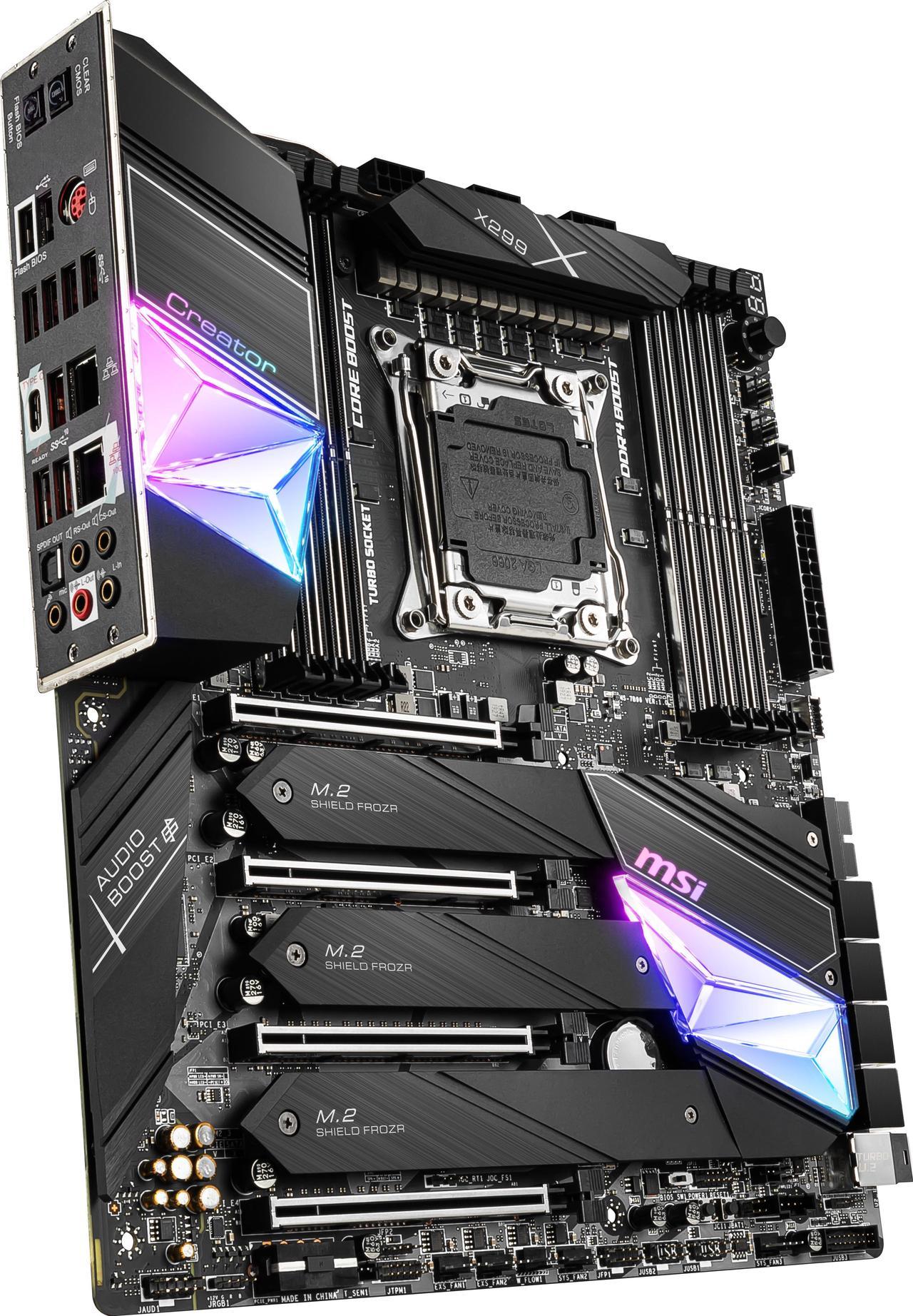

MSI Creator X299 LGA 2066 Intel X299 SATA 6Gb/s Extended ATX Intel Motherboard
- Intel X299
- Supports Intel Core X-series 10000/9000/78xx (above) processors for socket LGA2066
- Support DDR4 4266+(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133
+
+
Specs
Reviews (20)
Learn more about the MSI Creator X299
| Brand | MSI |
|---|---|
| Model | Creator X299 |
| CPU Socket Type | LGA 2066 |
|---|---|
| CPU Type | Supports Intel Core X-series 10000/9000/78xx (above) processors for socket LGA2066 |
| Chipset | Intel X299 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 8x288pin (DDR4) |
|---|---|
| Memory Standard | Support DDR4 4266+(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Quad Channel |
| PCI Express 3.0 x16 | 4 x PCIe 3.0 x16 slots Support x8/x8/x16/x8 and x16/x0/x16/x8 modes with the 48-lane CPU. Support x8/x8/x16/x8 and x16/x0/x16/x8 modes with the 44-lane CPU.* Support x8/x8/x8/x0 and x16/x0/x8/x0 modes with the 28-lane CPU.** * The PCI_E4 slot will run 3.0 x4 speed with 44-lane CPU when installing M.2 PCIe device into M2_3 slot. ** The PCI_E4 slot is unavailable with 28-lane CPU. |
|---|
| SATA 6Gb/s | 8 x SATA 6Gb/s |
|---|---|
| M.2 | Intel X299 Chipset 1 x M.2 slots (Key M) - Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices - Intel Rapid Start Technology - Intel Optane Memory Ready 1 x U.2 port, supports PCIe 3.0 x4 NVMe storage - Supports Intel Smart Response Technology Intel CPU 2 x M.2 slots (M2_2 & M2_3, Key M) - Support up to PCIe 3.0 x4, 2242/2260/2280/22110 storage devices* * M2_3 slot is unavailable with 28-lane CPU. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Chipset | AQUANTIA AQC107 |
|---|---|
| Second LAN Chipset | Intel I219V |
| Max LAN Speed | 10Gbps + 1Gbps |
| Wireless LAN | Intel Wi-Fi 6 AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4-5 GHz (160 MHz) up to 2.4 Gbps The Wireless module is pre-install in the M2_4 (Key-E) slot * Only support windows 10 64-bit |
| Bluetooth | Supports Bluetooth 5 |

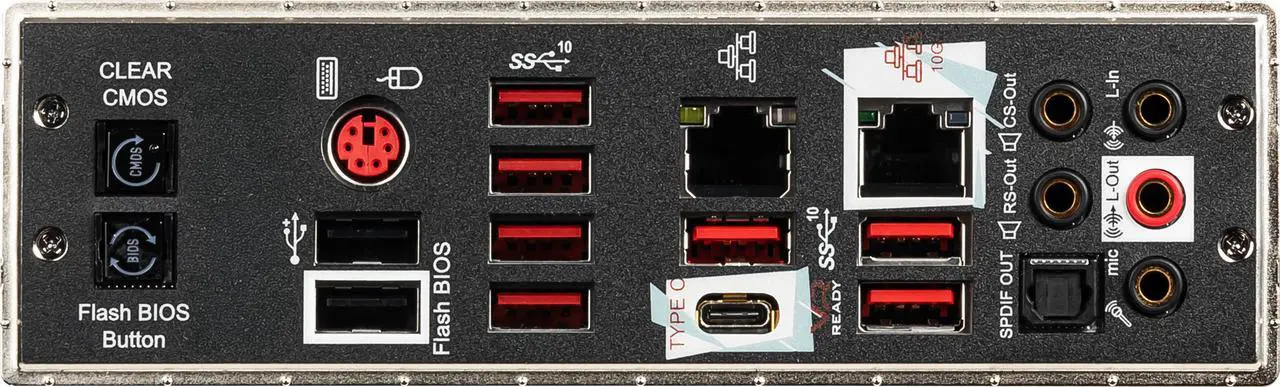

| Back I/O Ports | 1 x Clear CMOS Button 1 x Flash BIOS Button 1 x Wireless / Bluetooth Module 1 x PS/2 keyboard/mouse combo port 2 x USB 2.0 Type-A ports 7 x USB 3.2 Gen1 Type-A ports 2 x LAN (RJ45) ports 1 x USB 3.2 Gen2x2 20G Type-C port 5 x OFC audio jacks 1 x Optical S/PDIF OUT connector |
|---|
| Onboard USB | 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 1 x USB 3.1 Gen2 Type-C port |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 4 x 4-pin system fan connectors 2 x 4-pin extend system fan connectors 1 x 4-pin water-pump fan connector 1 x 3-pin Water Flow connector 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x 2-pin Thermal Sensors connector 1 x Thunderbolt Add-on Card Connector 1 x Virtual RAID on CPU connector |
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 10.7" |
| Power Pin | 1 x 24-pin ATX main power connector 3 x 8-pin ATX 12V power connectors 1 x flat 4-pin ATX 12V power connector (Provides additional power for PCIe x16 slots) |
| Features | Supports Intel Core X-series Processors 10000/9000/78xx (above)series for LGA2066 Socket Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4266+(OC) More Powerful than Enough: dedicate 12 phases 90A digital power to CPU, with all aluminum design More Efficency for Data Transfer: 10G LAN + Intel Gigabit LAN with Intel WIFI 6 and bandwidth management More Compatibility for Storage: 7 x Turbo M.2 with M.2 XPANDER-AERO, 1 x Turbo U.2 More Flexibility for Temperature Control: Full fan control with 8 PWM fan headers and 1 dedicated thermal sensor Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 safer and faster Core Boost: With premium layout and full digital power design to support more cores and provide better performance Triple 8-Pin Power Supply: By providing triple 8-pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB, Raibow and Corsair LED strip Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality DDR4 Boost with Steel Armor: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost Multi-GPU: With Steel Armor PCI-E slots. Supports up to 4-Way NVIDIA SLI & 4-Way AMD Crossfire THUNDERBOL3: Exclusive expansion card offering dual DisplayPort and dual Thunderbolt 3 for the full 4K video experience |
|---|
| Date First Available | November 26, 2019 |
|---|
