    GIGABYTE X870E AORUS XTREME AI TOP AMD AM5 LGA 1718 Motherboard, E-ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 10GbE LAN, EZ-Latch

    (83)(33) Write a Review
    • X870E AORUS MASTER
    • X870E AORUS PRO
    • X870E AORUS ELITE WIFI7
    • X870 AORUS ELITE WIFI7
    • X870 GAMING X WIFI7
    • X870 EAGLE WIFI7
    • X870 GAMING WIFI6
    • X870E AORUS XTREME AI TOP
    • X870I AORUS PRO ICE
    • AMD Socket AM5: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors
    • DDR5 Compatible: 4*DIMMs with AMD EXPO Support
    • Power Design: 18+2+2, 110A Smart Power Stage
    • Thermals: VRM and M.2 Thermal Guard
    • Connectivity: PCIe 5.0, 4x M.2 Slots, Dual USB4, Front and Rear USB-C, Sensor Panel Link
    • DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, Wi-Fi EZ-Plug, EZ-Debug Zone
    • Networking: WIFI7, 5GbE LAN
    +
    +
    Specs
    Reviews (83)

    Learn more about the GIGABYTE X870E AORUS XTREME AI TOP

    Model
    Brand GIGABYTE
    Model X870E AORUS XTREME AI TOP
    Supported CPU
    CPU Socket Type AM5
    CPU Type Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
    Chipsets
    Chipset AMD X870E
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard DDR5 4400 / DDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800
    Maximum Memory Supported 256GB
    ECC Supported Yes
    Buffer Supported Un-buffered
    Expansion Slots
    PCI Express 5.0 x16 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD.
    If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode
    * The PCIEX8 slot becomes unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.
    PCI Express 4.0 x16 Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2)
    * The PCIEX2 slot shares bandwidth with the M2E_SB connector. The PCIEX2 slot becomes unavailable when a device is installed in the M2E_SB connector
    Storage Devices
    M.2 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    2 x M.2 connectors (M2D_SB, M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
    1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
    4 x SATA 6Gb/s connectors
    SATA RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    * RAID 5 is only available on AMD Ryzen 9000 Series Processors

    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    Onboard Audio
    Audio Chipset Realtek ALC1220
    Audio Channels 5.1 Channels
    Onboard LAN
    LAN Chipset 2 x Marvell AQtion AQC113C 10GbE LAN chips
    Max LAN Speed 2 x 10Gbps
    Wireless LAN Wi-Fi 802.11 be
    Bluetooth BLUETOOTH 5.3

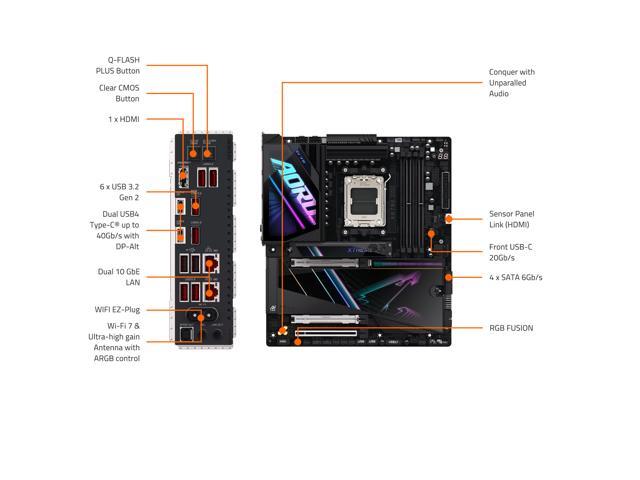

    Rear Panel Ports
    Back I/O Ports 1 x Q-Flash Plus button
    1 x Clear CMOS button
    1 x HDMI port (Note)
    2 x USB4 USB Type-C ports (DisplayPorts (Note))
    6 x USB 3.2 Gen 2 Type-A ports (red)
    2 x USB 2.0/1.1 ports
    2 x RJ-45 ports
    2 x antenna connectors (2T2R)
    1 x optical S/PDIF Out connector
    2 x audio jacks

    (Note) Actual support may vary by CPU.
    Internal I/O Connectors
    Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    Other Connectors 1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    4 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    4 x SATA 6Gb/s connectors
    4 x M.2 Socket 3 connectors
    2 x temperature sensor headers
    1 x front panel header
    1 x front panel audio header
    1 x noise detection header
    1 x HDMI port (Note)
    1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x power button
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper
    Voltage Measurement Points

    (Note) Actual support may vary by CPU.
    Physical Spec
    Form Factor Extended ATX
    Dimensions (W x L) 12.0" x 10.6"
    Power Pin 1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    Software Feature
    BIOS Feature 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Windows 11 Windows 11 64-bit
    Features
    Features Support for GIGABYTE Control Center (GCC)
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
    Additional Information
    Date First Available December 16, 2024
