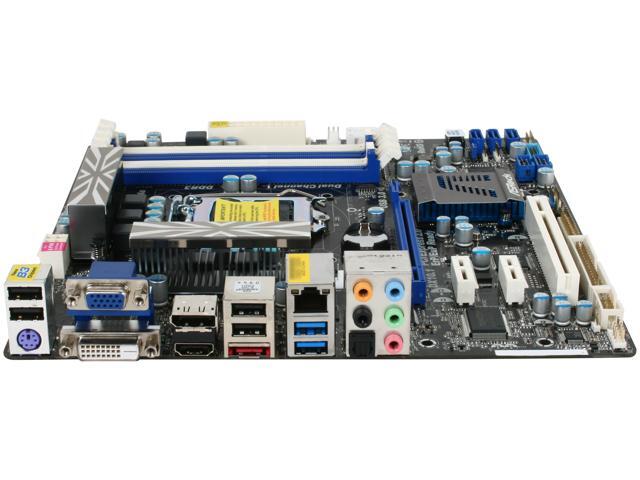

ASRock H67M-GE/HT (B3) LGA 1155 Intel H67 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

(17) Write a Review
  • Intel H67
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 1333
Specs
Reviews (17)

Learn more about the ASRock H67M-GE/HT (B3)

Model
Brand ASRock
Model H67M-GE/HT (B3)
Supported CPU
CPU Socket Type CPU Socket TypeLGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Supported CPU Technologies Supports Intel Turbo Boost 2.0 Technology
Supports Intel K-Series unlocked CPU
Supports Hyper-Threading Technology
Chipsets
Chipset ChipsetIntel H67
Onboard Video
Onboard Video Chipset Onboard Video ChipsetSupported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1333
Maximum Memory Supported 32GB
Channel Supported Channel SupportedDual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
SATA 3Gb/s SATA 3Gb/s3 x SATA 3Gb/s
SATA 6Gb/s SATA 6Gb/s2 x SATA 6Gb/s
SATA RAID 3 x SATA2 3.0 Gb/s: RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel Rapid Storage), NCQ, AHCI and "Hot Plug" functions
2 x SATA3 6.0 Gb/s: RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel Rapid Storage), NCQ, AHCI and "Hot Plug" functions
Onboard Audio
Audio Chipset Audio ChipsetRealtek ALC892
Audio Channels Audio Channels8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x DisplayPort / 1 x eSATA 3GB/S / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2 PS/21
Video Ports D-Sub + DVI
HDMI HDMI1 x HDMI
DisplayPort 1 x DisplayPort
USB 3.0 USB 3.02 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
eSATA 1 x eSATA 3Gb/s
S/PDIF Out S/PDIF Out1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 6 x USB 2.0
Other Connectors 1 x Floppy connector
1 x IR header
1 x CIR header
1 x Print Port header
1 x COM port header
1 x HDMI_SPDIF header
1 x Power LED header
CPU/Chassis/Power FAN connector
24 pin ATX power connector
8 pin 12V power connector
Front panel audio connector
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Features
Features 100% All Solid Capacitor design

Supports Intel K-Series unlocked CPU

Supports Dual Channel DDR3 1333

Intel HD Graphics 100/200, DX 10.1, Pixel Shader 4.1

Multi VGA Output options: D-Sub, DVI-D, HDMI and DisplayPort

2 x Front USB 3.0 ports, 2 x Rear USB 3.0 ports, 2 x SATA3 connectors, 1 x eSATA2 connector

Supports ASRock Extreme Tuning Utility (AXTU), Instant Boot, Instant Flash, Good Night LED, Multi-Fan Speed Control, AIWI, APP Charger, SmartView

Combo Cooler Option (C.C.O.)

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), THX TruStudio Pro and Premium Blu-ray audio support

ErP/EuP Ready
Additional Information
Date First Available April 07, 2011
