ASRock H510M-ITX/AC LGA 1200 Intel H510 SATA 6Gb/s Mini ITX Intel Motherboard

(12) Write a Review
  • Intel H510
  • Supports 11th Gen Intel Core Processors
  • Supports 10th Gen Intel Core Processors
  • DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 (11th Gen Intel Core Processors)
  • DDR4 2933 / 2800 / 2666 / 2400 / 2133 (10th Gen Intel Core Processors)
Overview
Specs
Reviews (12)
  • Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
  • 6 Phase Dr.MOS Power Design
  • Supports DDR4 3200 MHz
  • 1 x PCIe 4.0 x16
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • 4 SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front)
  • 4 x USB 2.0 (2 x Rear, 2 x Front)
  • Intel Gigabit LAN
  • Intel 802.11ac WiFi + BT 4.2
  • ASRock Polychrome SYNC

ASRock H510M-ITX/AC

Based on Intel H510 chipset, this ITX motherboard brings robust power delivery, ultra fast PCIe 4.0 connectivity, plus an Ultra M.2 slot (PCIe 3.0 x4) in a compact design. Combine them with advanced circuitry and Super Alloy components to create a stable and durable motherboard that fully supports the latest 11th / 10th gen Intel Core processors. Intel 802.11ac and Bluetooth are built onboard for wireless convenience out of the box — no adapters required.


Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

6 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.

Clever Access Memory

Conventional PC systems’ processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increases performance.

Base Frequency Boost (BFB) Technology

Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs onto ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.

While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.

** BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.

RULE YOUR OWN LIGHTING WAY — POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, and chassis. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.


* The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

* The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.


Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

Intel LAN

Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!


Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.


Dual Graphics Outputs

Complete with two types of most used connectors! Packed with an HDMI + DisplayPort combo, you have more graphics output options now.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

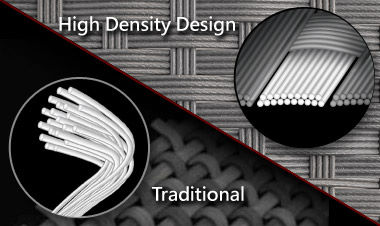

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

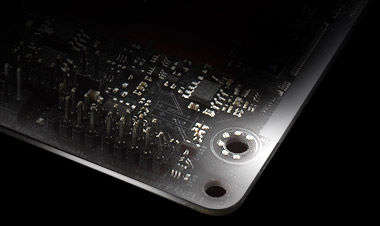

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.


Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.


Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges. The excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.


Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
