Best Seller Ranking | #86 in Intel Motherboards |
---|
Brand | ASRock |
---|---|

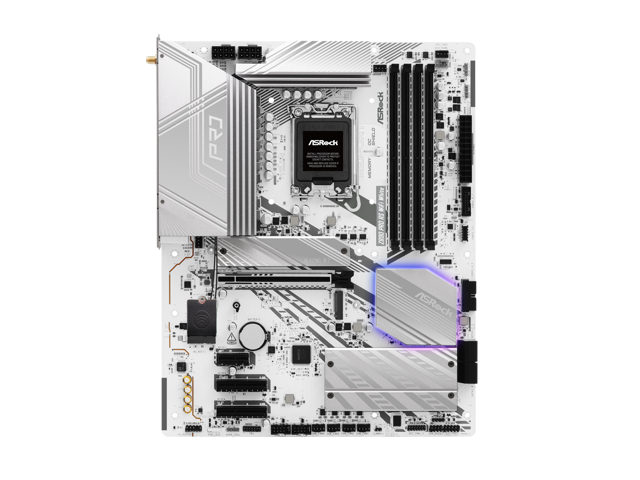

Model | Z890 Pro RS WiFi White |
CPU Socket Type | LGA 1851 |
---|---|
CPU Type | Intel Core Ultra Processors (Series 2) |
Chipset | Intel Z890 |
---|
Number of Memory Slots | 4x288pin (DDR5) |
---|---|
Memory Standard | DDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066 |
Maximum Memory Supported | 256GB |
Channel Supported | Dual Channel |
Memory Feature | Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC) - 1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively. - 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. - 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. - 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively. Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0 |
PCI Express 5.0 x16 | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
---|---|
PCI Express x4 | Chipset: - 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode* |
PCI Express x1 | 1 x PCIe 4.0 x1 Slot (PCIE2)* * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. * Supports NVMe SSD as boot disks |
SATA 6Gb/s | 4 x SATA 6Gb/s |
---|---|
M.2 | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* * Supports Intel Volume Management Device (VMD) * Supports NVMe SSD as boot disks |
SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
Additional RAID Controller | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
Audio Chipset | Realtek ALC897 |
---|---|
Audio Channels | 7.1 CH HD Audio Nahimic Audio |
LAN Chipset | Dragon RTL8125BG |
---|---|
Max LAN Speed | 2.5Gbps |
Wireless LAN | Wi-Fi 802.11 axe |
Bluetooth | Bluetooth 5.3 |

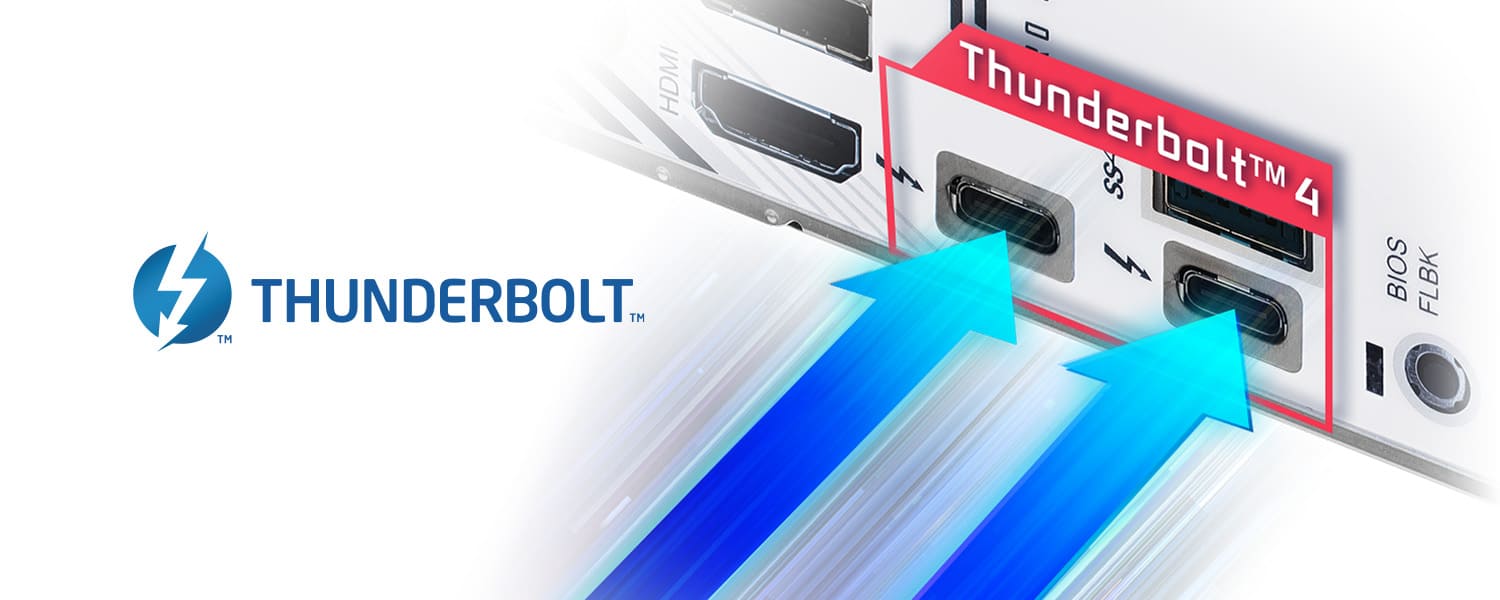

Back I/O Ports | 2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)* 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone * Supports USB PD 3.0 up to 5V@3A (15W) charging |
---|
Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
---|---|
Other Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). *** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W). *** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
BIOS Feature | 256Mb AMI UEFI Legal BIOS with GUI support |
---|---|
Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
Windows 11 | Supported |
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |

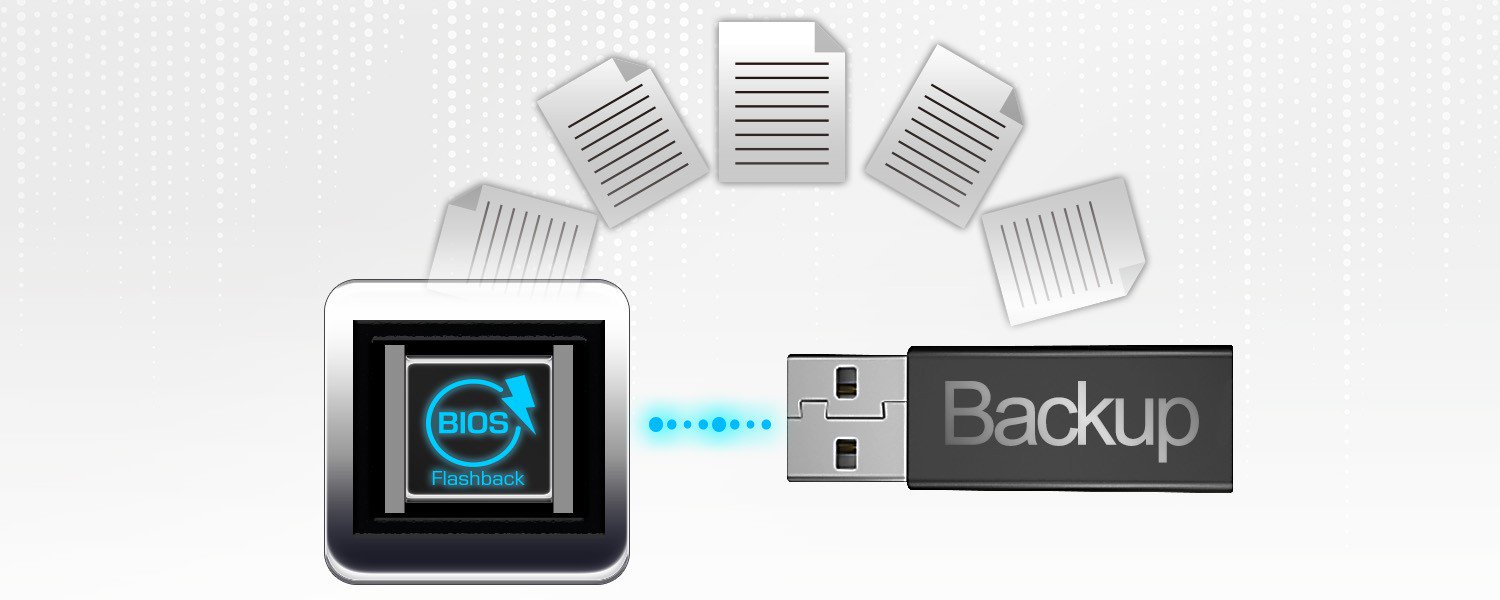

Features | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - Thunderbolt 4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT with Enlarged Heatsink Armor - Memory OC Shield - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
---|
Package Contents | 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 1 x Screw for M.2 Socket 1 x Standoff for M.2 Socket |
---|
Date First Available | October 10, 2024 |
---|
