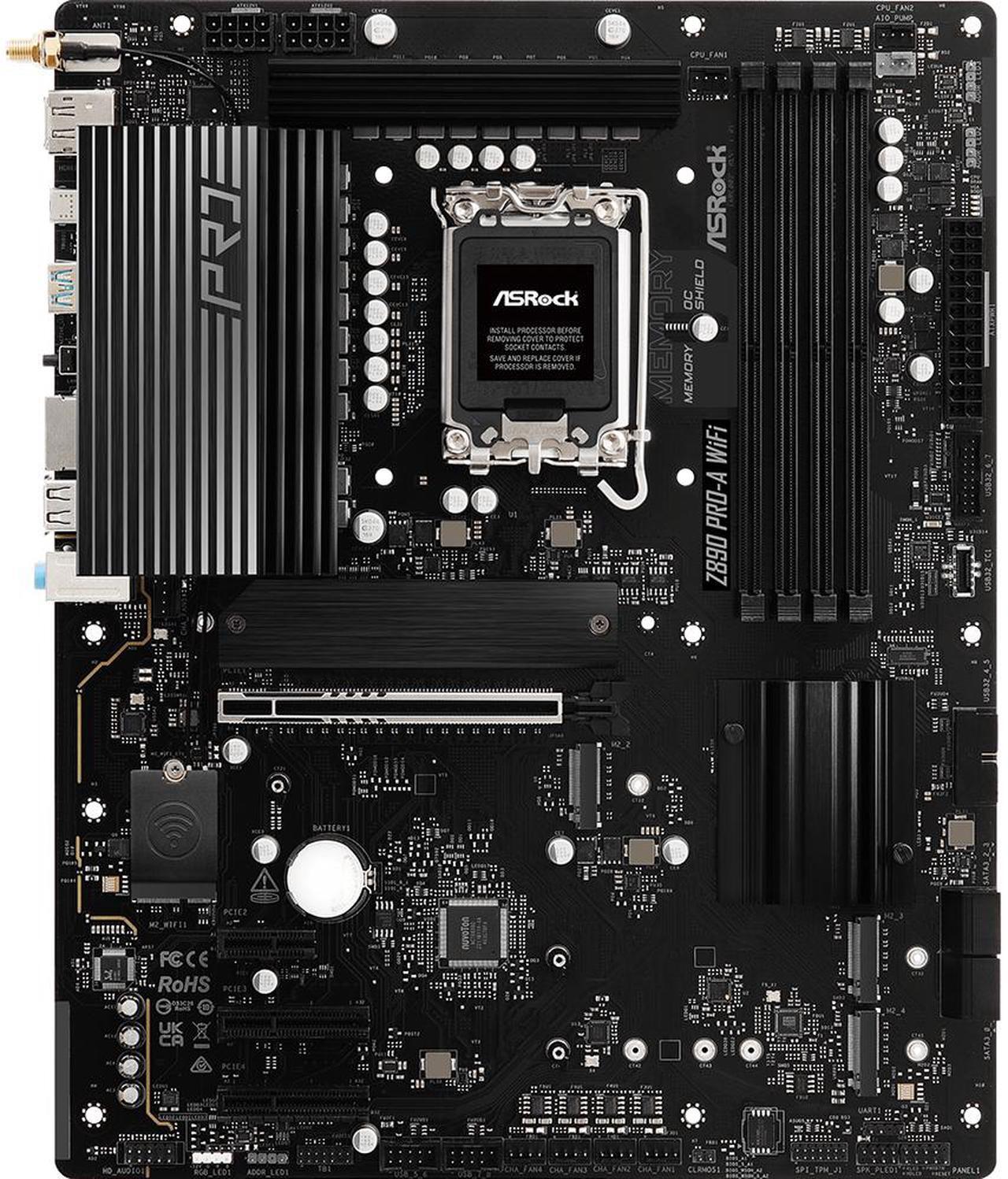

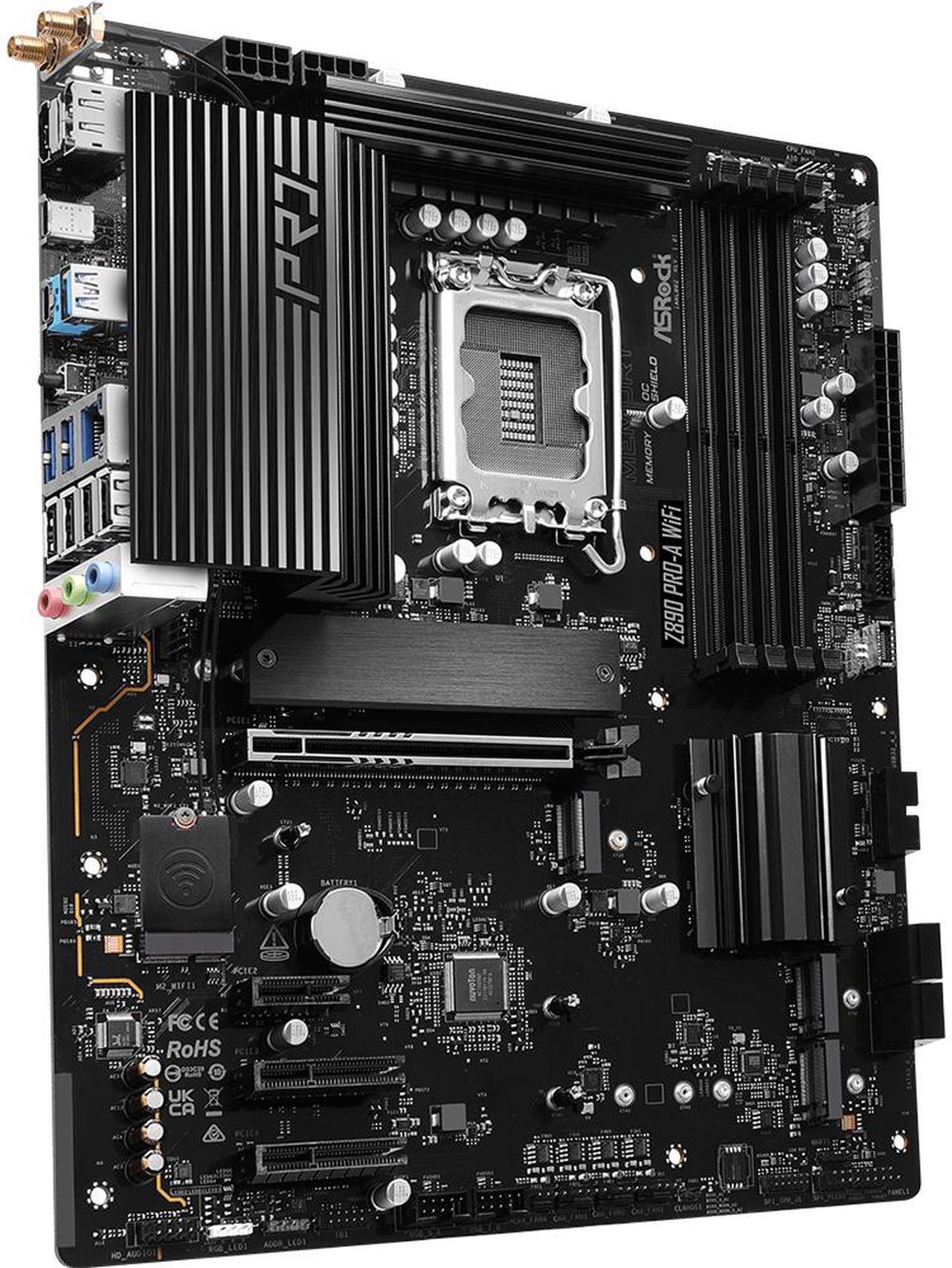

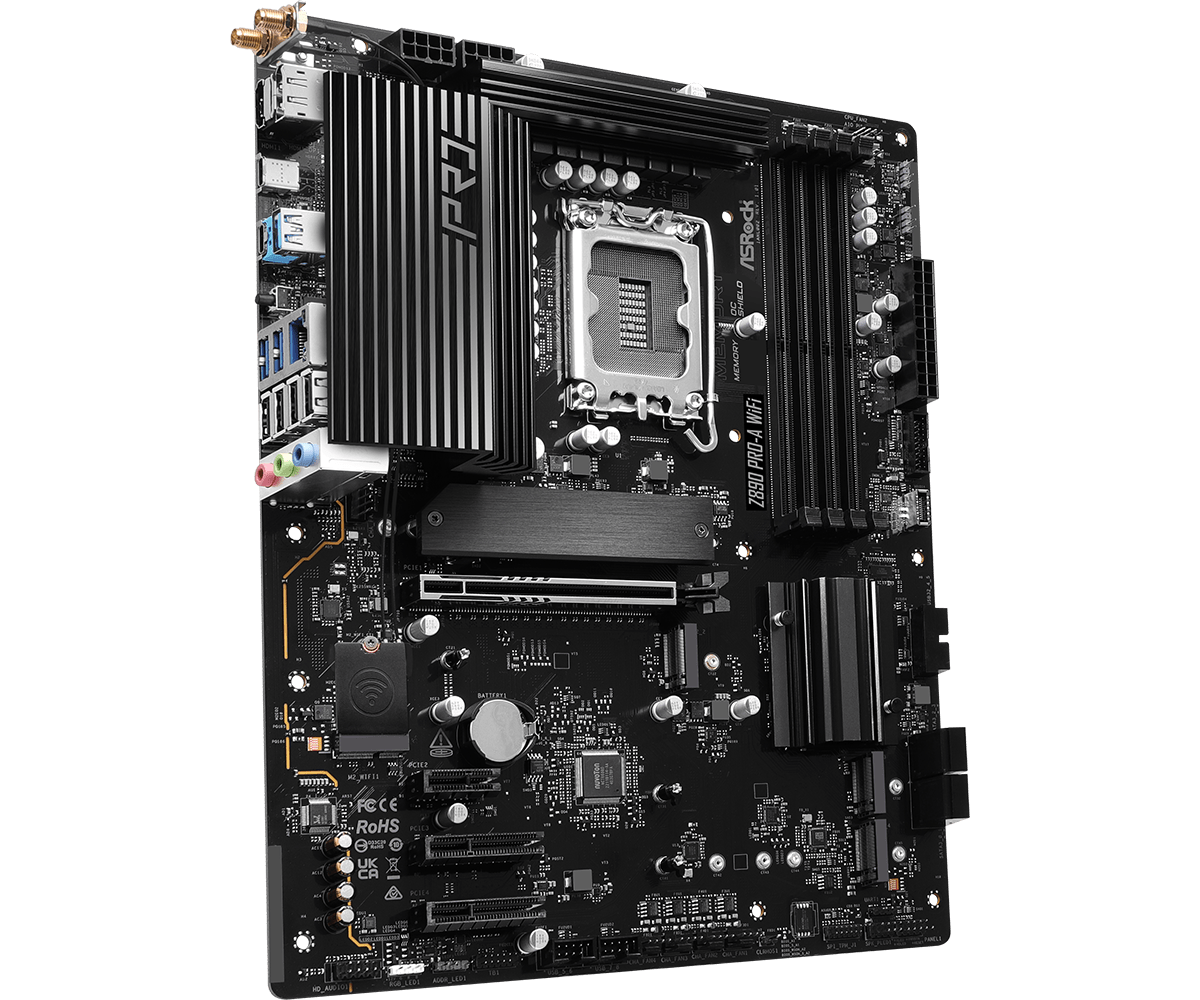

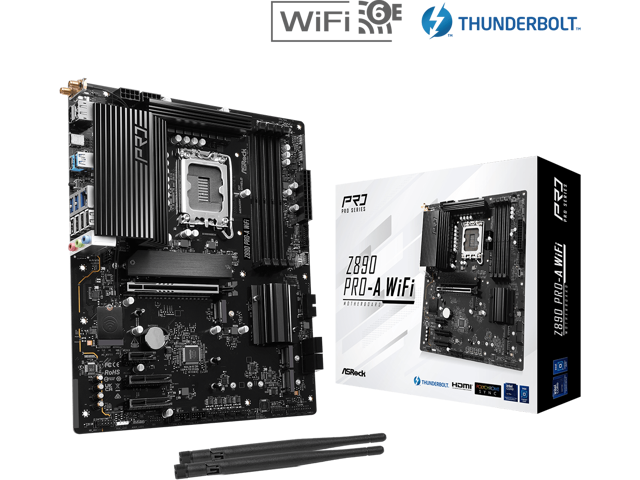

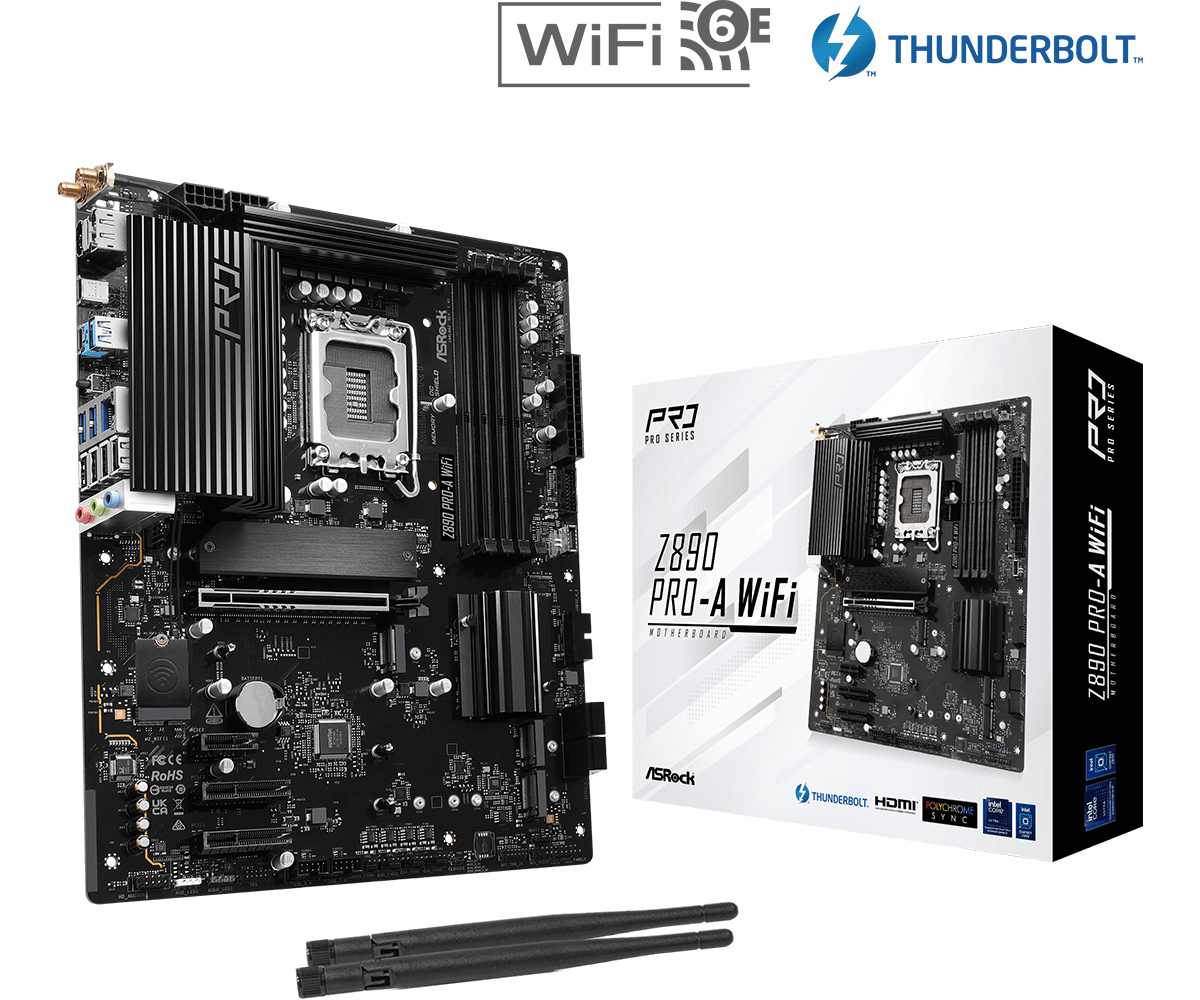

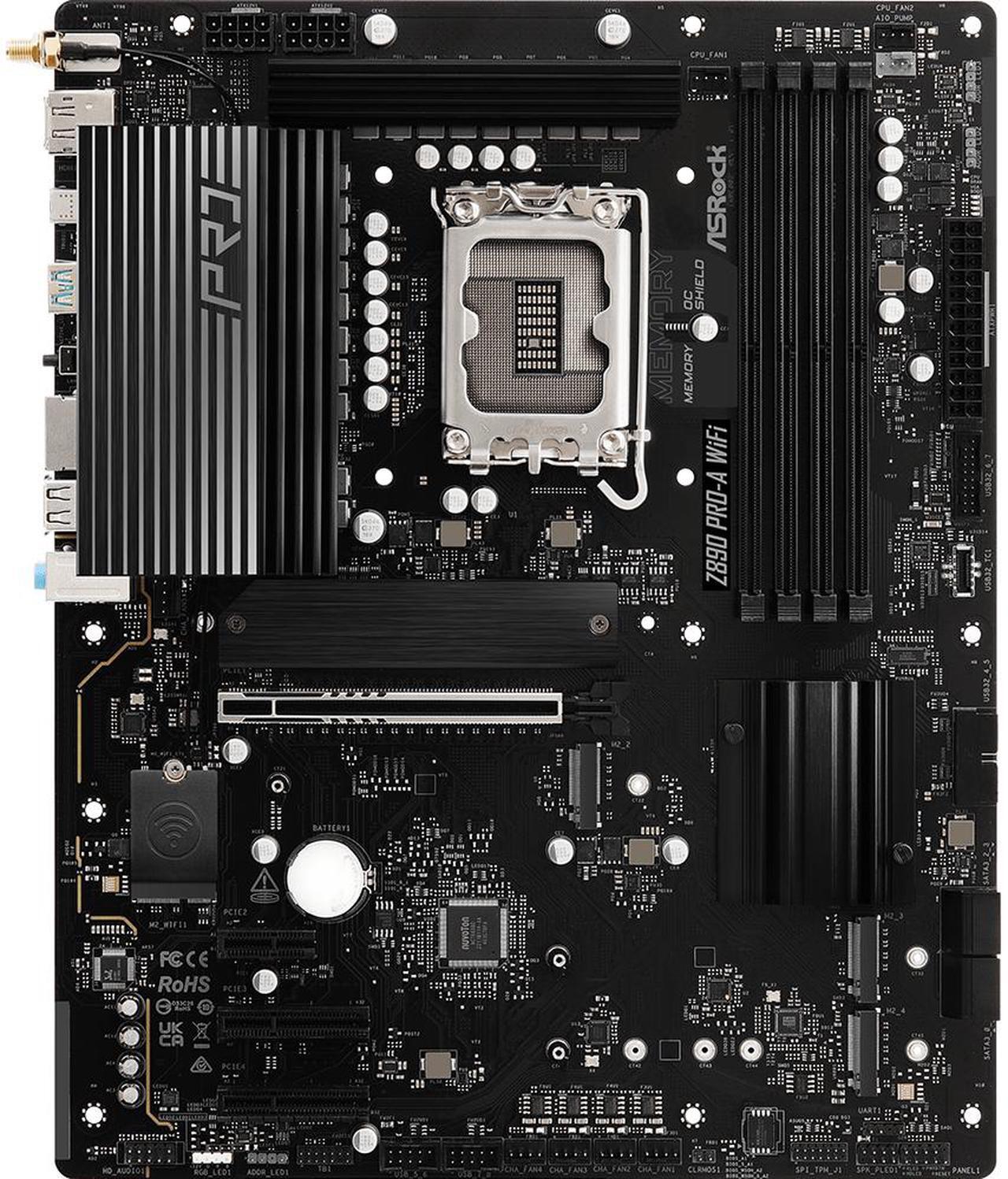

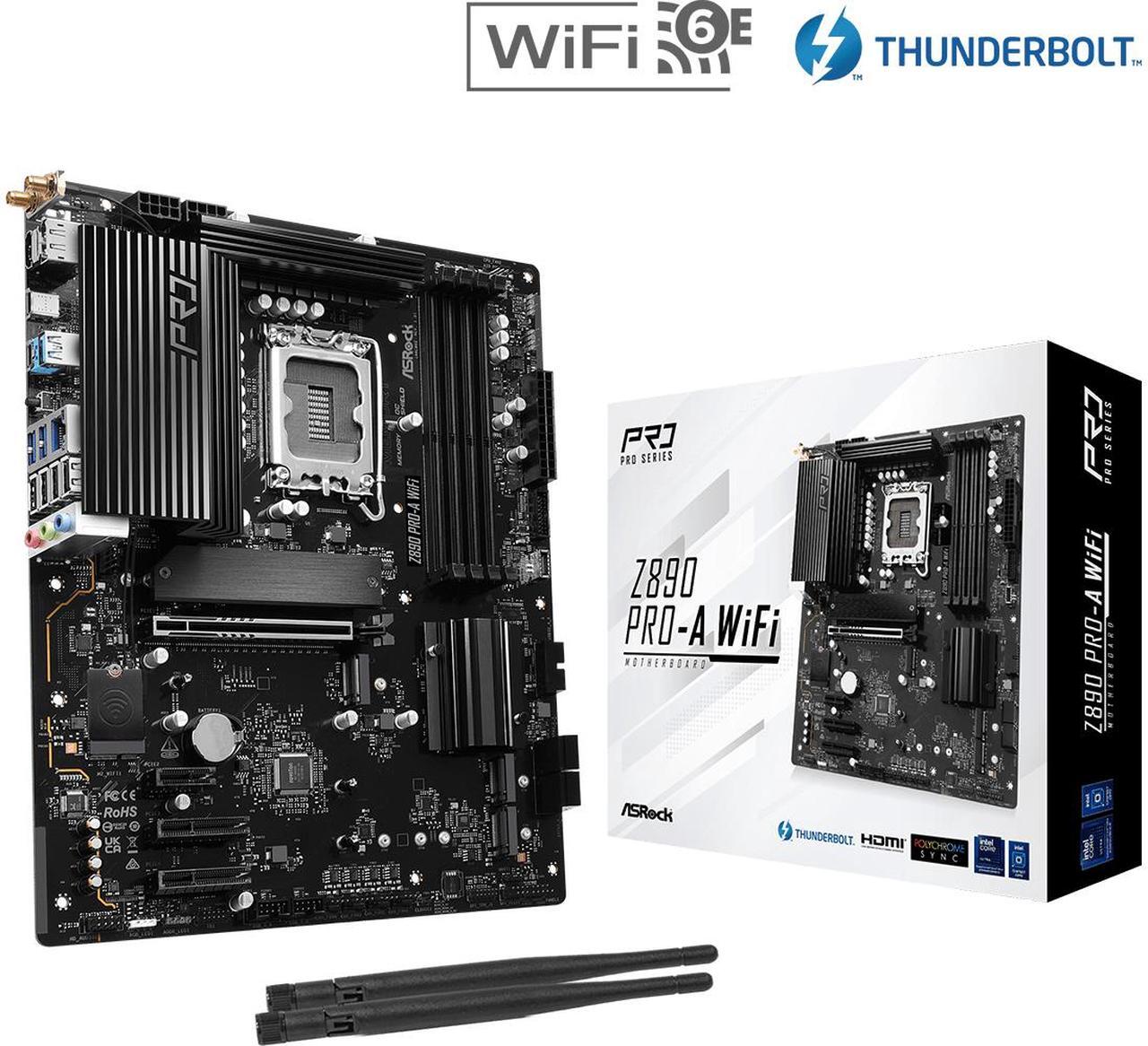

    ASRock Z890 Pro-A WiFi LGA 1851 Intel Z890 SATA 6Gb/s ATX Motherboard

    (18)(8) Write a Review
    • Z890 Taichi OCF
    • Z890 Taichi
    • Z890 Taichi Lite
    • Z890 Nova WiFi
    • Z890I Nova WiFi
    • Z890 Riptide WiFi
    • Z890 Lightning WiFi
    • Z890M Riptide WiFi
    • Z890 Steel Legend WiFi
    • Z890 Pro RS WiFi
    • Z890 Pro RS WiFi White
    • Z890 Pro RS
    • Z890 Pro-A WiFi
    • Z890 Pro-A
    • Z890 LiveMixer WiFi
    • Supports Intel®Core™ Ultra Processors (Series 2)(LGA1851)
    • 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
    • 4 x DDR5 DIMMs Supports Dual Channel, up to 8666+ (OC)
    • 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
    • Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
    • Realtek ALC897 7.1 CH HD Audio Codec
    +
    +
    Specs
    Reviews (18)

    Learn more about the ASRock Z890 Pro-A WiFi

    Model
    Brand ASRock
    Model Z890 Pro-A WiFi
    Supported CPU
    CPU Socket Type LGA 1851
    CPU Type Intel Core Ultra Processors (Series 2)
    Chipsets
    Chipset Intel Z890
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard DDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066
    Maximum Memory Supported 256GB
    Channel Supported Dual Channel

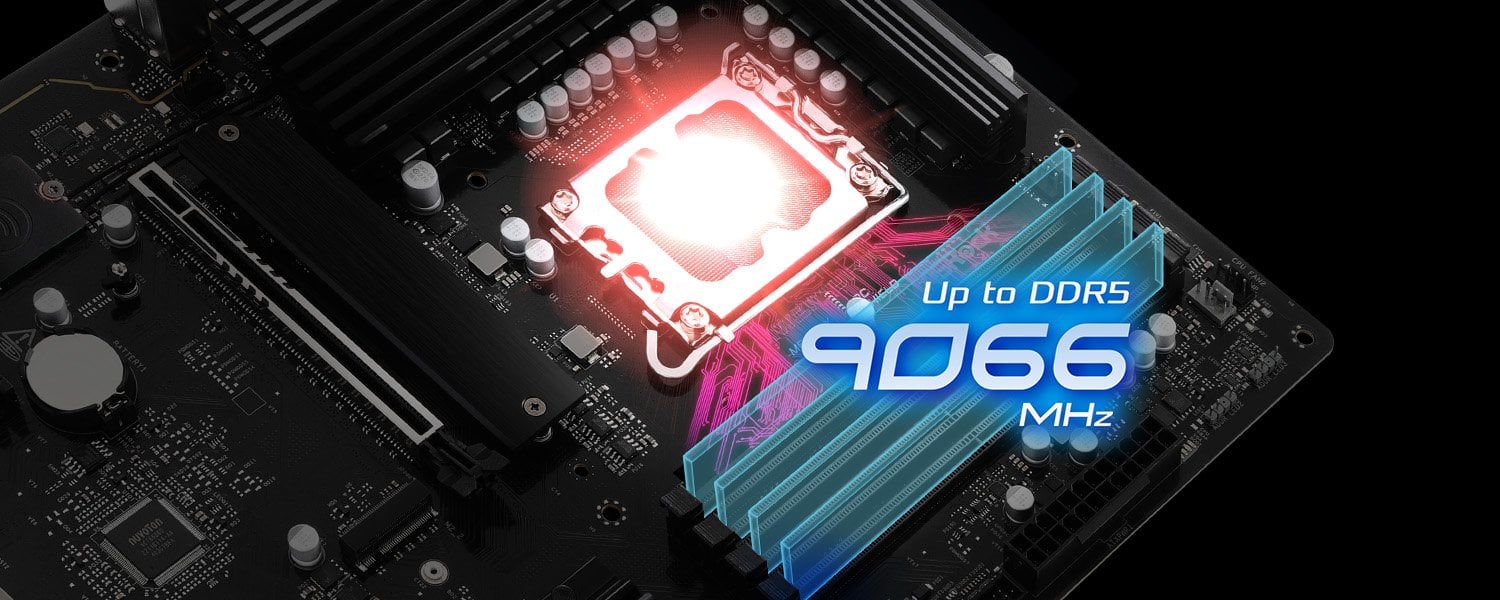

    Memory Feature Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)
    - 1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
    - 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
    - 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively.
    - 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
    Max. capacity of system memory: 256GB
    Supports Intel Extreme Memory Profile (XMP) 3.0
    Expansion Slots
    PCI Express 5.0 x16 CPU:

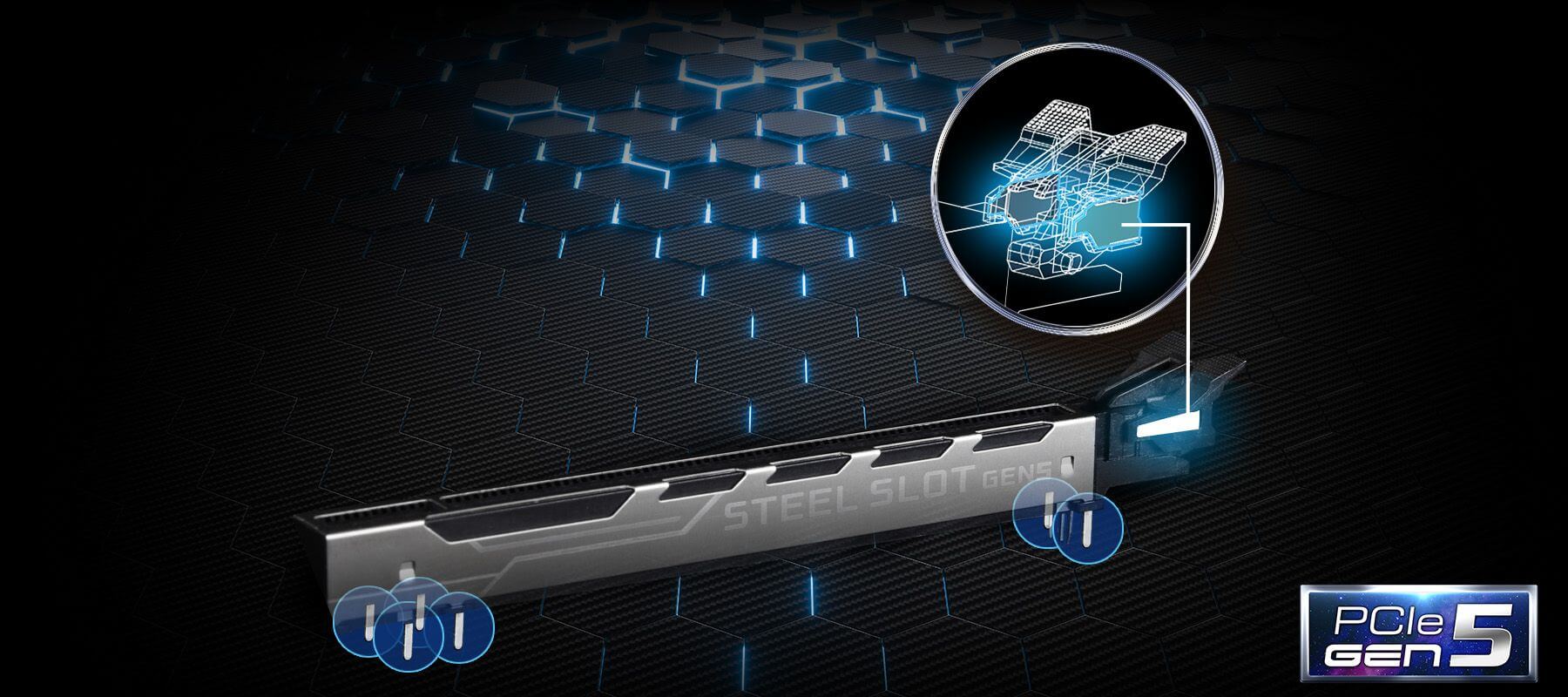

    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    PCI Express x4 Chipset:
    - 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
    PCI Express x1 1 x PCIe 4.0 x1 Slot (PCIE2)*

    * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
    * Supports NVMe SSD as boot disks
    Storage Devices
    SATA 6Gb/s 4 x SATA 6Gb/s

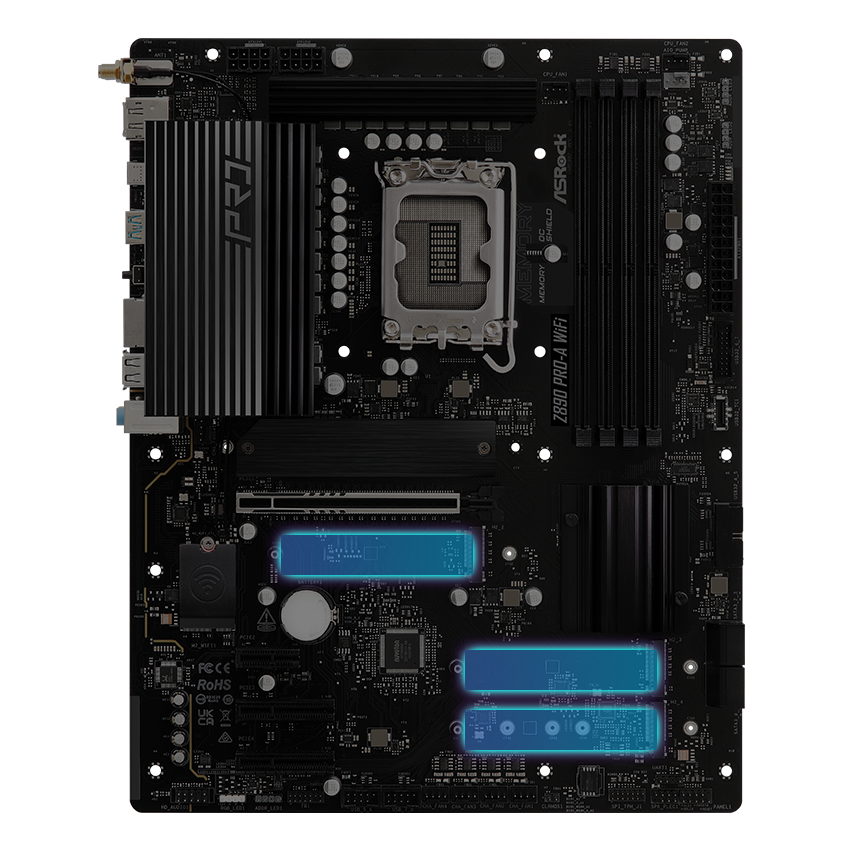

    M.2 CPU:

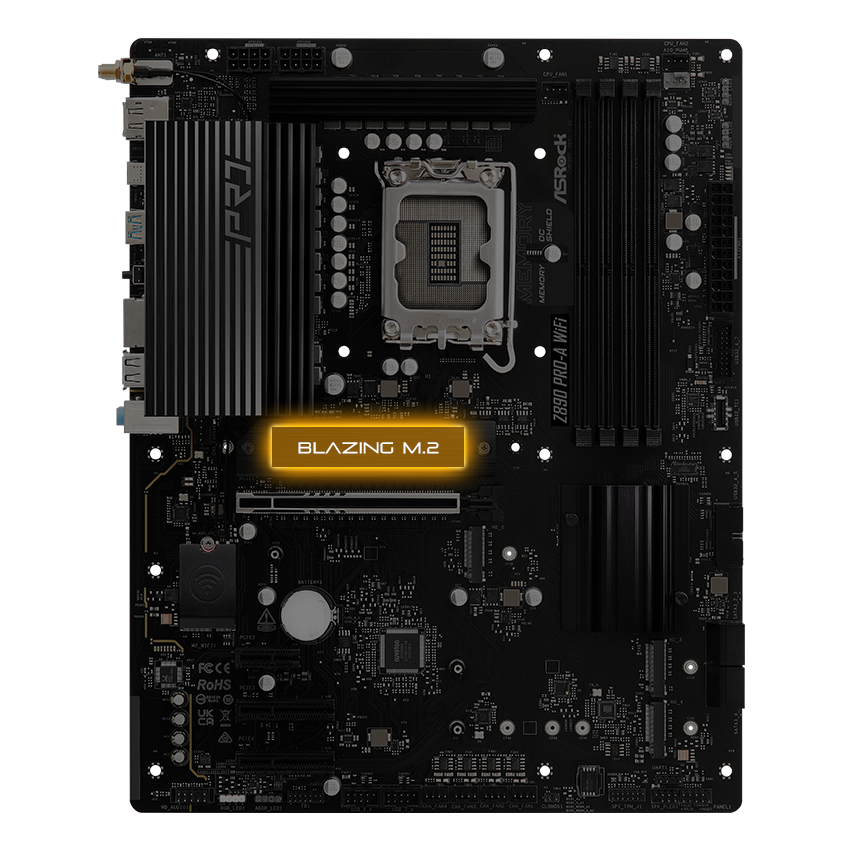

    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

    * Supports Intel Volume Management Device (VMD)
    * Supports NVMe SSD as boot disks
    SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Additional RAID Controller Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Dragon RTL8125BG
    Max LAN Speed 2.5Gbps

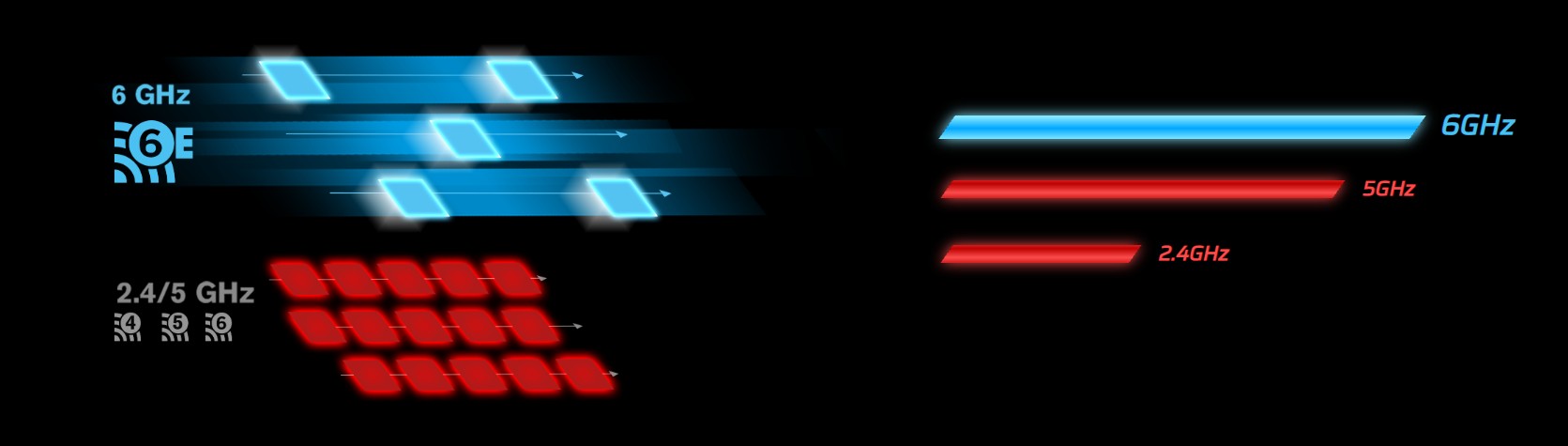

    Wireless LAN Wi-Fi 802.11 axe
    Bluetooth Bluetooth 5.3

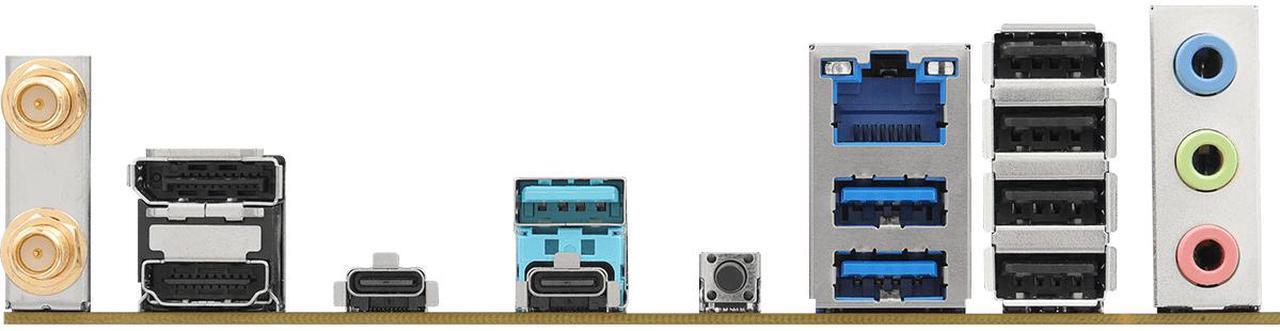

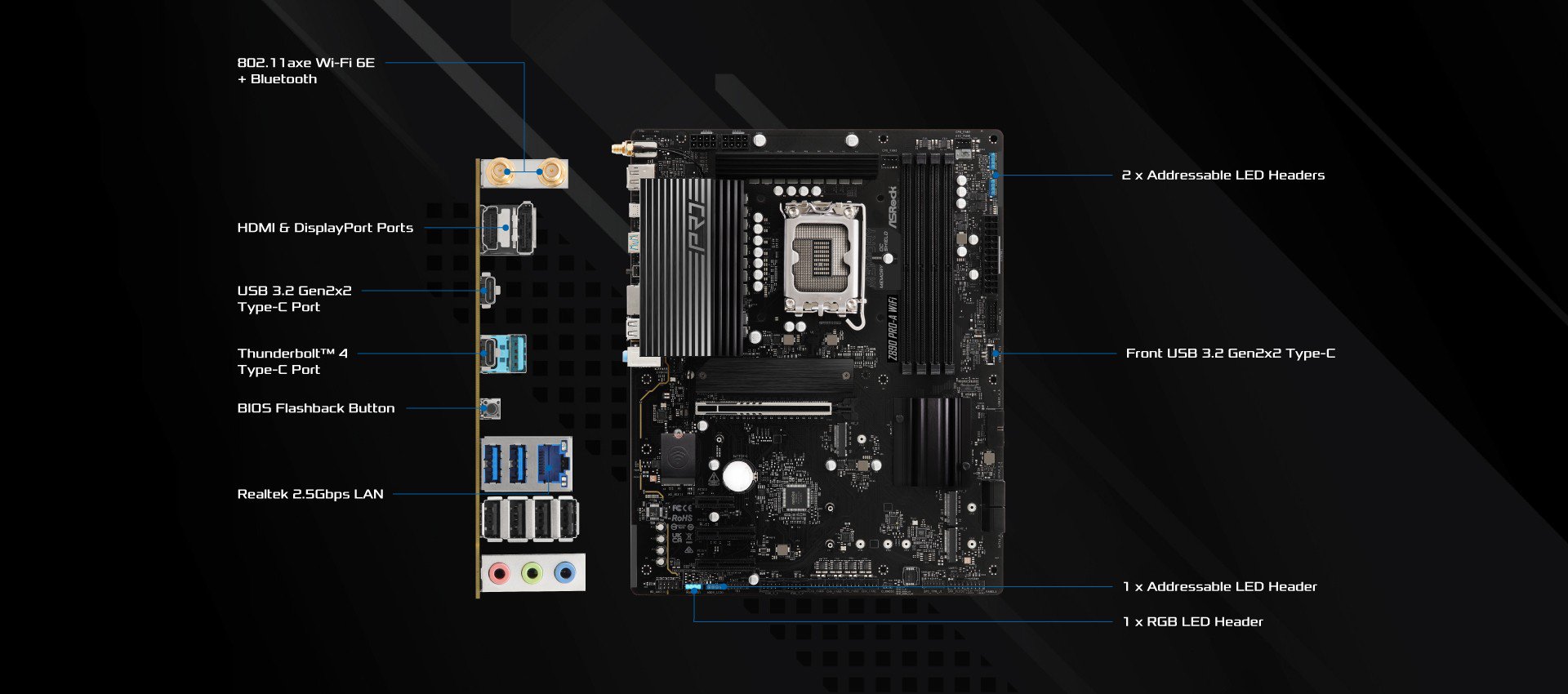

    Rear Panel Ports
    Back I/O Ports 2 x Antenna Ports
    1 x HDMI Port
    1 x DisplayPort 1.4
    1 x Thunderbolt 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
    1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    2 x USB 3.2 Gen1 Ports
    4 x USB 2.0 Ports
    1 x RJ-45 LAN Port
    1 x BIOS Flashback Button
    HD Audio Jacks: Line in / Front Speaker / Microphone
    * Supports USB PD 3.0 up to 5V@3A (15W) charging
    Internal I/O Connectors
    Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
    Other Connectors 1 x SPI TPM Header
    1 x Power LED and Speaker Header

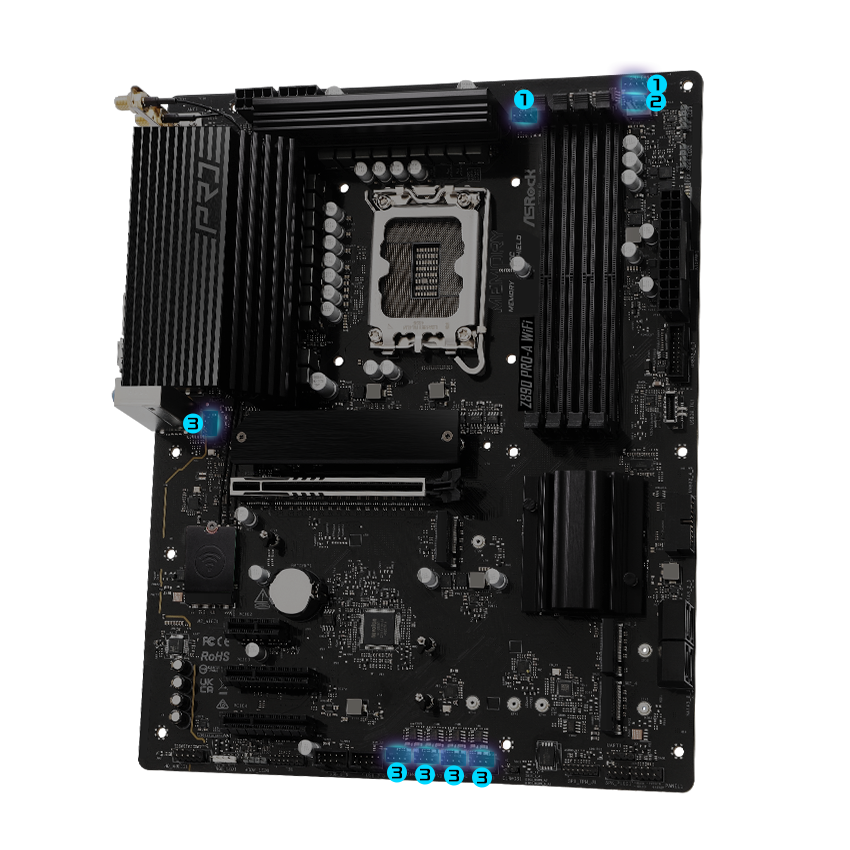

    1 x RGB LED Header*
    3 x Addressable LED Headers**

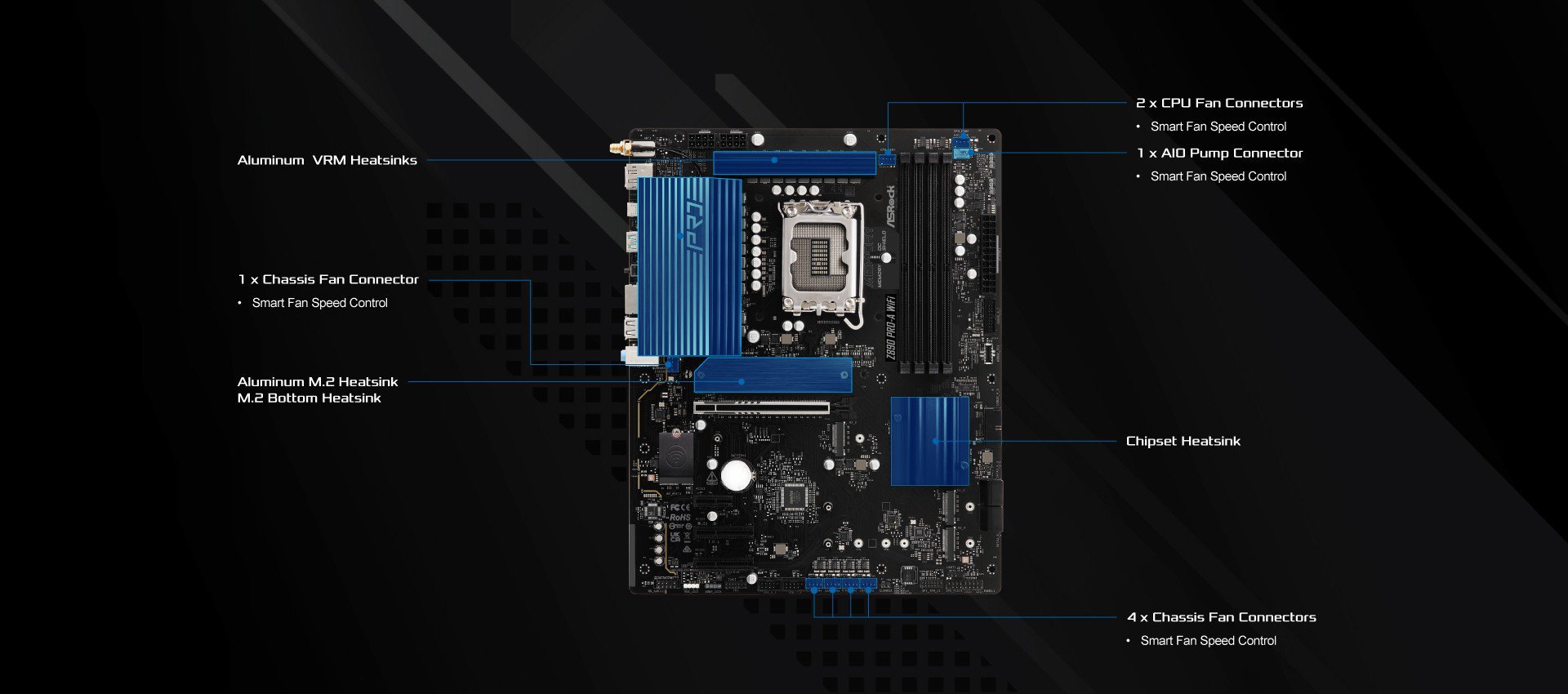

    2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
    5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
    1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    1 x Front Panel Audio Connector
    * Supports in total up to 12V/3A, 36W LED Strip
    ** Support in total up to 5V/3A, 15W LED Strip
    *** CPU_FAN1 supports the fan power up to 1A (12W).
    *** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
    *** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
    Software Feature
    BIOS Feature 256Mb AMI UEFI Legal BIOS with GUI support
    Software Software

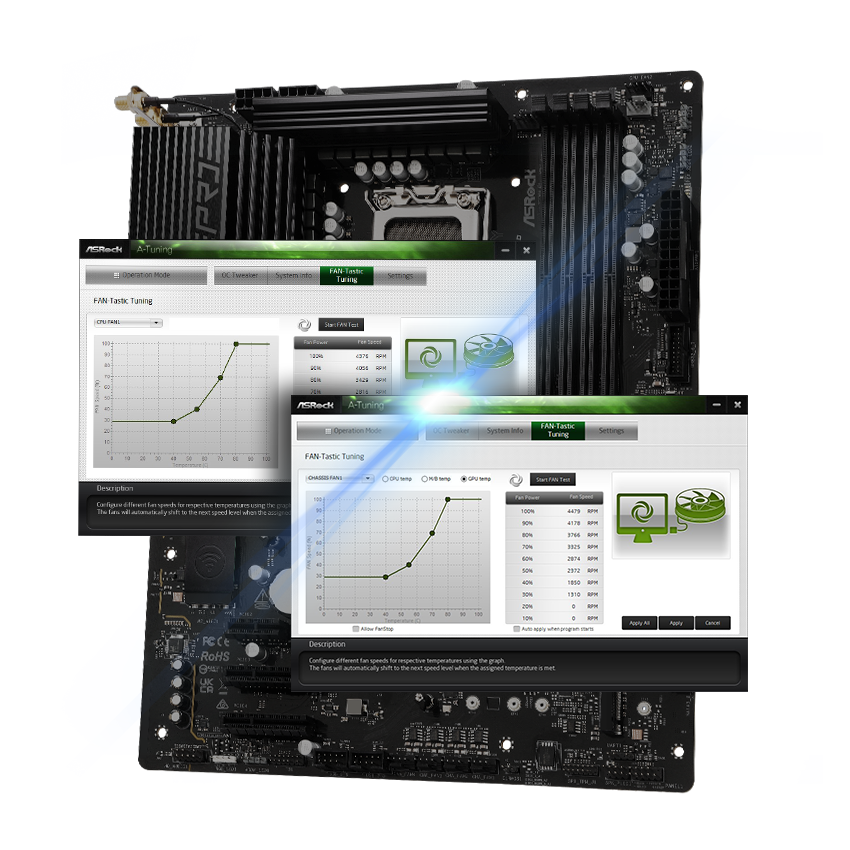

    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC
    * These utilities can be downloaded from ASRock Live Update & APP Shop.
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI

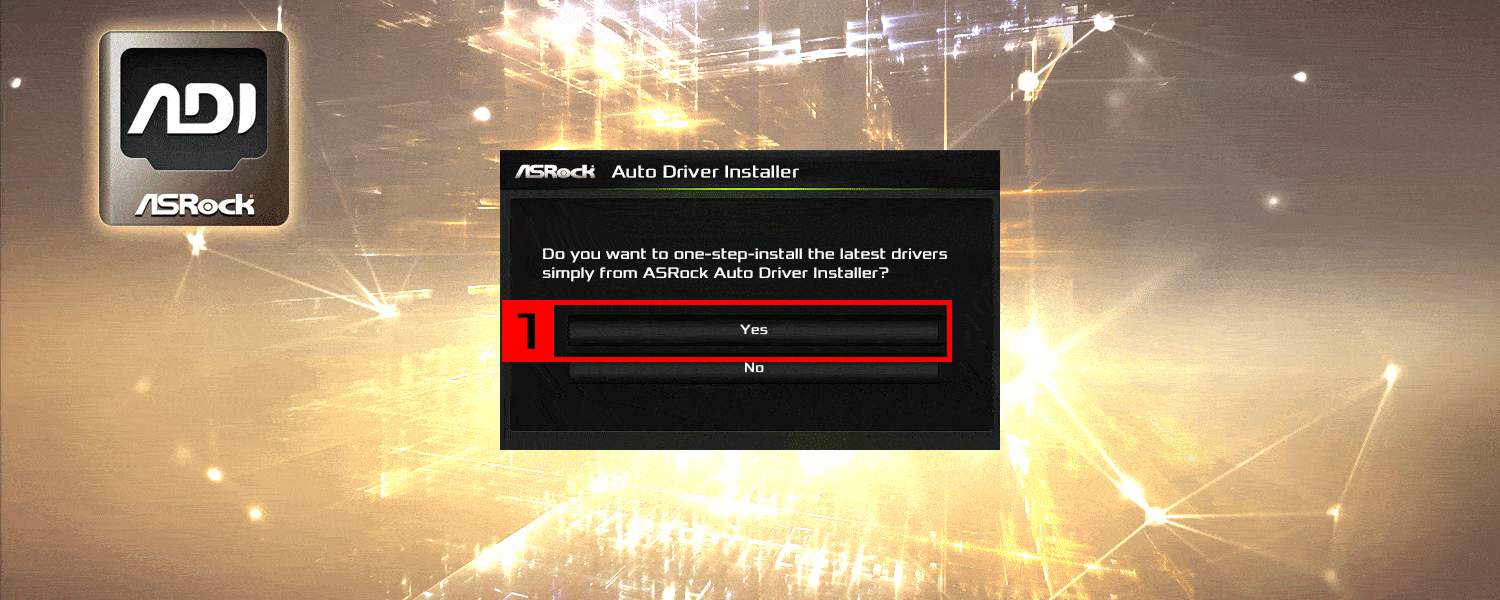

    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    Windows 11 Supported
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24 pin ATX Power Connector

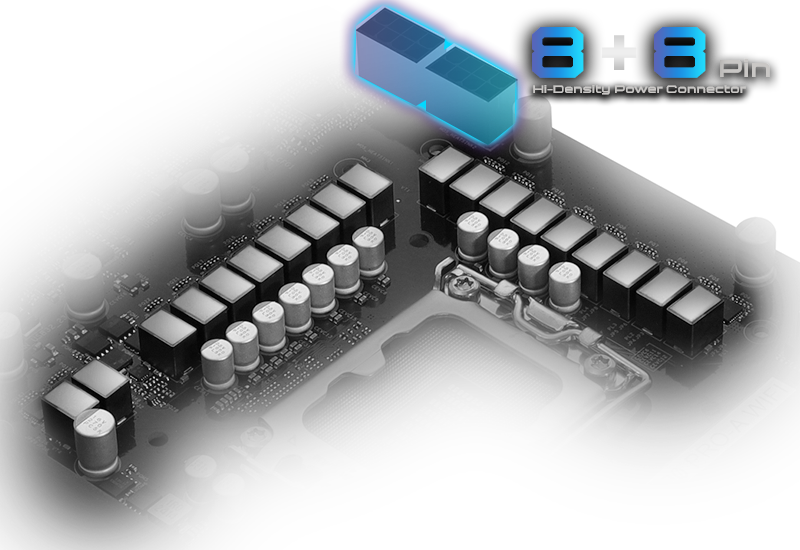

    2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

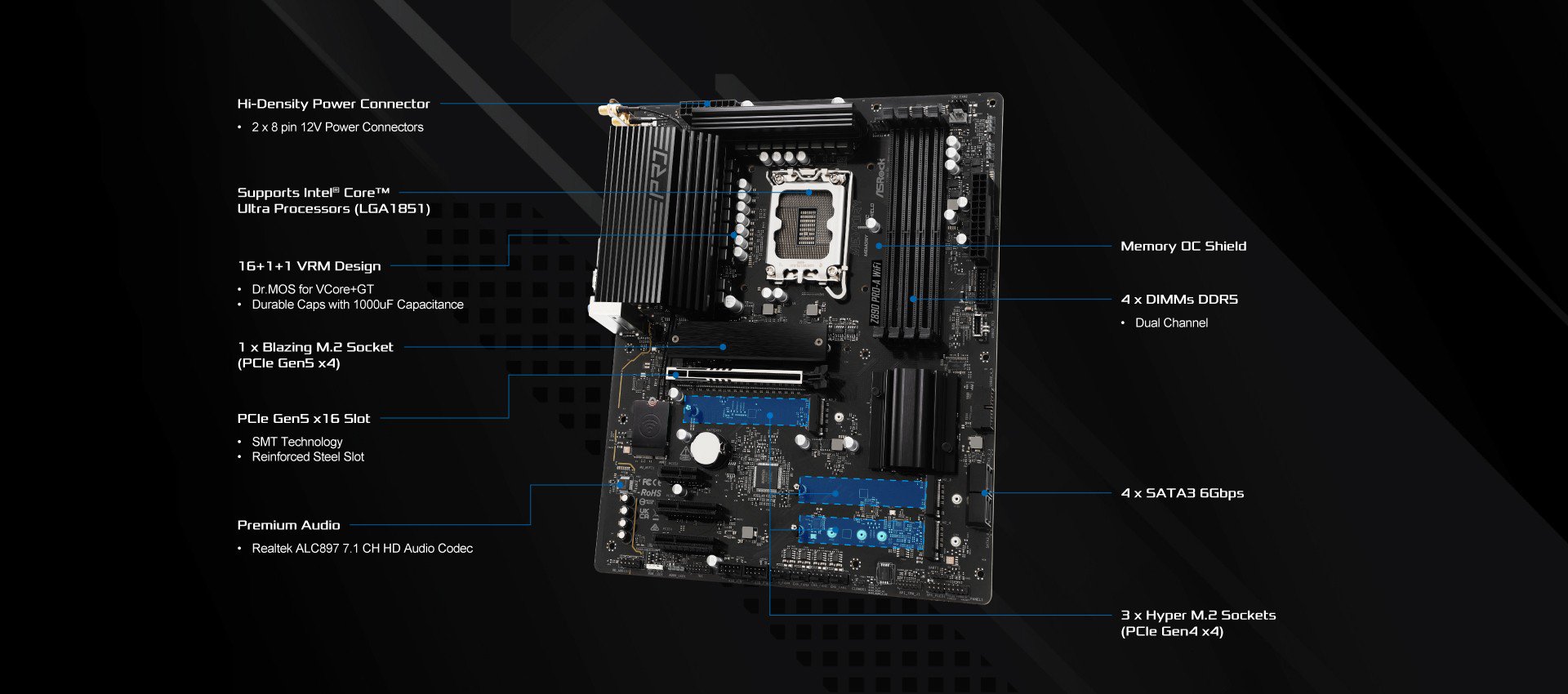

    Features
    Features Superb Productivity
    - PCIe Gen5 (Graphics, M.2)
    - Dual Channel DDR5
    - Thunderbolt 4 Type-C Port (40 Gb/s)
    Rock-Solid Durability
    - 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT

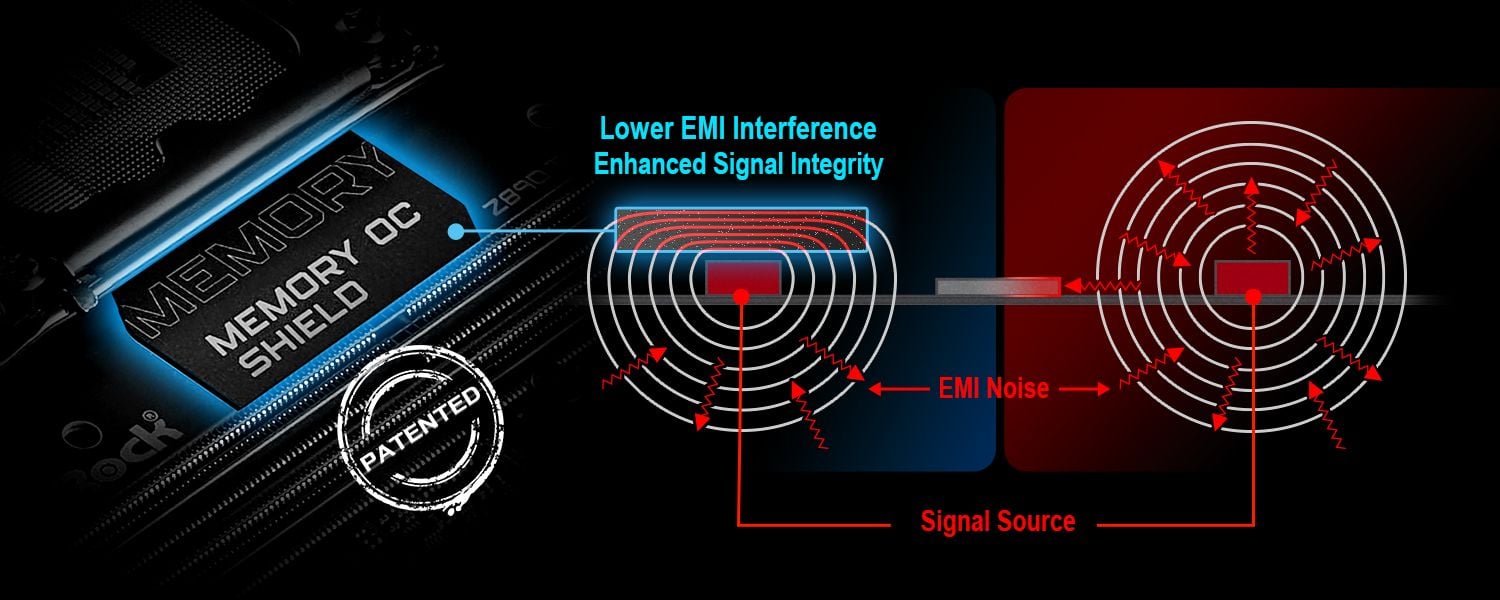

    - Memory OC Shield
    Ultrafast Connectivity
    - 2.5G LAN
    EZ Update
    - BIOS Flashback Button
    - ASRock Auto Driver Installer
    EZ Troubleshooter

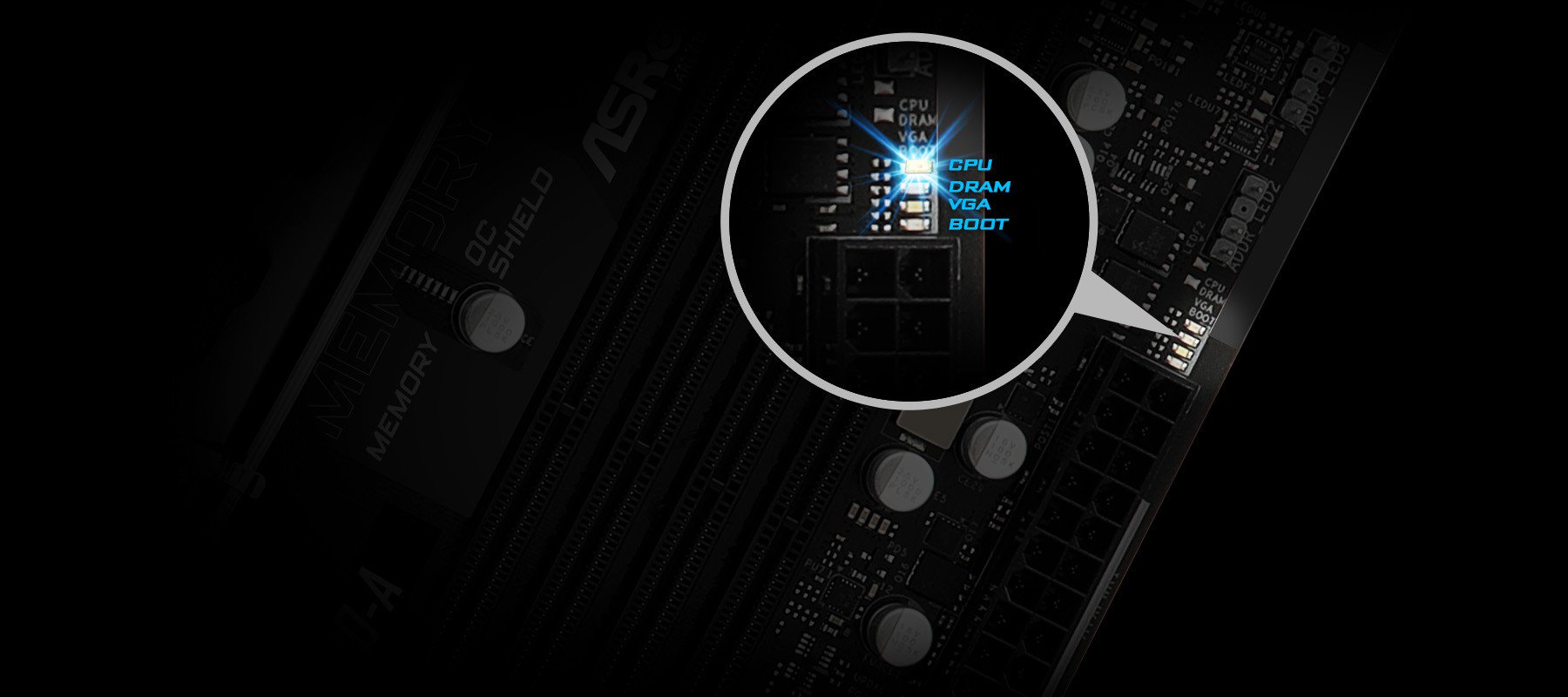

    - ASRock Post Status Checker
    Packaging
    Package Contents 1 x I/O Shield
    2 x SATA Data Cables
    2 x Screw for M.2 Socket
    Additional Information
    Date First Available October 10, 2024
