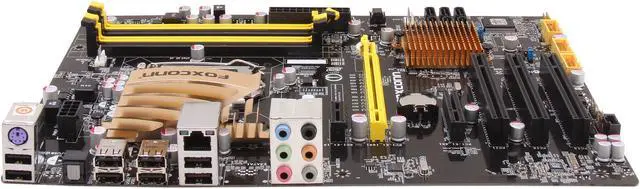

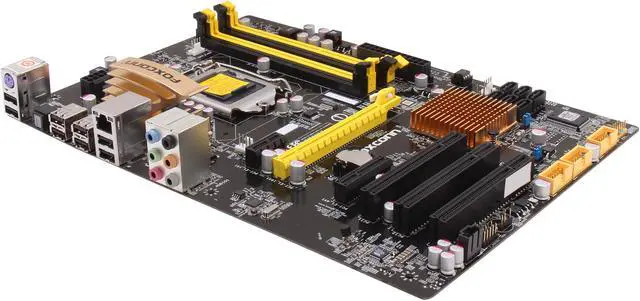

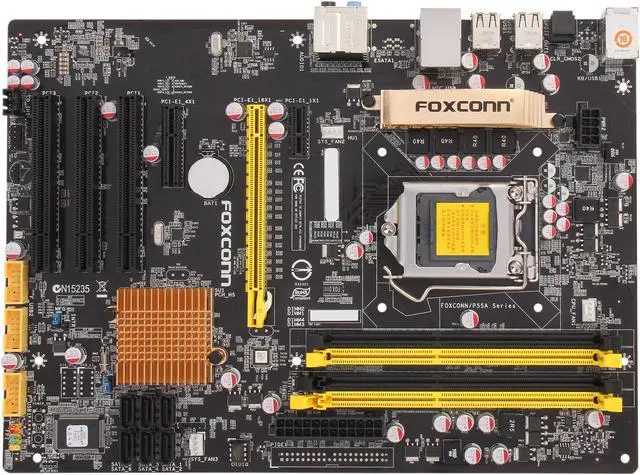

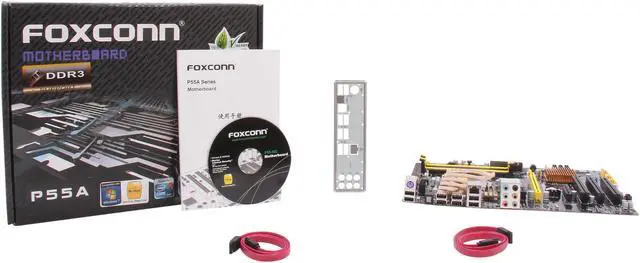

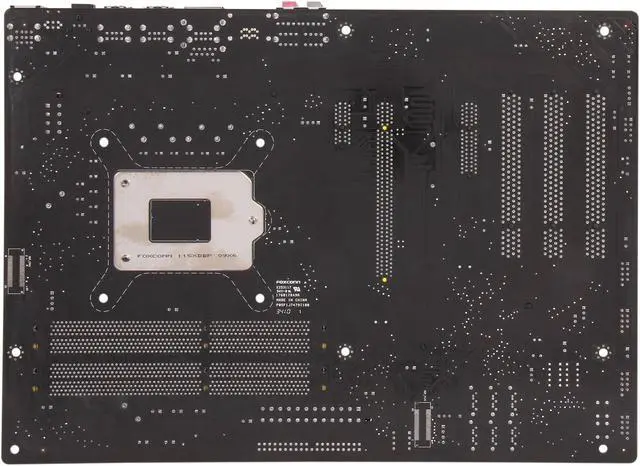

Foxconn P55A LGA 1156 Intel P55 ATX Intel Motherboard
- Intel P55
- Core i7 (LGA1156) / i5 (LGA1156)
- DDR3 1333/1066
Specs
Reviews (6)
Learn more about the Foxconn P55A
| Brand | Foxconn |
|---|---|
| Model | P55A |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Core i7 (LGA1156) / i5 (LGA1156) |
| Chipset | Intel P55 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5 |
| Audio Chipset | VIA VT1828S |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Broadcom BCM57780 |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 |
|---|---|
| USB 1.1/2.0 | 8 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB 2.0 connectors support additional 6 ports |
|---|---|
| Other Connectors | 1 x ATX 24-Pin power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin CPU FAN connectors 2 x 4-pin System FAN connectors 1 x Front pannel header 1 x Front Audio Header 1 x Intruder Alarm header 1 x S/PDIF Out header 1 x CD_IN connector 1 x IrDA header 1 x Speaker header |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.6" |
| Power Pin | 24 Pin |
| Features | Intel Core i7, Core i5 processors, Socket LGA1156 Supports Intel 45nm Hi-K CPU Dual channel DDR3 1333/1066 x 4 DIMMs, Max. 16GB 1* PCIe2.0 x16, 1* PCIe x4, 1* PCIe x1,3* PCI 6* SATA II 7.1 channel HDA Gigabit LAN 14 USB 2.0 ports |
|---|
| First Listed on Newegg | April 03, 2013 |
|---|
