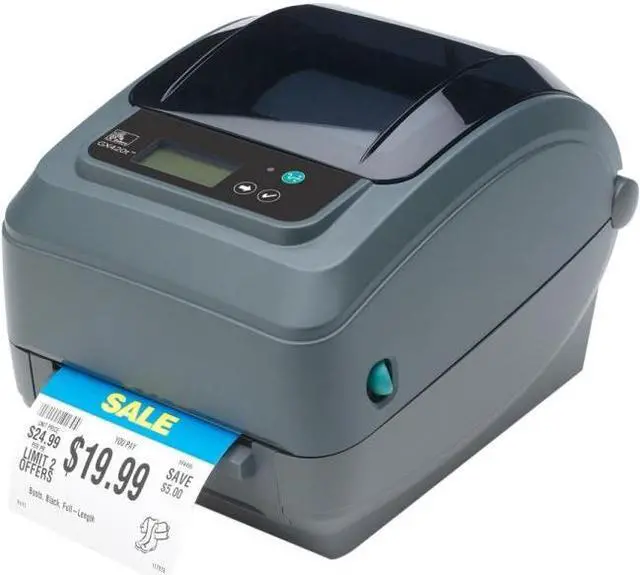

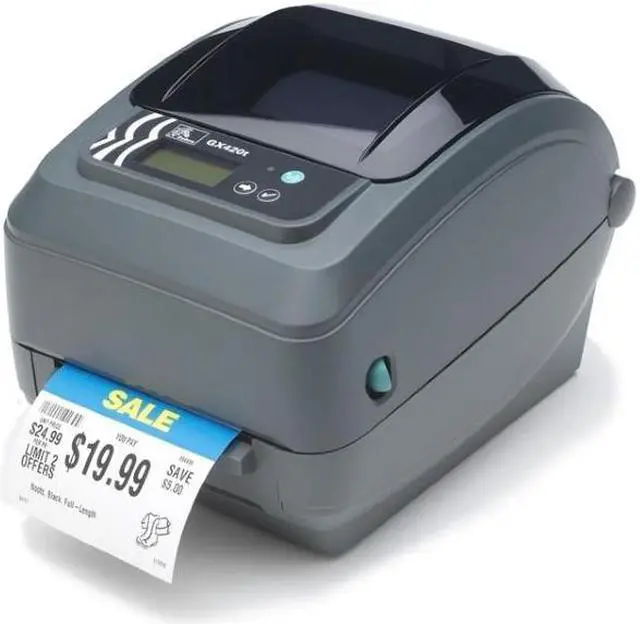

TT Printer GX420t; 203dpi, US Cord, EPL2, ZPL II, USB, Serial, Ethernet, Dispenser (Peeler), 64MB Flash, RTC, Adjustable black line sensor
+
+
Overview
Specs
Reviews
Zebra's versatile desktop label printers fit almost any low- to mid-volume printing application and budget. These thermal desktop printers are a smart investment.
Learn more about the Zebra GX420t (GX42-102411-150)
General
Brand
Zebra
Model
GX420t (GX42-102411-150)
Printer
Print Technology
Direct Thermal/Thermal Transfer Printer
Print Speed
Up to 6" (152 mm) per second
Max Resolution(B&W)
203 dpi (8 dots/mm)
Memory
Extended 64MB Flash, 8MB SDRAM
Barcode Type
Linear Codabar Code 11 Code 128 Code 128 with subsets A/B/C Code 39 Code 93 EAN-13 EAN-14 EAN-8 and EAN-13 with 2 or 5 digit extensions EAN-8 German Post Code Industrial 2-of-5 Interleaved 2-of-5 Japanese Postnet Logmars MSI MSI-3 Plessey Postnet RSS (reduced space symbology) Standard 2-of-5 UCC/EAN-128 UPC and EAN 2 or 5 digit extensions UPC-A UPC-A and UPC-E with 2 or 5 digit extensions UPC-A and UPC-E with EAN 2 or 5 digit extensions UPC-E 2-dimensional Aztec Codablock Code 49 Data Matrix MacroPDF417 MaxiCode MicroPDF417 PDF417 QR Code RSS / GS1 DataBar family (12 barcodes) Fonts and Graphics 16 resident expandable ZPL II bitmap fonts One resident scalable ZPL font Five resident expandable EPL2 bitmap fonts Supports user-defined fonts and graphics - including customer logos
Cutter
Yes
Ribbon Characteristics
Outside diameter: 1.34" (34 mm) Standard length: 244' (74 m) Ratio: 1:1 Ribbon width Recommended to be at least as wide as media 1.33" (33.8 mm) to 4.3" (110 mm) ID Core: 0.5" (12.7 mm)
Media Handling
Media Type
Black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock
Media sizes supported
Maximum label and liner width: 4.25" (108 mm) Minimum label and liner width: 0.75" (19 mm) Maximum label and liner length: 0.38" (9.7 mm) to 39" (991 mm) Maximum roll diameter: 5" (127 mm) Core diameter: 0.5" (12.7), 1.0" (25.4 mm), 1.5" (37.1 mm) Media thickness: 0.003" (0.08 mm) to 0.0075" (0.20 mm)
Media sensors: Reflective, Transmissive EPL and ZPL programming languages standard OpenACCESS design for easy media loading Quick and easy ribbon loading system Dual-wall reinforced plastic construction 32 bit RISC processor XML-enabled printing
Dimensions & Weight
Dimensions
7.50" x 7.60" x 10.00"
Weight
4.60 lbs.
Additional Information
First Listed on Newegg
May 11, 2023
