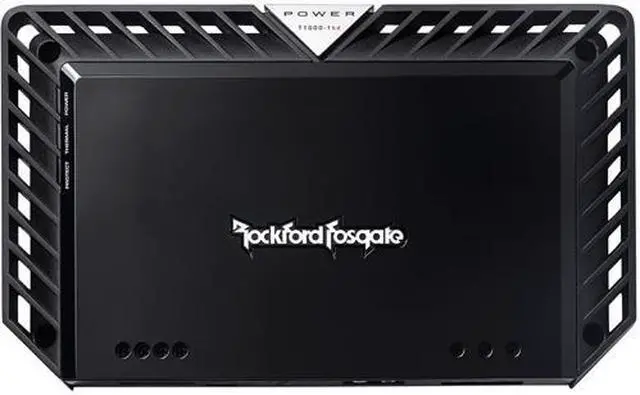

Rockford Fosgate 1000W Mono Constant Power Amplifier

Be the first to review this product...
  • Rockford Fosgate
  • Class BD
+
+
Specs
Reviews

Learn more about the Detailed Specifications

General
Brand Rockford Fosgate
Feature
Type Amplifiers
General
Amplifier Class Class BD
Amplifier Channels Mono
Power
Max Power 1000W
RMS Power 700W x 1 @ 4-Ohms

1000W x 1 @ 2-Ohms

1000W x 1 @ 1-Ohm
Specification
Frequency Response 20Hz - 250Hz
Crossover Frequency Range Low-Pass (LP): 35Hz-250Hz @ 24dB/octave Butterworth

Infrasonic: 12dB/octave Butterworth, -3dB @ 28Hz
Bass Boost Control Bass: 0dB to +18dB @ 45Hz
I/O Ports Signal Input Low level: 1 RCA pair

Signal Output Low Level: 1 RCA pair

Power Input Connector: 4 AWG Block

Speaker Output Connector: 8 AWG to 18 AWG Screw terminal barrier strip
Dimensions 2.14" x 8.14" x 13.66"
Feature
Features 24dB/octave crossover

4 Gauge power/ground terminals

Audiophile grade speaker connections

Infrasonic filter

MOSFET output stage

MOSFET power supply

RCA pass-thru

Efficiency (average): 85.6% @ 4-Ohm, 82.1% @ 2-Ohm, 70.0% @ 1-Ohm

Heat Sink Type: Cast aluminum

Cooling: Convection

Visual Indicators: Power (Blue LED), Thermal (Red LED), Protect (Yellow LED)
Additional Information
Date First Available April 18, 2023
