Connector Detail: Connector A: 1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B: 1 x DisplayPort (20 pin) Output
Specifications: Audio Specifications: 7.1 surround sound
Maximum Digital Resolutions: 3840x2160 @ 60 Hz
Supported Resolutions :
1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840x2160 (Ultra HD 4K)
Wide Screen Supported: Yes
Note:
Your USB-C equipped device must support video (DP Alt Mode) to work with this adapter.
Compatibility: OS Compatibility
Windows 10 (32-bit or 64-bit), 8.1 (32-bit or 64-bit), 7 (32-bit or 64-bit)
macOS X 10.10 (Yosemite), macOS 10.11 (El Capitan), macOS 10.12 (Sierra)
Ports Spec: 2 x DisplayPort Female
1 x Ethernet Gigabit Female
1 x USB Type-A (9 pin) USB 3.0 Male
Ports Spec: 1 x USB-C 5V/3A 5Gbps Port
1 x USB 3.0 2.1A Fast-Charging Port
1 x 3.5mm Combo Microphone & Headphone Jack
1 x USB-C Host Port (up to 60W PD)
1 x HDMI
1 x DisplayPort++
1 x Gigabit Ethernet
4 x USB 3.0 / 0.9A Ports
Ports Spec: Front:
1 x USB-A 3.1 port for USB-A peripherals
1 x USB-C 3.1 port for USB-C devices
SD card reader connects to SD cards without an adapter
Audio in/out for mic and speaker support
Back:
170W PSU (Power Supply Unit) powers the dock, and also charges the connected laptop up to 85W, to keep your laptop charged while you work
1 x Thunderbolt 3 port connects to laptop with the included Thunderbolt 3 cable
1 x Thunderbolt 3 port connects to high-resolution monitor/display and Thunderbolt 3/USB-C peripherals
DisplayPort connects to high-resolution monitor/display
1 x Gb Ethernet for reliable, hardwired Ethernet connection
4 x USB-A 3.0 ports for devices that connect via USB-A such as a mouse, keyboard or printer

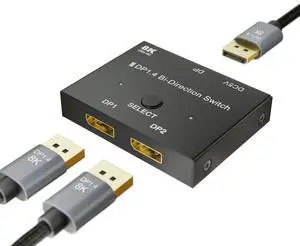

Specifications: Plug and Play: External power required, the DP switch selector box is easy to setup and operate, no need to set up and install any driver software. While using, press "Select" button to switch signal between two sources or displays, the indicator lights show the output or input port working status
Specifications: Chipset ID: ANALOGIX 9832
Converter Type: Active
Maximum Analog Resolutions: 1920 x 1200 / 1080p (Output)
Maximum Digital Resolutions: 1920 x 1200 / 1080p (Input)
