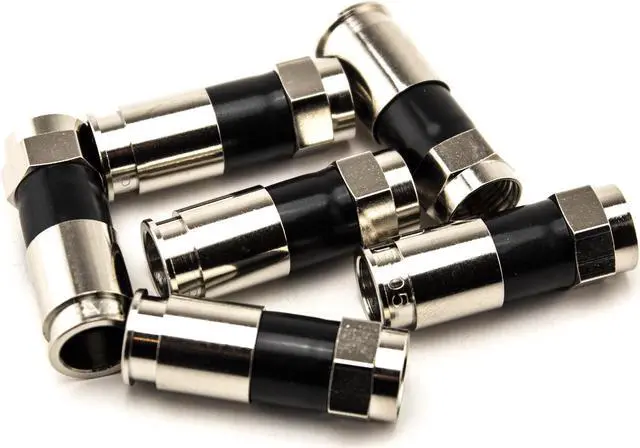

Lot of 1000 Ridgeloc 360 Universal (PV6UE-05) F-Type Compression Connectors RG6
- Commercial Grade F-type Compression Connectors
- Frequency Range 0 to 3 GHz
- 360 true radial compression
- Return Loss -25dB @ 1 GHz typical
- Compatible with any 21mm standard compression tool (B0040ZBUN2 recommended)
+
+
Overview
Specs
Reviews
The RIDGELOC 360 Universal Compression RG6 Connector from Perfect Vision fits any standard quad-shield, tri-shield or dual shield RG-6 75 Ohm coax cable. It is suitable for indoor and outdoor applications and is tested to SCTE standards and weatherproof for hostile outdoor environments. Precision Machined Body With Mil Spec Plating Patented Compression Ridges Lock In For A Fool Proof Installation Every Time Compatible with ANY standard compression tool Passed stringent moisture migration testing Dimpled Grip Weather Tight Seal Patented RIDGELOC 360 Compression Locks In for a Superior Fool Proof Install Every Time End Bell cannot back up. Locks coax cable securely and positively in place . Bandwidth - 2 Mhz to 3 Ghz Impedance - 75 Ohms nominal Shielding Effectiveness - better than -90dB DIRECTV Approved
