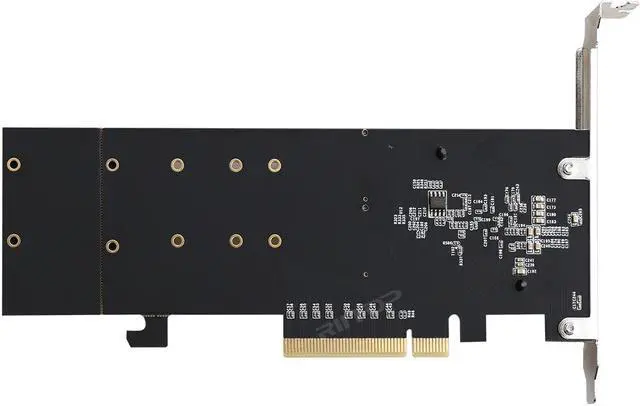

Dual NVMe PCIe Adapter, RIITOP (2 Ports) M.2 NVMe SSD to PCI-e Express 3.1 x8 Expansion Add-on Card
Limited time offer, ends 12/29 By RIITOP
- Dual M.2 NVMe PCIe Adapter Card
- 2 Ports NVMe to PCI-e Express 3.1 x8 Expansion Card
- Upgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter, It lets you add two high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe) into the PCIe 8-lane or lager slot of your desktop workstation or server
- Install 2 PCIe 3.0 M.2 SSDs (NVMe) into your workstation or server for read/write speeds up to 3.5GB/s and 3.2GB/s for single drive
- Wide installation compatibility, with support for virtually all M.2 NGFF drives (22110, 2280, 2260, 2242, 2230)
- M.2 PCI Express adapter lets you use SSDs individually or in a storage pool using OS or 3rd party RAID software & supports RAID 0, 1, JBOD for tiered/hybrid storage
+
+
Overview
Specs
Reviews
Note:
1. Support NVMe SSD (PCIe, M Key) only.
2. Compatible with PCI-e Express 3.0 x8 / x16 Slot.(if add on pcie 2.0 or 1.0 slot, the speed will be lower)
Description:
Upgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter. It lets you add two high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe) into the PCIe 8-lane or lager slot of your desktop workstation or server.
Features:
Install 2 PCIe 3.0 M.2 SSDs (NVMe) into your workstation or server for read/write speeds up to 3.5GB/s and 3.2GB/s for single drive.
Wide installation compatibility, with support for virtually all M.2 NGFF drives (22110, 2280, 2260, 2242, 2230).
Two M.2 NGFF type M Key socket on board.
Adjustable stand-offs, and multiple mounting holes support 80mm, 60mm, 42mm, and 30mm SSDs.
Fast, hassle-free setup with native support on most operating systems.
Compliant with PCI Express 3.0 standards.
M.2 PCI Express adapter lets you use SSDs individually or in a storage pool using OS or 3rd party RAID software & supports RAID 0, 1, JBOD for tiered/hybrid storage.
Equipped with full-profile bracket, includes a low-profile (half-height bracket) for installation in small-factor computers.
Installs into x8, or x16 PCIe slots.
Specifications:
Bus Type: PCI Express.
Card Type: Standard/Low Profile.
Chipset ID:ASMedia ASM2812.
Compatible Drive Types: NVMe SSD (PCIe, M-Key).
Drive Installation: Fixed.
Interface: PCI Express x8 (compatible with x8 or x16).
Number of Drives: 2.
Bootable: Yes.
Hot Swap Capability: No.
Type and Rate: PCI Express 3.0 (8Gbps).
Drive Connectors: 2 M.2 (PCIe, M-Key, NVMe, NGFF).
Host Connectors: 1 PCI Express x8 Male.
OS Compatibility: OS independent; No software or drives required.
Special Notes / Requirements: System and Cable Requirements PCI Express enabled.
Computer with an available PCI Express: x8 or x16 slot.
Environmental Humidity: 20~80% RH.
Operating Temperature: 5°C to 50°C (41°F to 122°F).
Storage Temperature: -25°C to 70°C (-13°F to 158°F).
Demensions: 120x195x22 mm.
Product Weight 76g / 0.16 lb.
Package Contents:
1x PCI Express x8 to Dual M.2 PCIe NVMe SSD Adapter Card.
1. Support NVMe SSD (PCIe, M Key) only.
2. Compatible with PCI-e Express 3.0 x8 / x16 Slot.(if add on pcie 2.0 or 1.0 slot, the speed will be lower)
Description:
Upgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter. It lets you add two high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe) into the PCIe 8-lane or lager slot of your desktop workstation or server.
Features:
Install 2 PCIe 3.0 M.2 SSDs (NVMe) into your workstation or server for read/write speeds up to 3.5GB/s and 3.2GB/s for single drive.
Wide installation compatibility, with support for virtually all M.2 NGFF drives (22110, 2280, 2260, 2242, 2230).
Two M.2 NGFF type M Key socket on board.
Adjustable stand-offs, and multiple mounting holes support 80mm, 60mm, 42mm, and 30mm SSDs.
Fast, hassle-free setup with native support on most operating systems.
Compliant with PCI Express 3.0 standards.
M.2 PCI Express adapter lets you use SSDs individually or in a storage pool using OS or 3rd party RAID software & supports RAID 0, 1, JBOD for tiered/hybrid storage.
Equipped with full-profile bracket, includes a low-profile (half-height bracket) for installation in small-factor computers.
Installs into x8, or x16 PCIe slots.
Specifications:
Bus Type: PCI Express.
Card Type: Standard/Low Profile.
Chipset ID:ASMedia ASM2812.
Compatible Drive Types: NVMe SSD (PCIe, M-Key).
Drive Installation: Fixed.
Interface: PCI Express x8 (compatible with x8 or x16).
Number of Drives: 2.
Bootable: Yes.
Hot Swap Capability: No.
Type and Rate: PCI Express 3.0 (8Gbps).
Drive Connectors: 2 M.2 (PCIe, M-Key, NVMe, NGFF).
Host Connectors: 1 PCI Express x8 Male.
OS Compatibility: OS independent; No software or drives required.
Special Notes / Requirements: System and Cable Requirements PCI Express enabled.
Computer with an available PCI Express: x8 or x16 slot.
Environmental Humidity: 20~80% RH.
Operating Temperature: 5°C to 50°C (41°F to 122°F).
Storage Temperature: -25°C to 70°C (-13°F to 158°F).
Demensions: 120x195x22 mm.
Product Weight 76g / 0.16 lb.
Package Contents:
1x PCI Express x8 to Dual M.2 PCIe NVMe SSD Adapter Card.
