NVMe PCIe Adapter Card, RIITOP PCIe M.2 SSD NVMe AHCI to PCIe Gen 3.0 x4 x8 x16 Full Speed Converter Card for Desktop PC, Support (M Key) M.2 SSD 2280/2260/2242/2230 mm
Limited time offer, ends 12/22 By RIITOP
- M.2 NVMe PCIe Adapter Card
- M Key M.2 PCIe SSD to PCIe Gen 3.0 x4 x8 x16 Full Speed Converter Adapter Card
- For Desktop PC PCI Express Slot (x4 or above)
- Support M.2 SSDs (PCIe NVMe): 80x22mm, 60x22mm and 42x22mm
- NOT support any B Key / B+M Key SATA based SSD, please NOTE!
- If add in PCI-e 2.0 slot, the transfer speed will be 16Gbps, please note that!
- Please download driver of SSD from the brand official website if "Disk Management" or "Device Management" can not show the SSD.
- Old MB can not support Booting from "NVMe", Please confirm the MB's specification.
Overview
Specs
Reviews
Please NOTE:

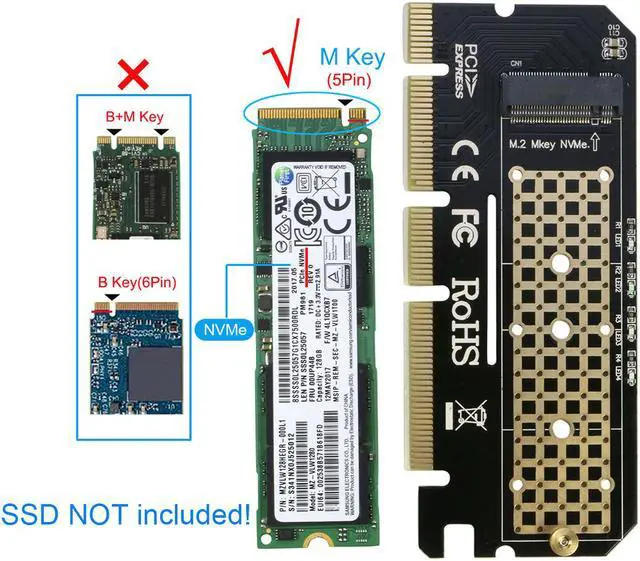

1. This M. 2 PCIe adapter can Only Support M. 2 PCI-e Based M Key Nvme SSD, DO NOT support PCI-e M Key AHCI SSD, SATA based B+M key or B Key SSD.
2. Please download driver of SSD from the brand official website if "Disk Management" or "Device Management" can not show the SSD.
3. Old MB can not support Booting from "NVMe", Please confirm the MB's specification.
4. Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only, Win7 and Windows Server 2008 R2 are NOT compatible with NVMe SSD. So please check the hareware and OS first.
5. If add in PCI-e 2.0 slot, the transfer speed will be 16Gbps, please note that!

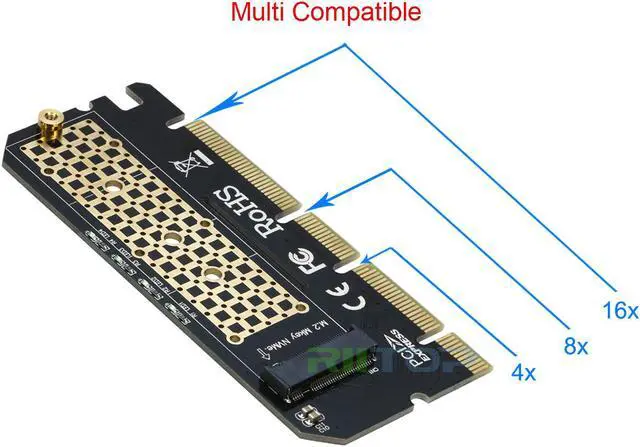

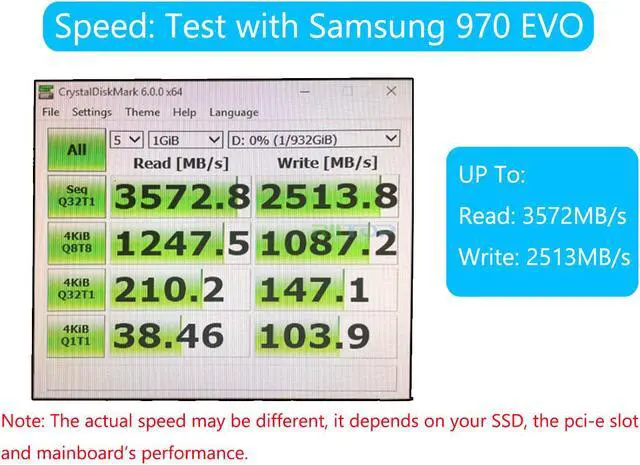

Features: Converts one M. 2 (M Key) NVMe/AHCI interface to PCIe 3.0 x4/x8/x16 interface. Supports PCIe M. 2 SSD (NVMe, Key-M), PCIE 3.0 x4 32 Gbps bandwidth. Support TRIM and UASP. PCIE x4/x8x16 lane installation. Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard. ( If add in PCI-e 2.0 slot, the transfer speed will be 16Gbps, please note that! ) Compatible with Windows/MAC/Linux, no driver required.
(Note: Win7 and Windows Server 2008 R2 are NOT compatible with NVME SSD).
Operating temperature range: -40 - 85 oC.
PCIE power supply: 3.3V.

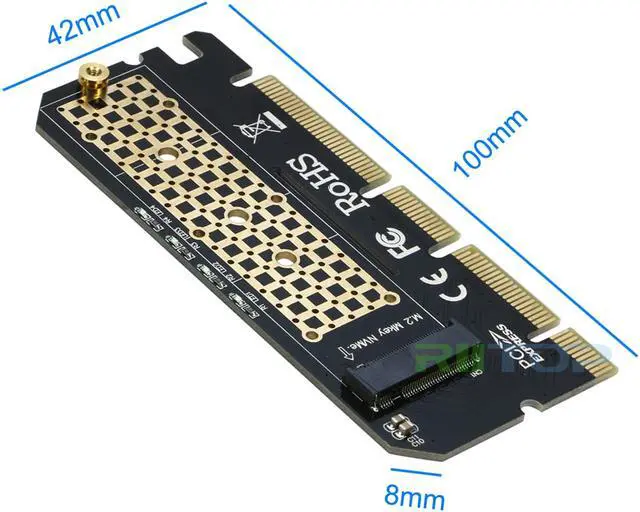

Dimension: 100.0 (L) x 43.0 (W) x 10.0 (H) mm / 3.93 x 1.65 x 0.39 in.
Compatibility with: Apply to 2280/2260/2242 / 2230mm M. 2 PCI-e NVMe SSD (Not supported SATA-based M. 2 SSD).
PCIe NVMe/AHCI SSD (Incomplete List): Samsung XP941, SM951 (NVMe), 950 Pro Series SSDs, PM961, 960EVO, SM961, PM951, 960EVO. INTEL 600P. Liteon T10. Kingston HyperX Predator M. 2. Plextor M6e Series M. 2 SSD.
Hardware Requirement: 1x PCI-e 3.0 / 2.0 / 1.0 4x/8x/16x Slot. Installation of
RIITOP NVMe PCI-e Adapter:

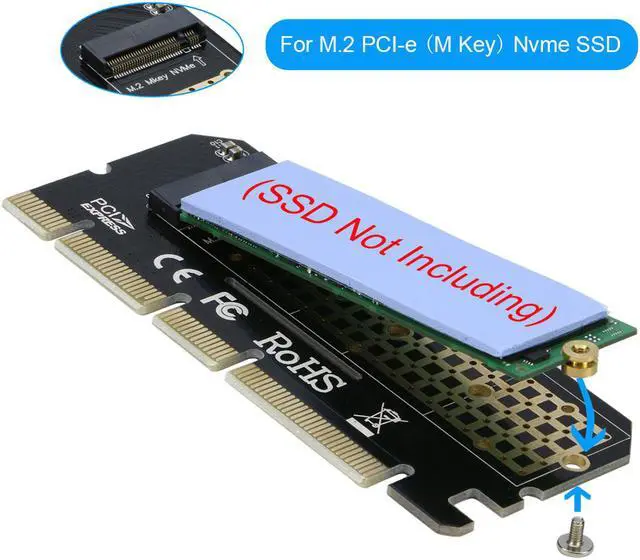

1. Select the right thickness Silicone Thermal Pad to ensure there is no space between SSD and the Heatsink.
2. Remove the layer of protection on Silicone Thermal Pad, then Paste it on your NVMe SSD
3. Fixed the SSD with screw.
Package Including: 1x PCIe M. 2 NVMe Adapter Card. 1x Screwdriver. Silicone pads. Spare Screws.
1. This M. 2 PCIe adapter can Only Support M. 2 PCI-e Based M Key Nvme SSD, DO NOT support PCI-e M Key AHCI SSD, SATA based B+M key or B Key SSD.
2. Please download driver of SSD from the brand official website if "Disk Management" or "Device Management" can not show the SSD.
3. Old MB can not support Booting from "NVMe", Please confirm the MB's specification.
4. Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only, Win7 and Windows Server 2008 R2 are NOT compatible with NVMe SSD. So please check the hareware and OS first.
5. If add in PCI-e 2.0 slot, the transfer speed will be 16Gbps, please note that!
Features: Converts one M. 2 (M Key) NVMe/AHCI interface to PCIe 3.0 x4/x8/x16 interface. Supports PCIe M. 2 SSD (NVMe, Key-M), PCIE 3.0 x4 32 Gbps bandwidth. Support TRIM and UASP. PCIE x4/x8x16 lane installation. Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard. ( If add in PCI-e 2.0 slot, the transfer speed will be 16Gbps, please note that! ) Compatible with Windows/MAC/Linux, no driver required.
(Note: Win7 and Windows Server 2008 R2 are NOT compatible with NVME SSD).
Operating temperature range: -40 - 85 oC.
PCIE power supply: 3.3V.
Dimension: 100.0 (L) x 43.0 (W) x 10.0 (H) mm / 3.93 x 1.65 x 0.39 in.
Compatibility with: Apply to 2280/2260/2242 / 2230mm M. 2 PCI-e NVMe SSD (Not supported SATA-based M. 2 SSD).
PCIe NVMe/AHCI SSD (Incomplete List): Samsung XP941, SM951 (NVMe), 950 Pro Series SSDs, PM961, 960EVO, SM961, PM951, 960EVO. INTEL 600P. Liteon T10. Kingston HyperX Predator M. 2. Plextor M6e Series M. 2 SSD.
Hardware Requirement: 1x PCI-e 3.0 / 2.0 / 1.0 4x/8x/16x Slot. Installation of
RIITOP NVMe PCI-e Adapter:
1. Select the right thickness Silicone Thermal Pad to ensure there is no space between SSD and the Heatsink.
2. Remove the layer of protection on Silicone Thermal Pad, then Paste it on your NVMe SSD
3. Fixed the SSD with screw.
Package Including: 1x PCIe M. 2 NVMe Adapter Card. 1x Screwdriver. Silicone pads. Spare Screws.
