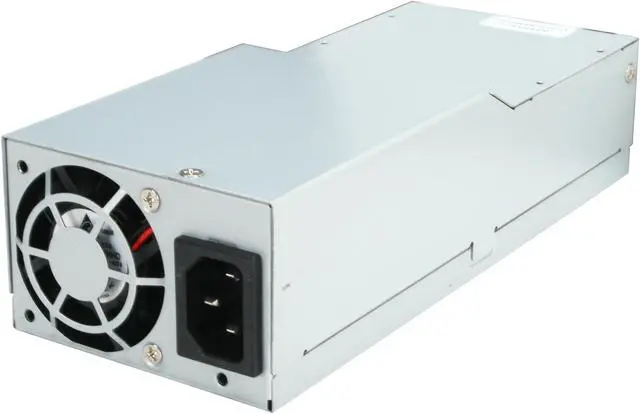

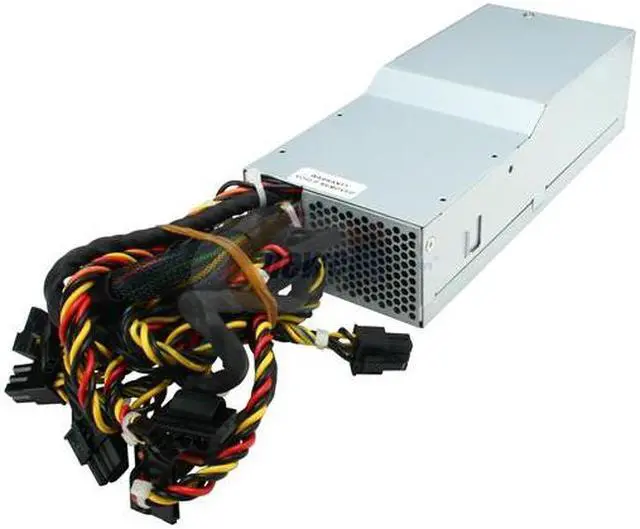

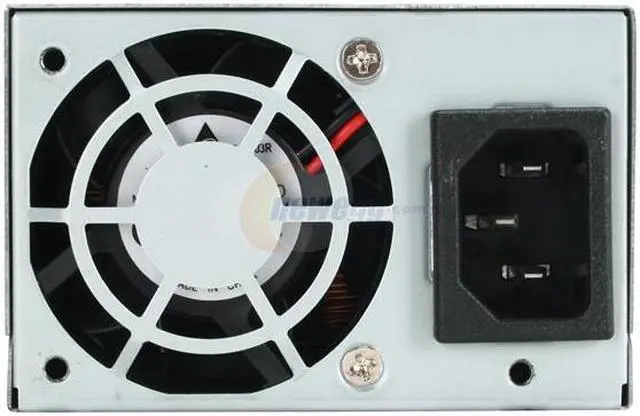

Learn more about the Shuttle Computer PC63
| Brand | Shuttle |
|---|---|
| Model | PC63 |

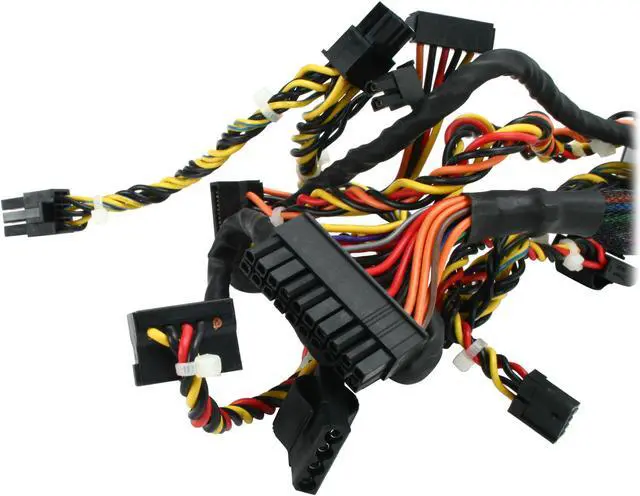

| Specifications | Output wattage: Total combined output is 500W max. Total combined output of 3.3V and 5V is 130W max. Active PFC circuit (Power Factor Correction) Input Voltage/Frequency range: 100~240V AC, 50/60Hz (90~264V AC, 47~63 Hz) Input current: max. 8A/4A for 115V/230V AC during normal operating Inrush current: 60A/90A for 115V/230V AC DC voltage output, max. output current: +12V1: 16A +12V2: 16A +12V3: 17A +5VSB: 2.5A (Standby) -12V: 0.3A +3.3V: 18A +5V: 16A Power Connectors: 1x ATX power 20 pins 1x ATX 12V power 4+4 pins *) 1x PCIe power 6 pins 1x PCIe power 6+2 pins 3x Serial ATA power 2x Molex power 1x Floppy power Output voltage timing: Hold up time: >17ms at full load at 115V AC Rise time: <20ms at full load, nominal line Protection: Short circuit protection (SCP) - Latch off Overpower (overload) protection (OPP) Overcurrent protection (OCP) Overtemperature protection (OTP) Overvoltage protection (OVP) Undervoltage protection (UVP) Efficiency: 80PLUS Bronze compliant The PSU provides at least 82/85/82% efficiency at 20/50/100% load. Certification: EMI/RFI: FCC class B, CE, BSMI, CCC Safety: cUL, TÜV, CB, BSMI, CCC Timing, housekeeping and control conform Intel ATX12V Specific Guidelines 2.3 Mean Time Between Failures (MTBF) > 100.000 hours at 75% load, 25°C Temperature: Operating temperature: +10°C ~ +50°C Storage temperature: -40°C ~ +70°C Noise: <30dB at 50cm for 200W load Ball bearing fan with thermal Fan-speed control Dimensions: 200 x 82 x 53 mm (LWH) Weight: net weight: 1.1 kg, gross weight: 1.2 kg Compatibility: Supported Shuttle XPC models: H series e.g. SN78SH7, SG45H7, SP45H7 and SX58H7 Cable lengths designed for the Shuttle XPC. |
|---|
| Date First Available | January 29, 2010 |
|---|
