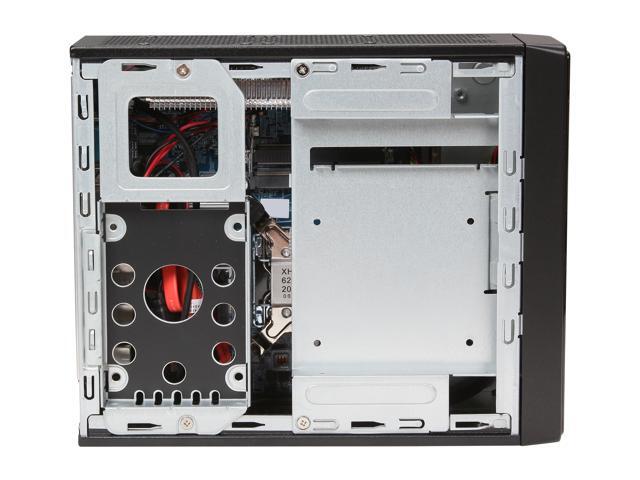

Shuttle XH61V Intel Socket H2(LGA1155) Intel H61 1 x HDMI Barebone
- Intel Core i3 / i5 / i7 / Pentium / CeleronIntel Core i7 / i5 / i3 / Pentium (LGA1155) Intel Socket H2(LGA1155)
- Intel H61
- 2 x 204Pin SO-DIMM DDR3 1066/1333/1600
- none
Specs
Reviews (19)
Learn more about the Shuttle Computer XH61V
| Brand | Shuttle |
|---|---|
| Model | XH61V |
| Color | Black |
| CPU Type | Intel Core i3 / i5 / i7 / Pentium / CeleronIntel Core i7 / i5 / i3 / Pentium (LGA1155) |
|---|---|
| CPU Socket | Intel Socket H2(LGA1155) |
| North Bridge | Intel H61 |
|---|
| Memory slot | 2 x 204Pin SO-DIMM |
|---|---|
| Memory Type Supported | DDR3 1066/1333/1600 |
| Max Memory Supported | 16GB |
| Dual Channel Memory Supported | Yes |
| Other | 2 x Mini PCI Express |
|---|
| Serial ATA | 3 x SATA 1.5Gb/s |
|---|
| Onboard Video | none |
|---|
| Onboard Audio | Realtek ALC662 |
|---|---|
| Channel | 5.1-CH |
| First LAN | Realtek 8111E(10/100/1000Mbps) |
|---|---|
| Second LAN | 10/100/1000 LAN |
| Max LAN Speed | 10/100/1000Mbps |
| 2.5" Internal bays | 2 |
|---|
| Front USB | 2 x USB 2.0 ports |
|---|---|
| Front Audio Ports | Microphone input Audio Line-out (headphone) |
| PS/2 | 2 |
|---|---|
| VGA | 1 x DVI |
| HDMI | 1 x HDMI |
| Rear USB | 2 x USB 3.0 2 x USB 2.0 |
| RJ45 | 2 |
| Rear S/PDIF Out | Yes |
| Rear Audio Ports | Audio Line-in Audio Line-out Audio Mic-in |
| Other Rear Ports | 2x RS232 serial ports (5V/12V, 1x switchable to RS422 / RS485) Perforation for Wireless LAN antennas (2 holes) Hole for Kensington Lock |
| Power Supply | 90W |
|---|
| Dimensions | 9.45" x 7.87" x 2.83" |
|---|---|
| Weight | 4.85 lbs. |
| Features | HDMI interface Digital monitor output The fastest connection to external peripheral devices available to date Crystal-clear audio transmission Anti-theft protection Cleverly hidden Fan-less external power supply Generous supply of USB ports Communication in the fast lane Pre-assembled cabling saves time Just 2.5" HDDs You can rely on SSD |
|---|
| Date First Available | December 13, 2012 |
|---|
