SICK IM18-08NCP-ZW1 Cylindrical thread design PNP / NPN New

Features
Housing Cylindrical thread design
Housing Standard
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 8 mm
Safe sensing range Sa 6.48 mm
Installation type Non-flush
Switching frequency 300 Hz
Connection type Cable, 4-wire, 2 m
Switching output PNP / NPN
Output function NC / NO

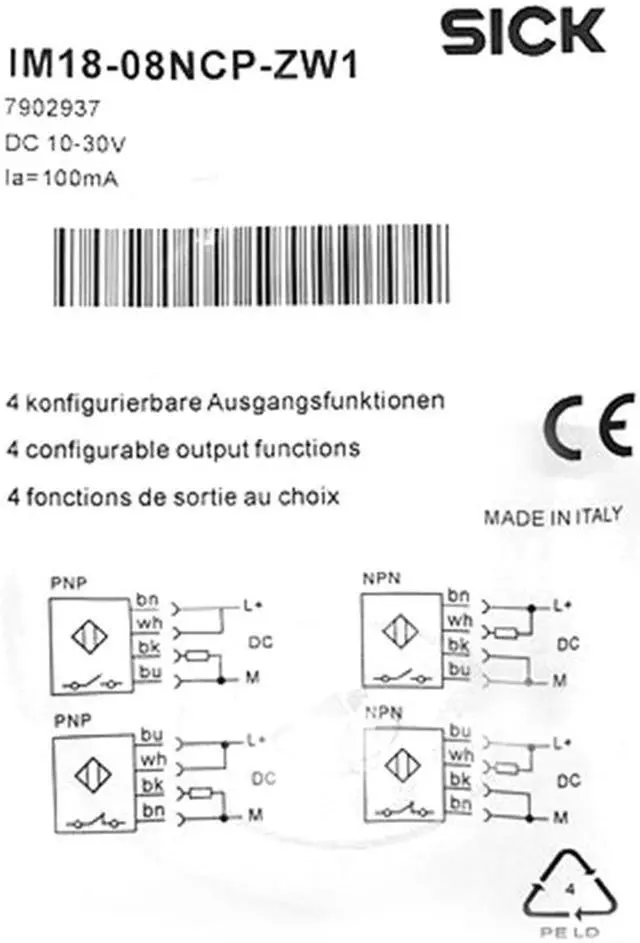

Output characteristic Wire configurable
Electrical wiring DC 4-wire
Enclosure rating IP67 1)
1) According to EN 60529.
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Voltage drop = 1.2 V 1)
Current consumption 30 mA 2)
Time delay before availability = 200 ms
Hysteresis 2 % ... 10 %
Reproducibility = 5 % 3) 4)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 100 mA
Cable material PVC
Conductor size 0.34 mm²
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +70 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, Plastic
Housing length 60 mm
Thread length 37 mm
Tightening torque, max. = 40 Nm
