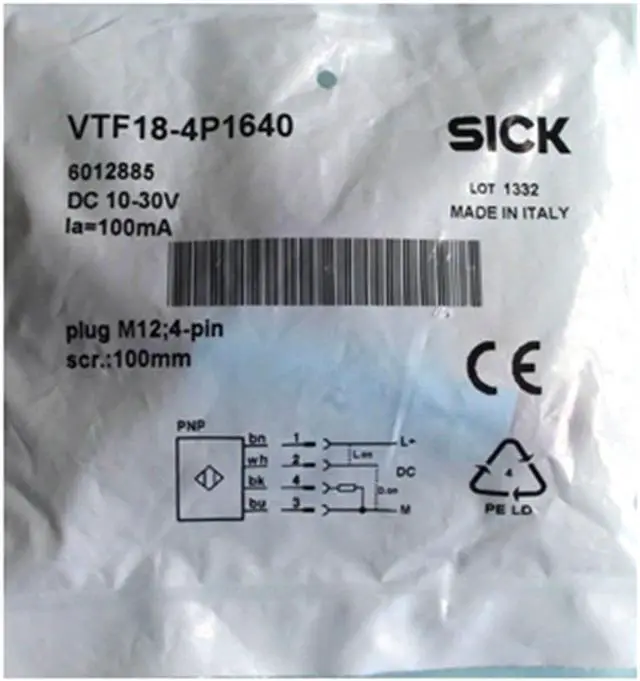

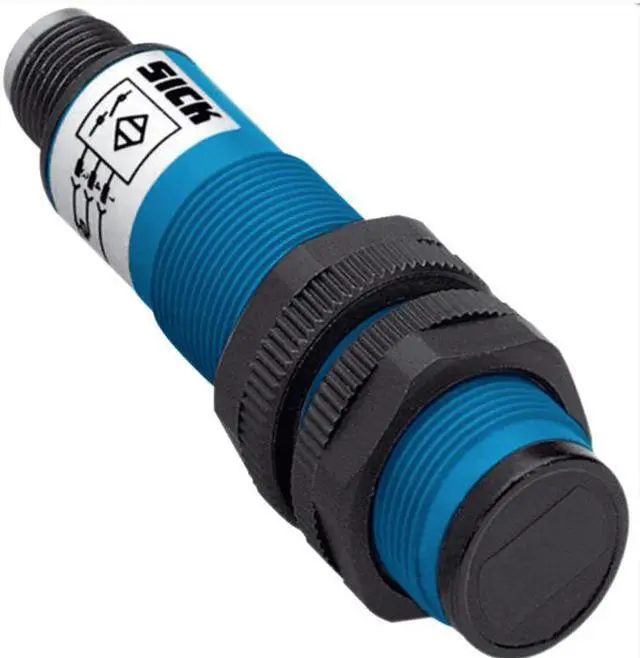

Sick VTF18-4P1640 Photoelectric Proximity Sensor,PNP,New
- Sick VTF18-4P1640 Photoelectric Proximity Sensor,PNP,New
+
+
Overview
Specs
Reviews
Sick VTF18-4P1640 Photoelectric Proximity Sensor,PNP,New
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background blanking

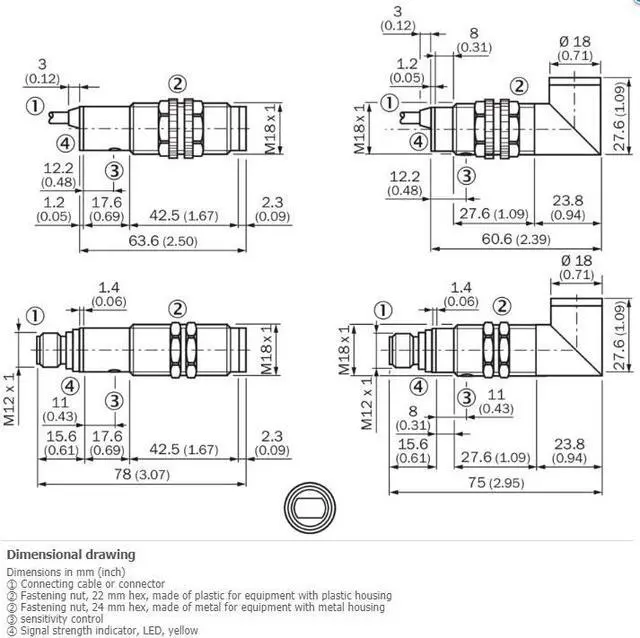

Housing design (light emission) Cylindrical
Housing length 78 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 3 mm ... 100 mm 1)
Sensing range 3 mm ... 90 mm
Focus 2)
Type of light Infrared light
Light source LED 3)
Light spot size (distance) Ø 3 mm (50 mm)
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output PNP 4)
Switching mode Light/dark switching 4)
Switching mode selector Selectable via L/D control cable
Output current Imax. 100 mA
Response time = 2 ms 5)
Switching frequency 250 Hz 6)
Connection type Male connector M12, 4-pin
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class III
Weight 100 g
Housing material Plastic, PBT/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Special feature Focused optics
Ambient operating temperature –25 °C ... +70 °C
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background blanking
Housing design (light emission) Cylindrical
Housing length 78 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 3 mm ... 100 mm 1)
Sensing range 3 mm ... 90 mm
Focus 2)
Type of light Infrared light
Light source LED 3)
Light spot size (distance) Ø 3 mm (50 mm)
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output PNP 4)
Switching mode Light/dark switching 4)
Switching mode selector Selectable via L/D control cable
Output current Imax. 100 mA
Response time = 2 ms 5)
Switching frequency 250 Hz 6)
Connection type Male connector M12, 4-pin
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class III
Weight 100 g
Housing material Plastic, PBT/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Special feature Focused optics
Ambient operating temperature –25 °C ... +70 °C
