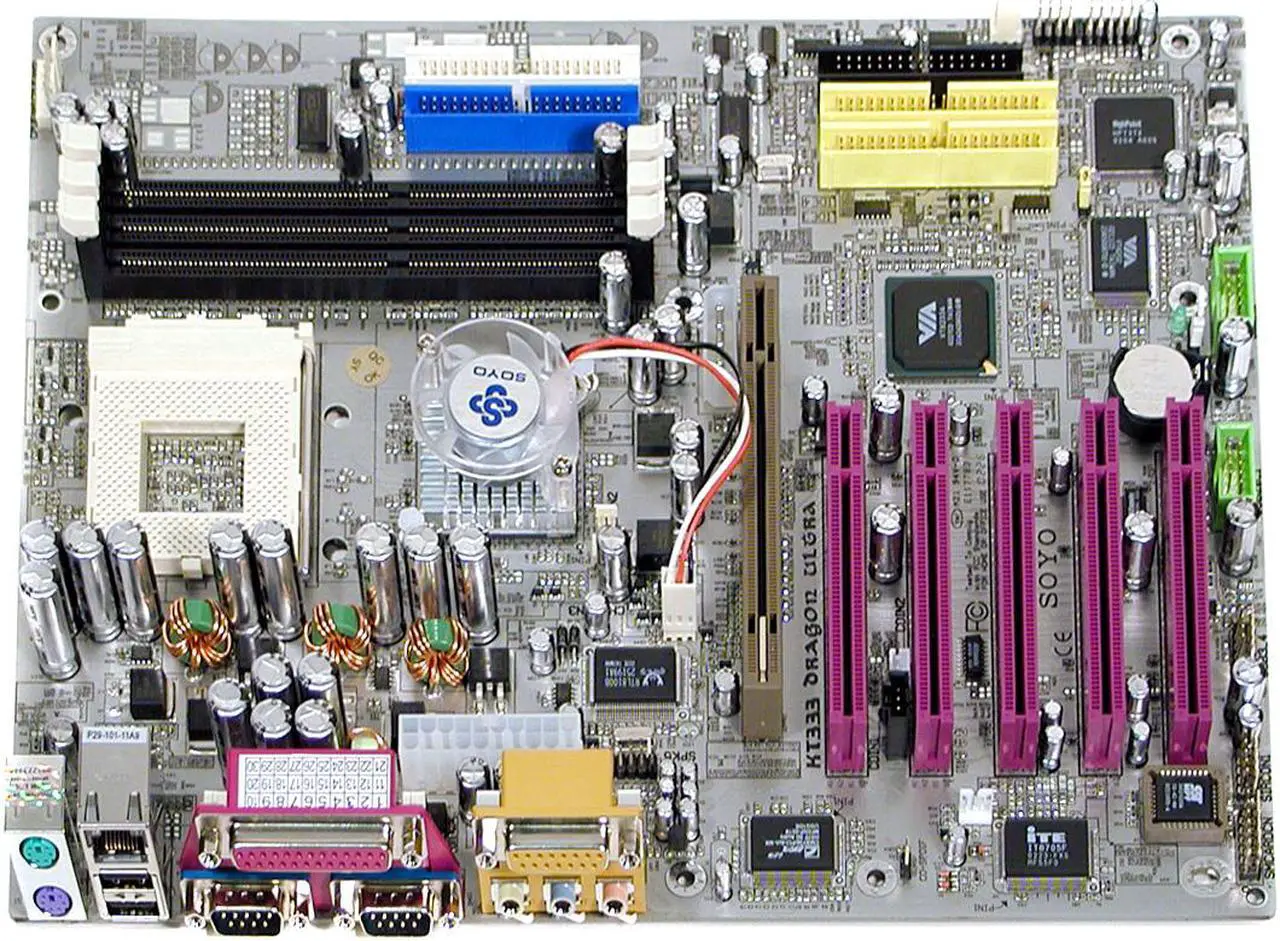

SOYO SY-KT333 DRAGON Ultra (Platinum Edition) 462(A) VIA KT333 ATX AMD Motherboard

(44) Write a Review
  • VIA KT333
  • Athlon XP / Athlon / Duron
  • DDR 333
Specs
Reviews (44)

Learn more about the SOYO SY-KT333 DRAGON Ultra (Platinum Edition)

Model
Brand SOYO
Model SY-KT333 DRAGON Ultra (Platinum Edition)
Supported CPU
CPU Socket Type CPU Socket Type462(A)
CPU Type Athlon XP / Athlon / Duron
FSB 266/200 MHz
Chipsets
Chipset ChipsetVIA KT333
South Bridge VIA VT8233A
Memory
Number of Memory Slots 3x184pin
Memory Standard DDR 333
Maximum Memory Supported 3GB
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 5 x PCI Slots
Storage Devices
PATA 4 x ATA100 8 Dev. Max
PATA RAID 0/1
Onboard Video
Onboard Video Chipset Onboard Video ChipsetNone
Onboard Audio
Audio Chipset Audio ChipsetC-Media CMI8738
Audio Channels Audio Channels6 Channels
Onboard LAN
LAN Chipset Realtek 8100B
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x LPT (Parallel Port) / 2 x COM (Serial Port) / 2 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks
PS/2 PS/22
COM 2
LPT 1
USB 1.1/2.0 2 x USB 2.0
Game/MIDI Ports 1
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Additional Information
Date First Available July 03, 2003
