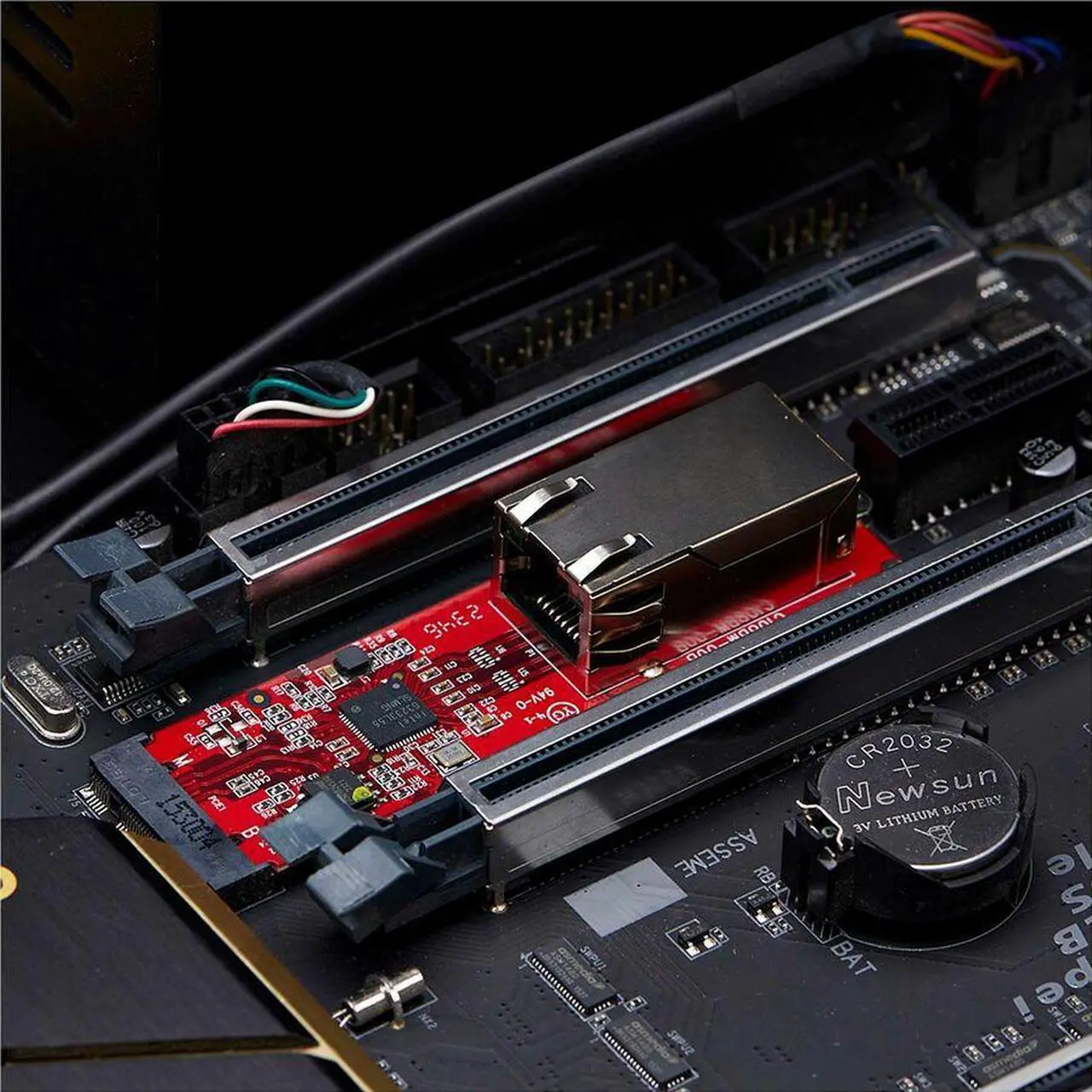

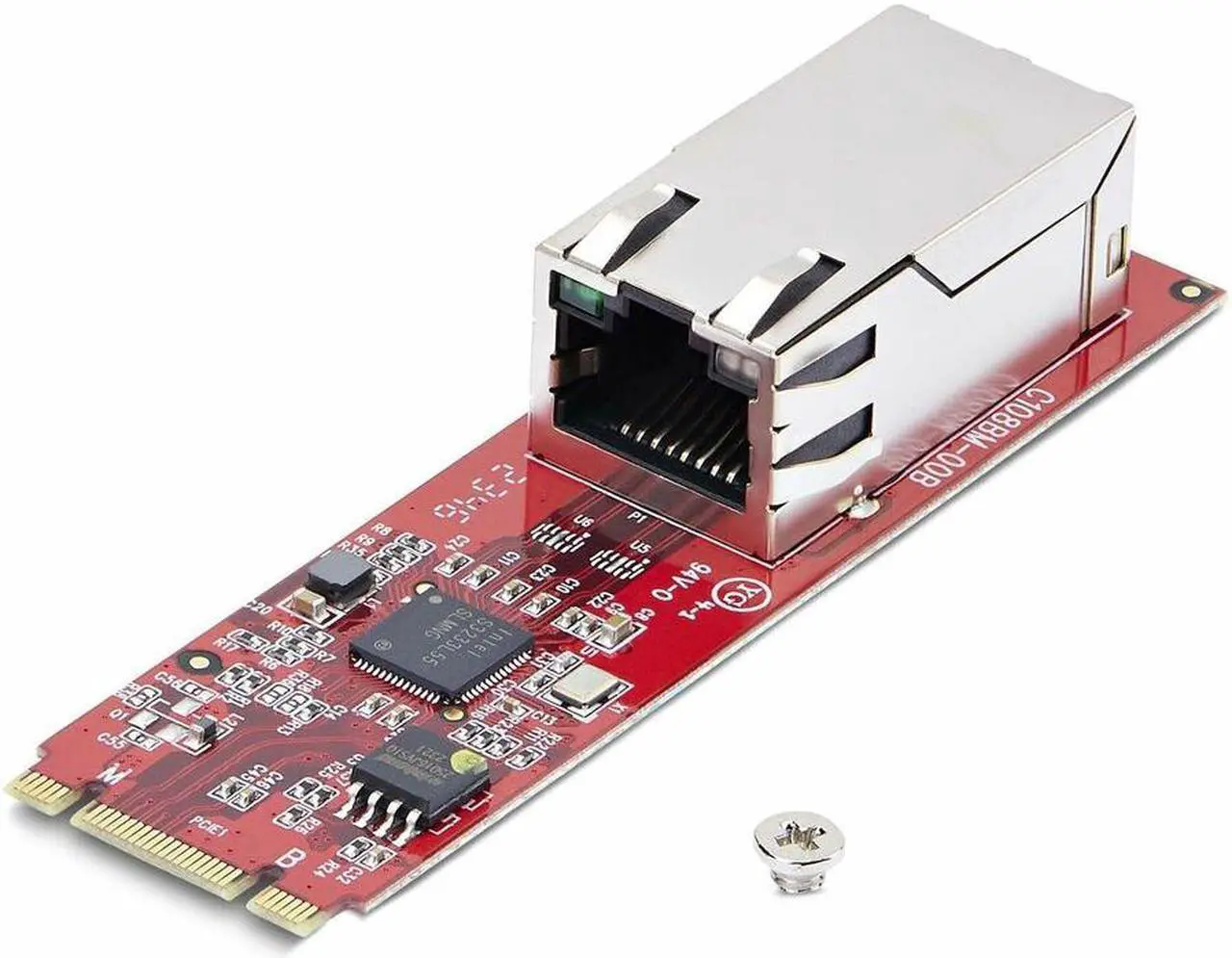

1-PORT 2.5GbE M.2 NETWORK CARD: High-performance M.2 Ethernet 2.5Gbps network card with Intel I225-V-chip; Multi-gigabit; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T (802.3bz); PCI Express M2 2280 B or M key compatible

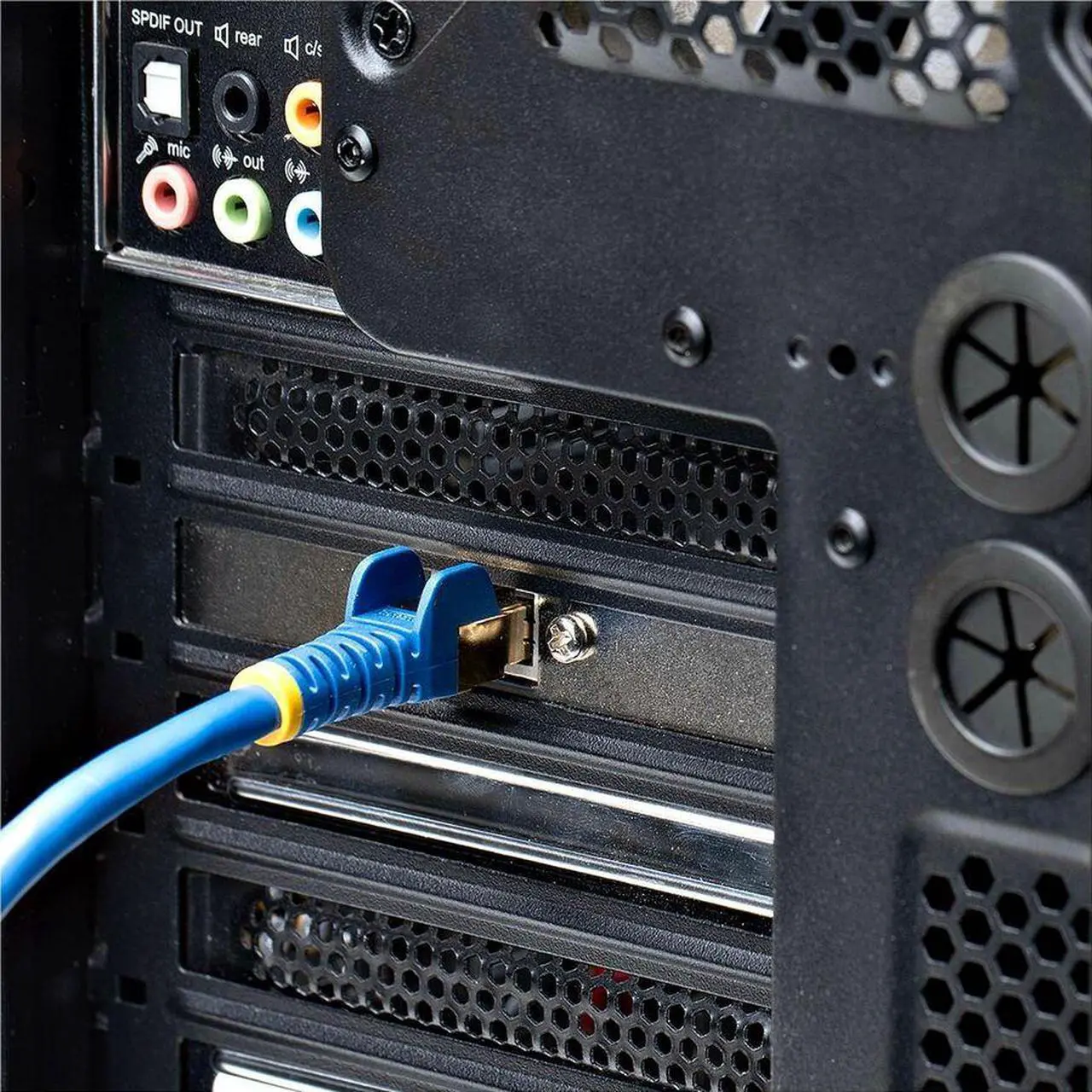

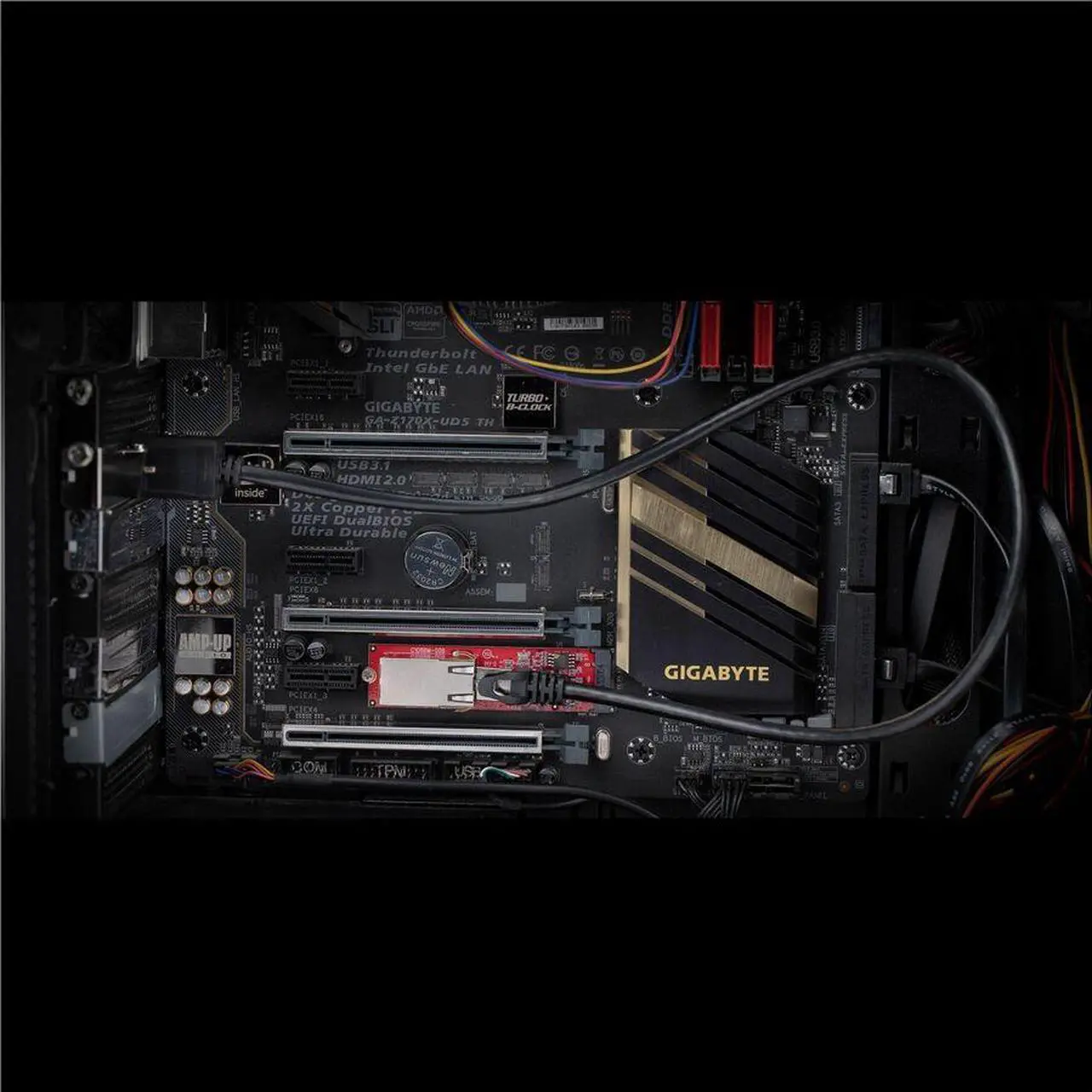

M.2 INTERFACE: M.2 2280 form factor is ideal for upgrading systems that do not have PCIe expansion slots or where slots are already in use; Includes 2ft (60cm) M/F Cat6 cable adapter for running Ethernet port to full/low-profile bracket on the rear of the PC
COMPATIBILITY: 2.5GBASE-T variable speed options (2.5/1Gbps and 100/10Mbps) with auto-negotiation; Supports B or M key M.2 PCIe Gen 2 slots; Network interface card for PC is compatible with Windows/Linux; Full and low profile bracket included
IT MANAGEMENT: Intel vPro® for remote management and troubleshooting; PXE boot enabled for faster deployment/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management
+
+
Overview
Specs
Reviews
NBASE-T PCIE ETHERNET NIC/LAN
Learn more about the Detailed Specifications
Model
Brand
StarTech.com
Part Number
MR12GI-NETWORK-CARD
Features
Features
Technical Information Chipset Manufacturer: Intel
Chipset Model: I225-V
Interfaces/Ports Host Interface: M.2
Total Number of Ports: 1
Number of Network (RJ-45) Ports: 1
Media & Performance Media Type Supported: Twisted Pair
Maximum Data Transfer Rate: 2.50 Gbit/s
Network & Communication Network Technology: 2.5GBase-T
Dimensions & Weight
Dimensions
Height: 0.6"
Width: 3.1"
Weight
Weight (Approximate): 0.50 oz
Packaging
Package Contents

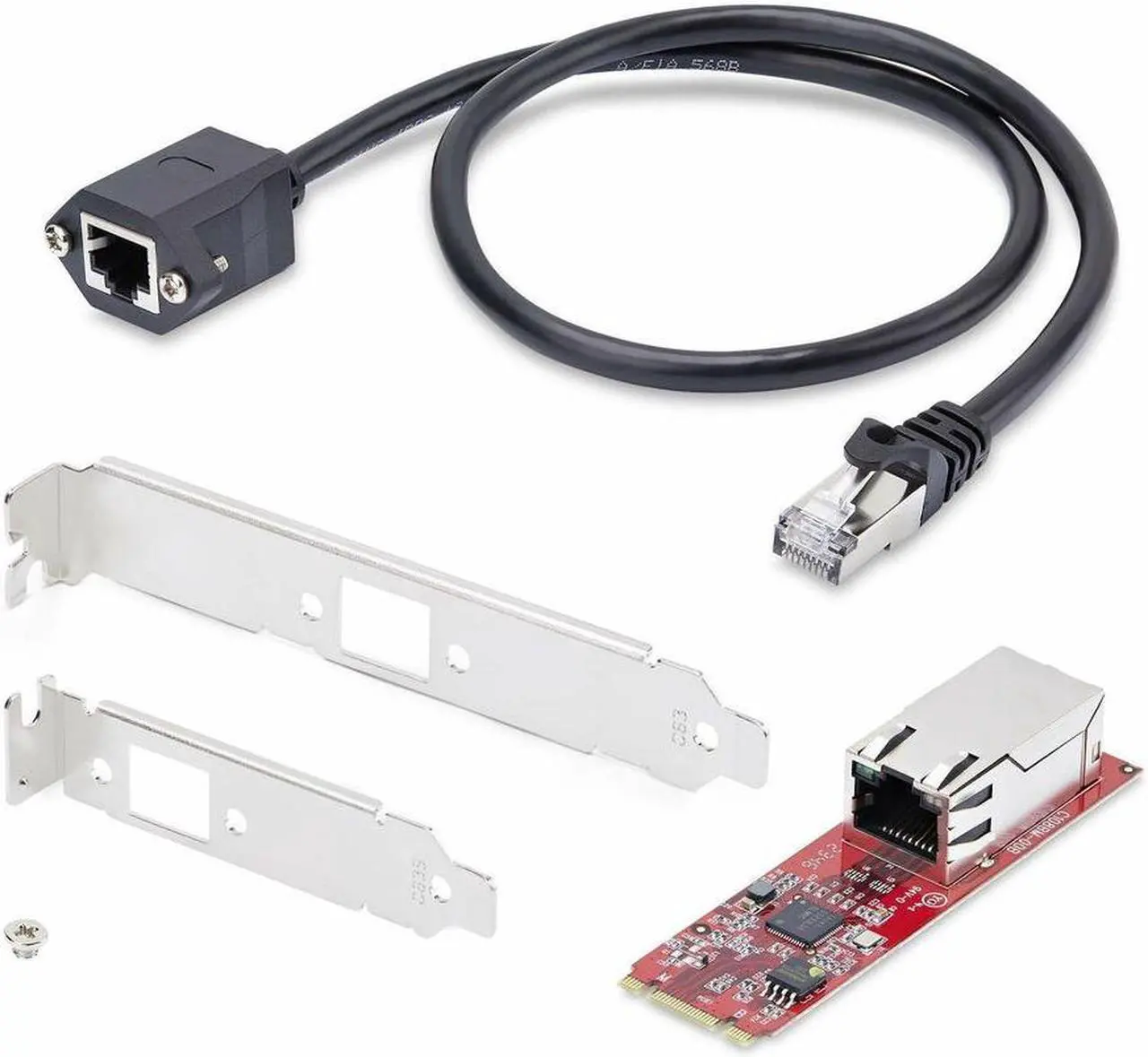

2.5Gigabit Ethernet Adapter 1 x CAT6 Cable Adapter 1 x Full-Profile Bracket 1 x Low-Profile Bracket 1 x M3x2 Screw 1 x QuickxStart Guide
Additional Information
First Listed on Newegg
June 11, 2025
