Supermicro CSE-E300 Flex-ATX Chassis

  • Compact Desktop 1U Server BOX PC
  • Embedded Appliance Chassis
  • Optimized for Flex-ATX and Mini-ITX Motherboard
  • Support 2 x 2.5 internal HDD or 1 x Standard LP AOC
  • Power Switch, Reset Button and LED Indicators
Overview
Specs
Reviews
Supermicro CSE-E300

Supermicro CSE-E300

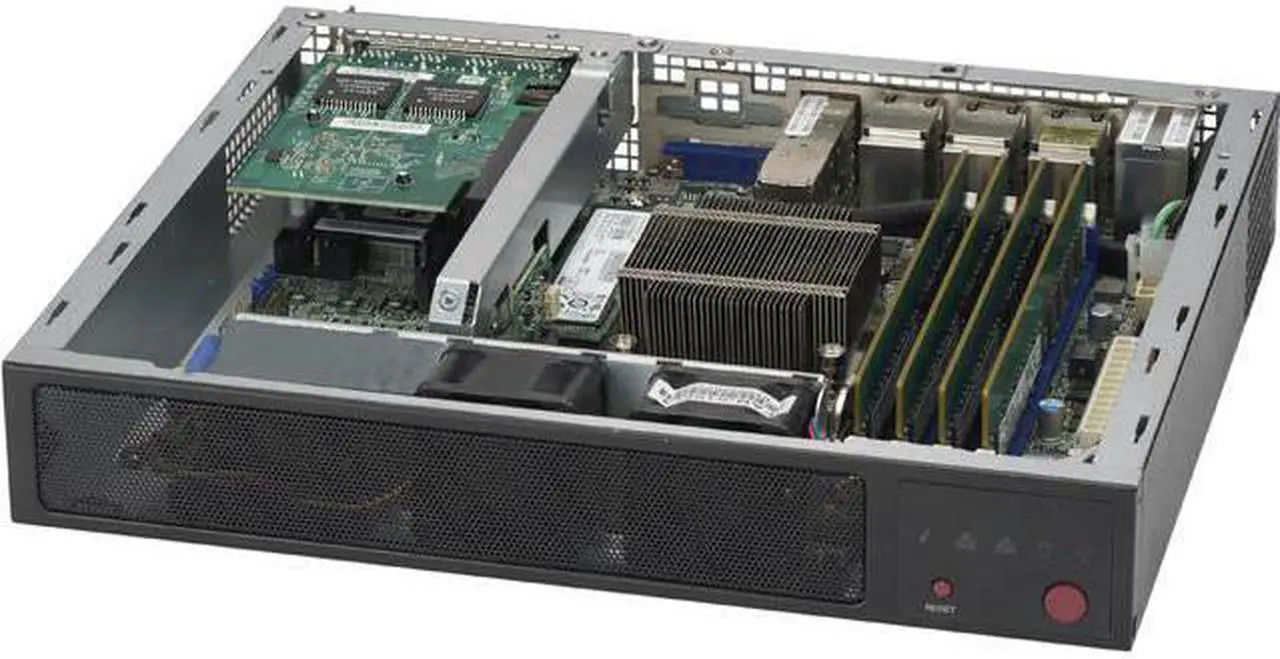

With a mere 1U form factor, the Supermicro CSE-E300 compact embedded appliance chassis is ideal for storage and network appliances or print and email server applications in places where space is a premium. It’s optimized for Flex-ATX and Mini-ITX motherboard, and supports two 2.5 internal HDD or one standard LP AoC (Add-on Card). The mesh front panel allows more air intake for better cooling efficacy.

Specifications

Physical Stats
Form Factor Flex-ATX 9.0" x 7.25", Mini-ITX chassis
Processor Support
CPU Single Intel and AMD processors
Cores 4 Core/4 Thread
Dimensions
Height 1.7" (43 mm)
Width 10" (254 mm)
Depth 8.9" (226 mm)
Net Weight 2.76 lbs (1.25 kg)
Gross Weight 3.7 lbs (1.68 kg)
Packaging (W x H x L) 15" (381 mm) x 10.87" (276 mm) x 5.59" (142 mm)
Available Color Black
Drive Bays
2 x 2.5" fixed drive bay
Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs Unit Identification (UID) LED
Operating Environment / Compliance
Environmental Specifications
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature: -20°C to 60°C (-4°F to 140°F)
  • Operating Relative Humidity: 10% to 85% (non-condensing)
  • Non-operating Relative Humidity: 10% to 95% (non-condensing)
Power Supply
Optional 60W/84W, DC-DC Power Adapter or DC/DC Power converter board
Certification N/A
Regulatory (Power Supply)
Power Supply Safety / EMC
  • CCC
  • CE/EMC
  • FCC
  • TUV/CB
  • UL/CUL
Motherboard (for CSE- E300)
  • X10SDV-TP8F
  • A2SDi-H-TP4F
  • A2SDi-4C-HLN4F
  • A2SDV-8C-TLN5F
  • X11SDV-8C-TLN2F
  • X11SCV-L
  • X10SDV-2C-TP8F
  • A2SDi-H-TF
  • A2SDi-12C-HLN4F
  • A2SDV-16C-TLN5F
  • X11SDV-12C-TLN2F
  • X10SDV-2C-TP4F
  • A2SDi-TP8F
  • A2SDi-16C-HLN4F
  • A2SDV-12C+-TLN5F
  • X11SDV-4C-TLN2F
  • X10SDV-4C+-TP4F
  • A2SDi-LN4F
  • A2SDi-8C-HLN4F
  • X11SDV-16C-TLN2F
  • X11SCV-Q
