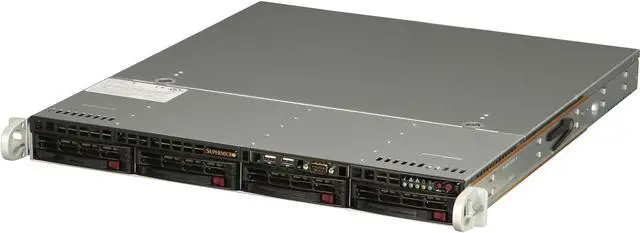

SUPERMICRO SYS-5018D-MTLN4F 1U Rackmount Server Barebone LGA 1150 Intel C224 PCH chipset DDR3 1600

(2) Write a Review
  • 1 x LGA 1150 Support Intel Xeon processor E3-1200 v3 family, 4th Gen Core i3, Pentium, Celeron (Up to 95W)
  • 4 x 240Pin Memory Slots (Max 32GB)
  • Support 4 x SATA 600 + 2 x SATA 300
  • 350W AC PSU
This item is covered under the Manufacturer Only Return Policy.
Overview
Specs
Reviews (2)

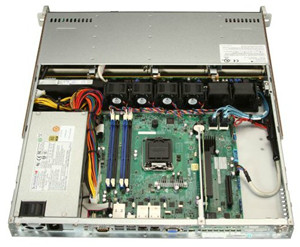

SYS-5018D-MTLN4F

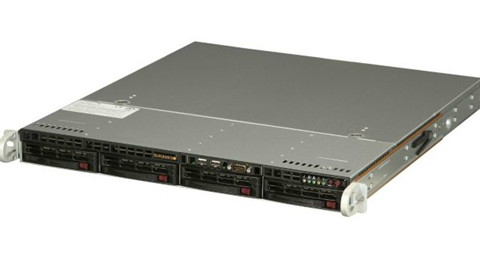

SUPERMICRO SYS-5018D-MTLN4F 1U Rackmount Server Barebone

Features

SYS-5018D-MTLN4F
  • Single socket H3 (LGA 1150) supports
  • Intel® Xeon® E3-1200 v3/v4, 4th gen. Core i3, Pentium, Celeron processors
  • Intel® C224 Express PCH

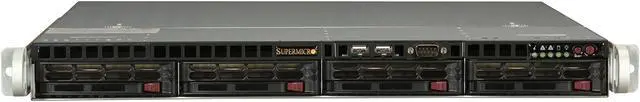

  • 4x 3.5" Hot-swap SATA3 HDDs
  • 1x PCI-E 3.0 x16 Full-height slot
  • Up to 32GB DDR3 ECC 1600MHz UDIMMs in 4 sockets
  • Quad Gigabit Ethernet LAN ports via Intel® i210AT
  • IPMI 2.0 on Dedicated LAN port
  • 350W Gold Level Power Supply

Specifications

Product SKUs
SYS-5018D-MTLN4F SuperServer 5018D-MTLN4F (Black)
Motherboard

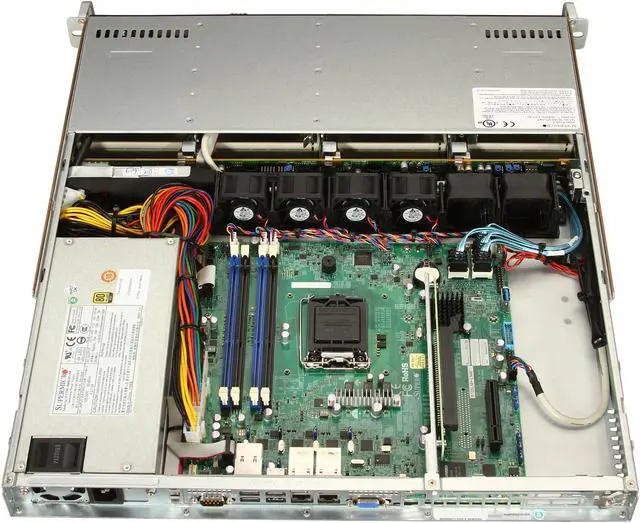

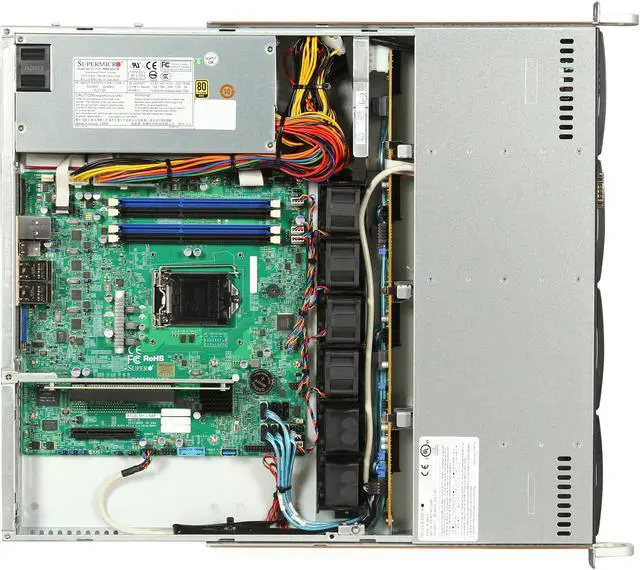

Motherboard Super X10SLM+-LN4F
Processor/Cache
CPU
  • Intel® Xeon® processor E3-1200 v3/v4 family, 4th Gen Core i3, Pentium, Celeron processors
  • Socket H3 (LGA 1150)
System Memory
Memory Capacity
  • 4x 240-pin DDR3 DIMM slots
  • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C224 PCH chipset
SATA
  • SATA3 (6Gbps) w/ RAID 0, 1, 5, 10
  • SATA2 (3Gbps) w/ RAID 0, 1
  • SATA DOM Power Connector
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC with 10/100/1000Mbps
Network Controllers
  • Intel® i210AT Controllers
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA ASPEED AST2400 BMC

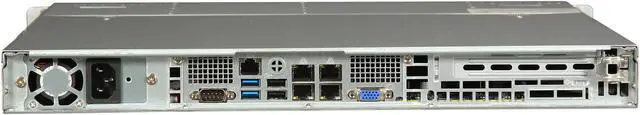

Input / Output
Serial ATA
  • 4x SATA3 (6Gbps) ports
  • 2x SATA2 (3Gbps) ports
  • SATA DOM Power Connector
LAN
  • 4x RJ45 GbE LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 3.0 ports (2 rear, 1 Type-A, 1 via header)
  • 6x USB 2.0 ports (2 rear, 4 via header)
VGA 1x VGA port
Serial Port / Header 2 COM ports (1 rear, 1 header)
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, 12V, +3.3V, +5V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Total of Five 4-pin fan headers supporting up to 5 fans
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • +5V Standby alert LED
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header

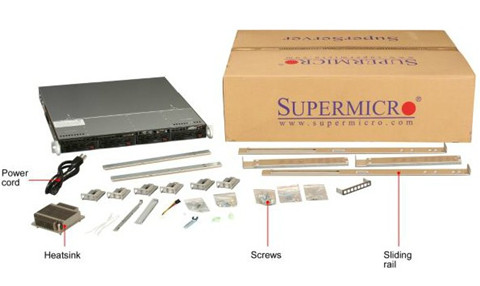

Whats in the Box

SYS-5018D-MTLN4F

MAIN OVERVIEW FEATURES:

  • Number of Processors Supported: 1
  • Processor Socket: Socket H3 LGA-1150
  • Processor Supported: Xeon,Core i3,Pentium,Celeron
  • Chipset Manufacturer: Intel
  • Chipset Model: C224
  • Maximum Memory: 32 GB
  • Memory Technology: DDR3 SDRAM
  • Memory Standard: DDR3-1600/PC3-12800
  • Number of Total Memory Slots: 4
  • Controller Type: Serial ATA/300,Serial ATA/600
  • RAID Supported: Yes
  • Graphics Controller Manufacturer: ASPEED
  • Graphics Controller Model: AST2400
  • Ethernet Technology: Gigabit Ethernet,Fast Ethernet
  • Number of Total Expansion Bays: 4
  • Number of 3.5" Bays: 4
  • Number of Total Expansion Slots: 1
  • Number of PCI Express x16 Slots: 1
  • Total Number of USB Ports: 12
  • Number of USB 3.0 Ports: 4
  • Number of SATA Interfaces: 6
  • Input Voltage: 110 V AC,220 V AC
  • Number of Power Supplies Installed: 1
  • Maximum Power Supply Wattage: 350 W
  • Color: Black
  • Form Factor: Rack-mountable
  • Rack Height: 1U
  • Height: 1.70" (43.18 mm)
  • Width: 17.20" (436.88 mm)
  • Depth: 19.80" (502.92 mm)
  • Weight (Approximate): 8 kg

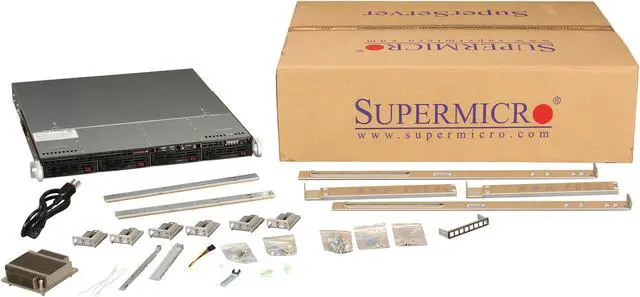

  • Package Contents:
    • SuperServer 5018D-MTLN4F (Black)
    • 1 x Super X10SLM+-LN4F Motherboard
    • 1 x 1U Chassis
    • 1 x BPN-SAS-815TQ-O-P
    • 1 x 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
    • 1 x SET OF 4 SATA 56/45.5/35/23CM ROUND S-RA. 26AWG
    • 1 x RSC-RR1U-E16 with PCI-E x16 output
    • 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156
    • 1 x 1U 350W MULTI OUTPUT 80PLUS GOLD PWS
    • 1 x Front ctrl cable 16 PIN TO 16 PIN, LF, Flat (L=54cm)
    • 4 x 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    • 4 x Black 3.5
    • 1 x set THIRD GENERATION GUIDE RAIL ASSY. Outer slides extendable length: 26" to 33.5"
  • Environmentally Friendly: Yes
  • Environmental Certification: RoHS 2
  • Limited Warranty: 3 Year
