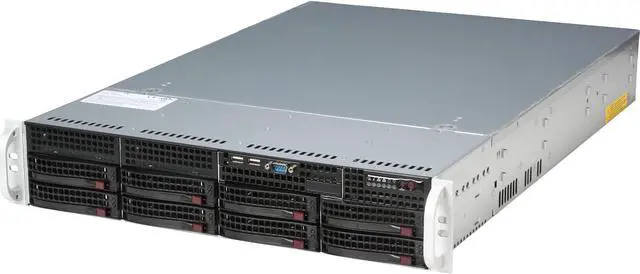

Main image of SUPERMICRO SYS-6028R-TRT 2U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 2 of 8 - SUPERMICRO SYS-6028R-TRT 2U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 3 of 8 - SUPERMICRO SYS-6028R-TRT 2U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 4 of 8 - SUPERMICRO SYS-6028R-TRT 2U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 5 of 8 - SUPERMICRO SYS-6028R-TRT 2U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 6 of 8 - SUPERMICRO SYS-6028R-TRT 2U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 7 of 8 - SUPERMICRO SYS-6028R-TRT 2U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 8 of 8 - SUPERMICRO SYS-6028R-TRT 2U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Shop All Supermicro Products

SUPERMICRO SYS-6028R-TRT 2U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Be the first to review this product...

Dual LGA 2011
Intel Xeon processor E5-2600 v3 family (up to 145W TDP)
16 x 288Pin Memory Slots
740W

Overview

Specs

Reviews

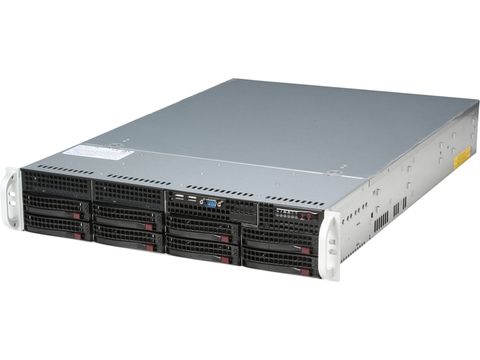

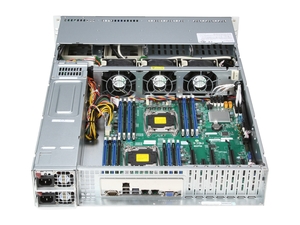

SUPERMICRO SYS-6028R-TRT 2U Rackmount Server Barebone

Features

Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots
Intel® X540 Dual port 10GBase-T
Intel C612 controller for 8 SATA3 ports; RAID 0, 1, 5, 10
8x 3.5" Hot-swap SATA3 HDD Bays
740W Redundant Power Supplies Platinum Level (94% efficiency)

Specifications

Product SKUs
SYS-6028R-TRT	SuperServer 6028R-TRT (Black)
Motherboard

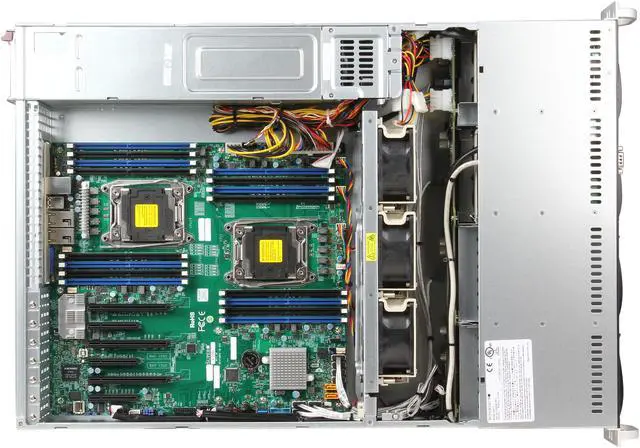

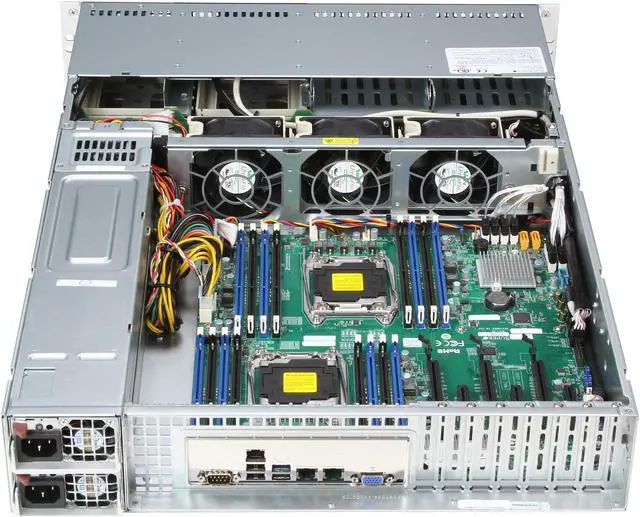

Motherboard	Super X10DRi-T
Key Features
Key Features	• Cloud and Virtualization needs • Compute Intensive Application • Database Processing and Storage • High Availability Storage • Mission-critical Applications
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 18 Cores / Up to 45MB Cache
System Bus	QPI up to 9.6 GT/s
Note	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity	16x 288-pin DDR4 DIMM slots Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C612 chipset
SATA	SATA 3.0 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® X540 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	ASPEED AST2400 BMC
Input / Output
Serial ATA	8x SATA3 (6Gbps) ports 2x SATA3 powered ports that support SATA DOM
LAN	2x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	Rear USB: 2x USB 3.0 + 2x USB 2.0 Front USB: 2x USB 2.0 USB Header: 2x 3.0, 2x 2.0, 1x Type A
VGA	1x VGA port
Serial Port / Header	2x Fast UART 16550 serial 2x COM Ports (1 rear, 1 header)
DOM	2x SuperDOM (Disk on Module) ports
Management
Software	SuperDoctor® 5 Watch Dog NMI, SPM, SUM IPMI 2.0 Intel Node Manager
Power Configurations	ACPI / APM Power Management Power-on mode for AC power recovery
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1

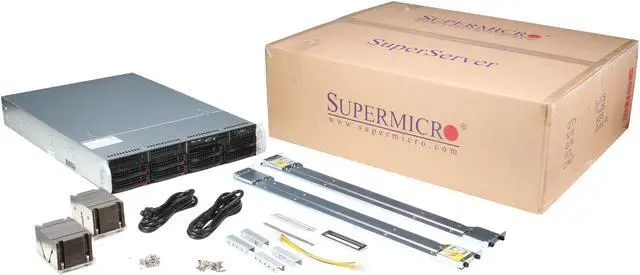

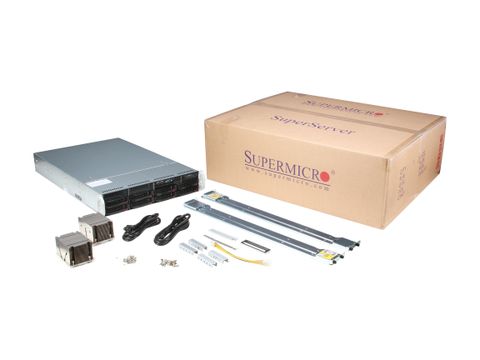

Whats in the Box

Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.

Model
Brand	SUPERMICRO
Model	SYS-6028R-TRT

CPU Supported
CPU Type	Intel Xeon processor E5-2600 v3 family (up to 145W TDP)
CPU Socket	Dual LGA 2011
Installed CPU	No CPU Installed
Max Processors	2

Chipset
North Bridge	Intel C612

Memory Supported
Memory Slots	16 x 288Pin
Installed Memory Size	No Memory Installed
Max Memory Supported	Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type Supported	DDR4 2133/1866/1600
ECC Supported	Yes
Registered	Yes

Storage Supported
Installed HDD	No Storage Installed
Serial ATA	8x SATA3 (6Gbps) ports 2x SATA3 powered ports that support SATA DOM
SATA RAID	RAID 0/1/5/10

Graphics
GPU/VPU	ASPEED AST2400 BMC

Expansion Slots
PCI Express	3x PCI-E 3.0 x16 (Low-profile) 3x PCI-E 3.0 x8 (Low-profile)

Communications
First LAN	Intel X540
Second LAN	Intel X540
Max. LAN Speed	Dual 10 Gigabit

Expansion Bays

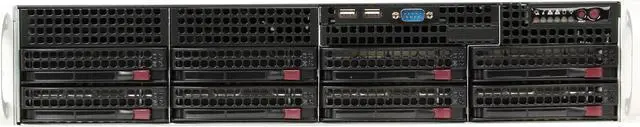

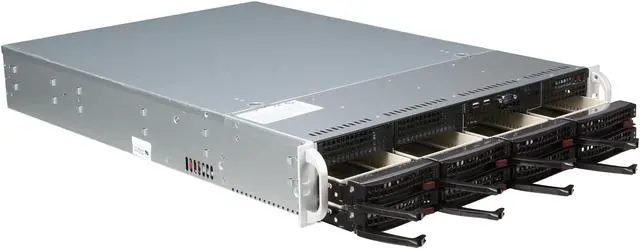

Hot-Swap Bays	8x 3.5" Hot-swap SATA HDD trays

Panel Ports
Front USB	2 x USB 2.0
COM	2x COM Ports (1 rear, 1 header)
VGA	1

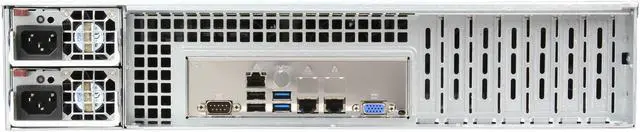

Rear USB	2 x USB 3.0 2 x USB 2.0
RJ45	2x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port
Other Ports	2x Fast UART 16550 serial 2x SuperDOM (Disk on Module) ports

Power Supply
Max. Power	740W

Features
Features	- Cloud and Virtualization needs - Compute Intensive Application - Database Processing and Storage - High Availability Storage - Mission-critical Applications 1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s 2. Up to 1TB ECC DDR4 2133MHz; 16x DIMM sockets 3. 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots 4. Intel X540 Dual port 10GBase-T 5. Intel C612 controller for 8 SATA3 ports; RAID 0, 1, 5, 10 6. 8x 3.5" Hot-swap SATA3 HDD Bays 7. 740W Redundant Power Supplies Platinum Level (94% efficiency)

Details
Form Factor	2U Rackmount

Dimensions & Weight
Dimensions	3.5" (89mm) x 17.2" (437mm) x 25.5" (647mm) (H x W x D)
Weight	35.5 lbs (16 kg)
