Bring high performance of up to 6.0Gbps with hardware RAID 0/1 solutions to consumer PCs. Marvell 88SE9128 Chipset
Learn more about the Syba SD-PEX50049
Model
Brand
SYBA
Model
SD-PEX50049
Details
Type
SATA / IDE
External Connectors
2 x eSATA
Internal Connectors
1 x IDE
Interface
PCI-Express 2.0 x1
Transfer Rate
Up to 6Gb/s
RAID
RAID 0/1
Operating Systems Supported
Windows 7 32/64-bit Vista 32/64-bit Windows XP 32/64-bit Server 2003 32/64-bit Server 2008 32/64-bit Linux
Features
Features
Based on Marvel 88SE9128 PCI-Express 2.0 SATA 6Gbps Hardware RAID Controller
1-Lane PCI-Express 2.0 Interface Supports Communication Speed of 2.5Gbps and 5.0Gbps
Compliant with PCI-Express 2.0 Base Specification
Unique Hard Drive Activity LED Indicator Circuit Design: The LED Blinds When There is Read/Write Activity on one of the Hard Drive Connected to the Motherboard SATA Port or to this Add-on Card
Serial-ATA (SATA) Interface: Two External SATA 6.0Gbps Ports Compliant with Serial-ATA Specification 3.0 Supports Communication Speed of 6.0Gbps, 3.0Gbps, and 1.5Gbps Compatible with SATA-III (6Gbps), SATA-II(3Gbps), SATA-I(1.5Gbps) Hard Drives and SSD's Supports Gen 1i, Gen 1x, Gen 2.i, Gen 2m, Gen 2x, and Gen 3i Support Hardware RAID 0 and RAID 1 Supports Native Command Queue (NCQ) Supports SATA Port Multiplier FIS Based Switching or Command Based Switching Supports SATA Port Hot-plug Supports AHCI 1.0 and IDE Programming Interface Supports ATA and ATAPI Commands
Parallel-ATA (PATA/IDE) Interface: One PATA Port (Connects up to 2 ATA/ATAPI/IDE Devices (Master and Slave) Compliant with ATA/ATAPI-7 Specification Supports DMA Protocols, and up to UDMA 150Mbps Data Transfer Rate Supports Multiword DMA and PIO Modes for Data Transfer Supports IDE Programming Interface.

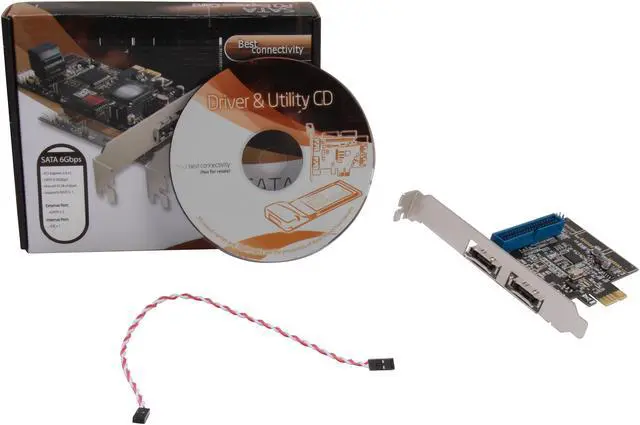

Package Contents
Package Contents
PCI-Express SATA RAID Card Driver CD User Manual LED Cable
