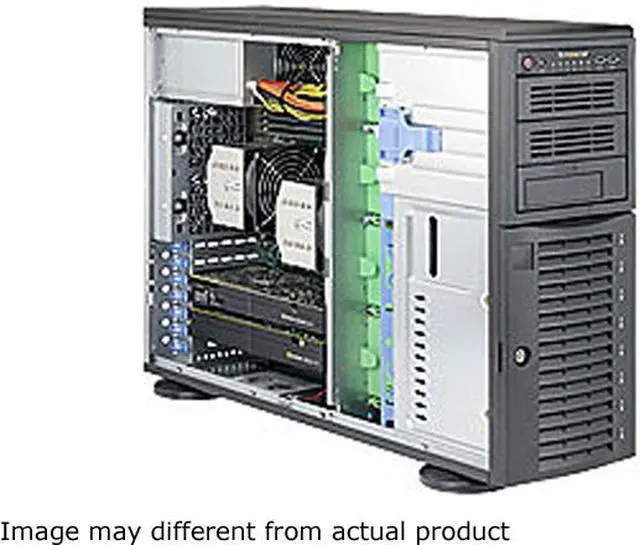

SUPERMICRO SYS-7048A-T 4U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600
- Dual LGA 2011
- Intel Xeon processor E5-2600 v3 family (up to 145W TDP **) ** Please contact your Supermicro sales representative for additional details.
- 16 x 288Pin Memory Slots
- 1200W
Overview
Specs
Reviews
Supermicro offers a complete line of SuperWorkstation Solutions from entry level to ultimate high-end systems. All systems are built with Supermicro quality and include high-efficiency power supplies, optimized cooling subsystems, advanced motherboard designs and rich multimedia features. SuperWorkstations are ideal for Content Generation, Gaming, Entertainment, Scientific Research and General-Purpose Computing.
MAIN OVERVIEW FEATURES: Number of Processors Supported: 2Processor Socket: Socket LGA 2011-v3Processor Supported: Xeon64-bit Processing: YesChipset Manufacturer: IntelChipset Model: C612 ExpressMaximum Memory: 1 TBMemory Technology: DDR4 SDRAMMemory Standard: DDR4-2133/PC4-17000Number of Total Memory Slots: 16Controller Type: Serial ATA/600RAID Supported: YesEthernet Technology: Gigabit Ethernet,Fast EthernetNumber of Total Expansion Bays: 11Number of External 5.25" Bays: 3Number of 3.5" Bays: 8Number of Total Expansion Slots: 6Number of PCI Express x8 Slots: 3Number of PCI Express x16 Slots: 3Total Number of USB Ports: 11Number of USB 3.0 Ports: 6Number of SATA Interfaces: 10Input Voltage: 120 V AC,230 V ACNumber of Power Supplies Installed: 1Maximum Power Supply Wattage: 1.20 kWColor: BlackForm Factor: TowerRack Height: 4UHeight: 17.80" (452.12 mm)Width: 7" (177.80 mm)Depth: 25.50" (647.70 mm)Package Contents: SuperWorkstation SYS-7048A-T Barebone System1 x Super X10DAi Motherboard1 x 4U Chassis1 x CSE-SAS-743TQ-O-P8 x 55cm 30AWG SATA S-S cable2 x 8 pin to 8 pin round SGPIO cable, 40cm, 28AWG, pinout 1-1,RoHS/REACH2 x 4U Active CPU Heat Sink for X9, X10 Workstations1 x PS2 1200W Multi Output High Efficiency P1 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)1 x Front Control Cable Round 16 pin to 16 pin Ribbon 204 x 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM)1 x Front control cable 16 pin split, 6", (converter head), 26AWG1 x 92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan2 x 80x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan8 x Black Hot-swap 3.5inch HDD Tray (w/o logo)Environmentally Friendly: YesEnvironmental Certification: RoHS
