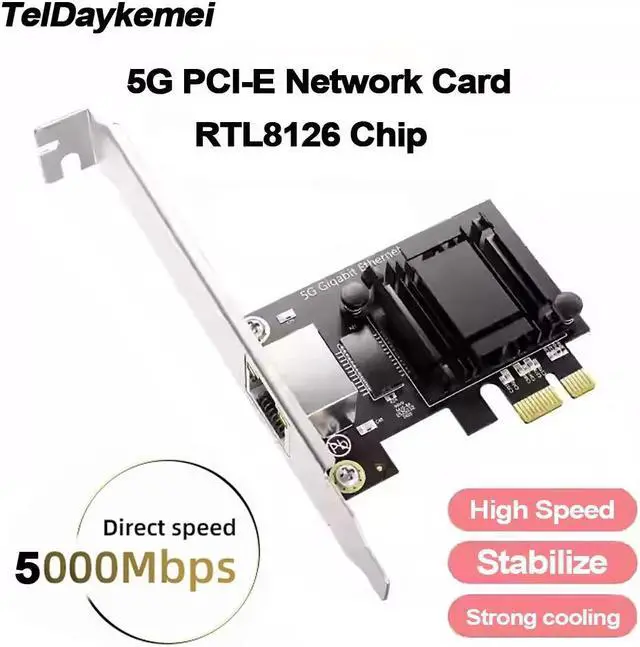

TelDaykemei 5G PCIe To RJ45 Network Card RTL8126 Chip Gigabit Ethernet PCI Express Network Card 10/100/2500/5000Mbps 1Gbps/5Gbps For Desktop

Single Port 5Gbps PCIe Network Card



1, This Single port 5Gbps PCIe network card adds one copper Ethernet port to your Server or Desktop

computer and provides Multi-Gigabit Ethernet access to your network at five speeds: 5Gbps, 2.5 bps, 1G,
100Mbps and 10Mbps.

2, The 5Gbase-T solution provides additional bandwidth using your existing ethernet infrastructure to help
reduce the cost cabling upgrades. The card enables you to connect to 5Gbase-T and NBASE-T
equipment at network speeds of 10Mbps, 100Mbps, 1Gbps, 2.5G bps and 5Gbps over your CAT5e
cabling (up to 100M depending on the network configuration)

3, The Realtek RTL8126 chipset, compliant with IEEE 802.3 az and IEEE 802.3 u supports the PCIe 3.1
interface. It provides up to a 500% increase in data rate and requires no changes to existing cable
infrastructure.


Features
Multi-Gigabit Ethernet connectivity with four network speeds: 5G, 2.5G, 1G, 100Mbps, 10Mbps
Compatible with both 5GBASE-T and NBASE-T specifications
Support 5Gbps network speed on CAT5e and CAT6a cabling
Fully Compliant with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 az and IEEE 802.3 bz
standards
Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3 x Fully Duplex Flow Control
Supports IEEE 802.1 ad Double VLAN
Full and half duplex support
PXE network boot support
Transmit/Receive on-chip buffer support
Jumbo frame supports up to 16Kbytes
Wake-on-LAN (WOL) support
Complies with Microsoft and Linux platforms

Specifications

Hardware:

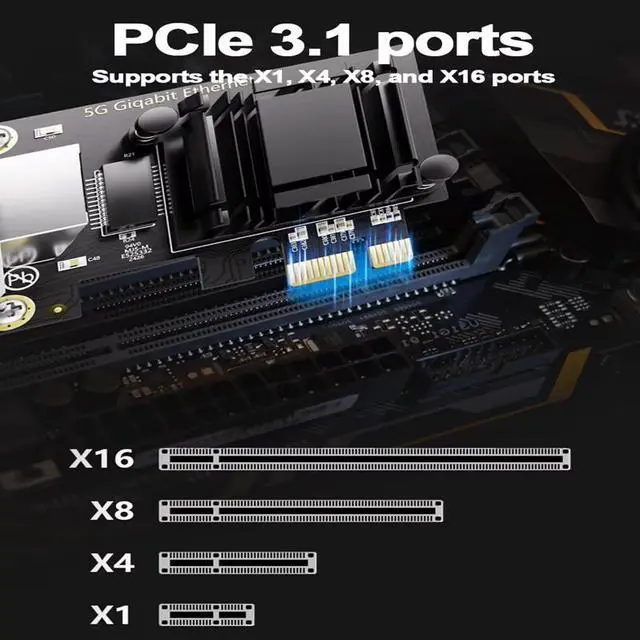

Bus Type: PCI Express 3.1 (8 GT/s)
Bus Width: x1 lane PCI Express, operable in x4, x8 and x16 slots
Card Type: Standard
Chipset ID: Realtek RTL8126
Industry Standards: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 ab, IEEE 802.3 az, IEEE 802.3 bz
Interface: 1x RJ45

Power Consumption: Gbps 1.8W
Special Notes / Requirements: PCI Express enabled computer with an available PCI Express x1 slot Gen 2.0 or higher (x4, x8, x16)
Software: Windows® 10, 11, Linux kernel up to 6.4

Physical Characteristics:
Product Height: 120 mm
Product Length: 84 mm
Product Width: 22 mm

Indicators: LED
Indicators: 1 Link (Green), 1 Act (Orange)

Environmental
Humidity: 20~80% RH
Operating Temperature: 5°C to 50°C (41°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)

Included in Package: 1 Single Port 5Gbps PCIe Network Card
