Learn more about the TRENDnet TEG-S16G
ModelBrand | TRENDnet |
---|
Model | TEG-S16G |
---|
Format & StandardsFormat | Rackmount |
---|
Standards | IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control IEEE 802.3az (draft 2.0) |
---|
Network Management Type | Unmanaged |
---|
Ports & InterfacePrimary Ports | 16 x RJ45 |
---|
Primary Port Speed | 10/100/1000Mbps |
---|
Data TransmissionMAC Address Table | 8K |
---|
Switching Method | Store and Forward |
---|
Jumbo Frames | Up to 9216Bytes |
---|
DetailsBuffer Memory | 2MBits |
---|
Protocols | CSMA /CD, Star |
---|
Cabling | Ethernet: Cat. 5 up to 100 m Fast Ethernet: Cat. 5 and 5e up to 100 m Gigabit Ethernet: Cat. 5e and 6 up to 100 m |
---|

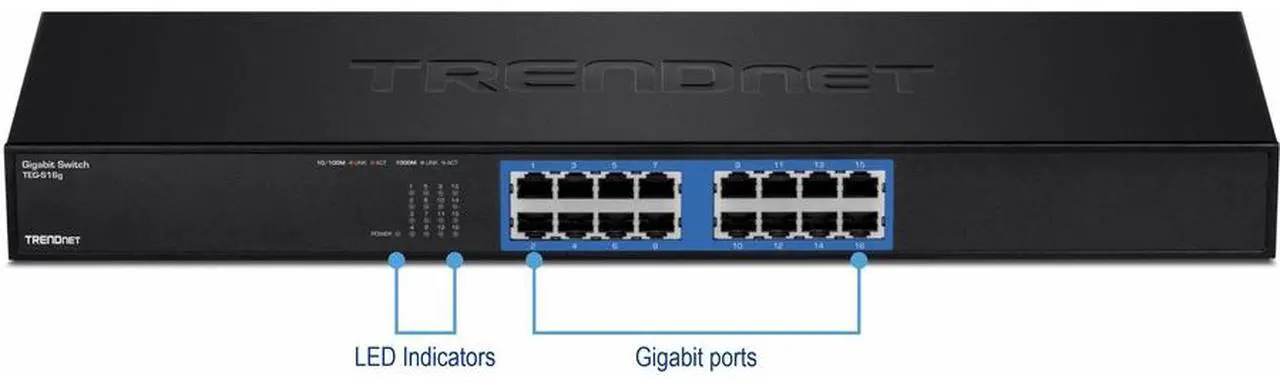

LEDs | Power, Link/ACT, 1000M/100M |
---|
Button | On / off power button |
---|
Power | 100~240VAC, 50/60Hz Internal universal switching power |
---|
FeaturesFeatures | GREENnet technology reduces power consumption by up to 70%
Switch Fabric: 32Gbps
Back pressure Flow Control for half-duplex mode
Diagnostic LEDs and Plug & Play support
Sturdy metal housing |
---|

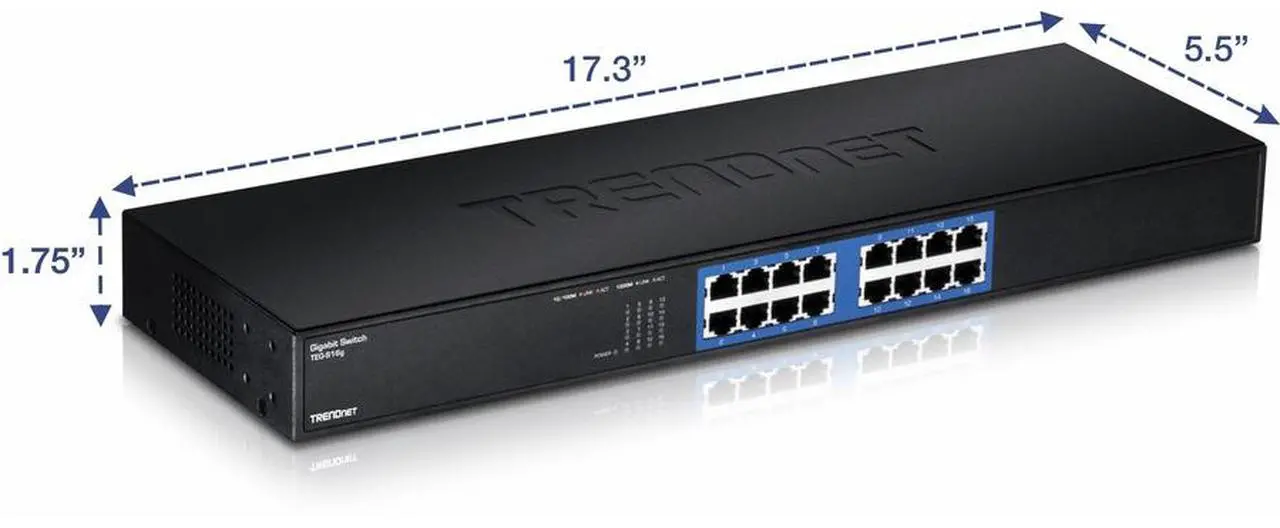

Dimensions & WeightDimensions | 17" x 5.5" x 1.8" |
---|
Weight | 3.5 lbs. |
---|
EnvironmentalTemperature | 0ºC to 40ºC (32ºF to 104ºF) |
---|
Humidity | 90% Maximum, Non-condensing |
---|
PackagingPackage Contents | TEG-S16g Multi-Language Quick Installation Guide Power cord (1.8m / 6ft.) Rackmount hardware |
---|
Additional InformationDate First Available | September 21, 2019 |
---|
