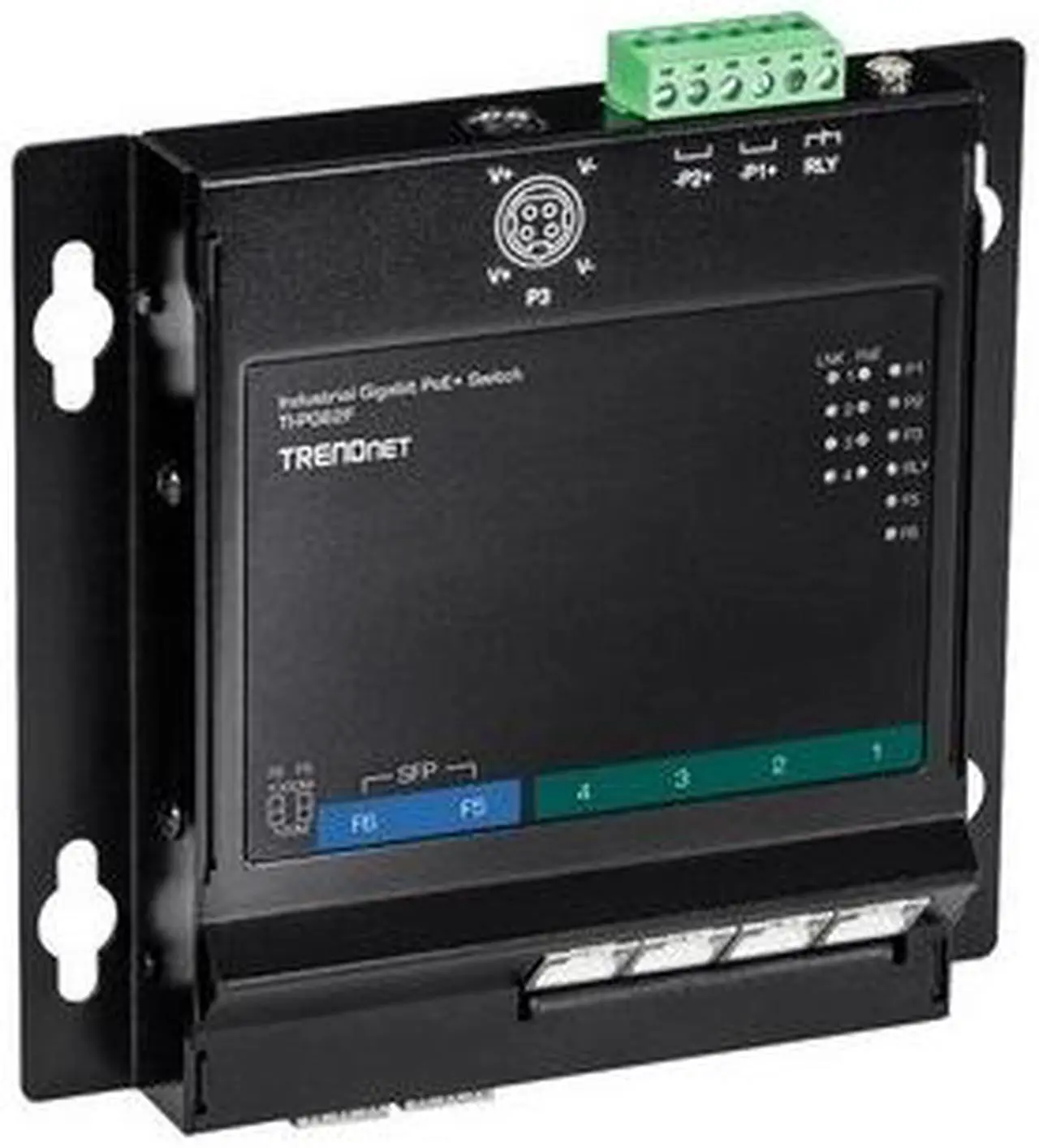

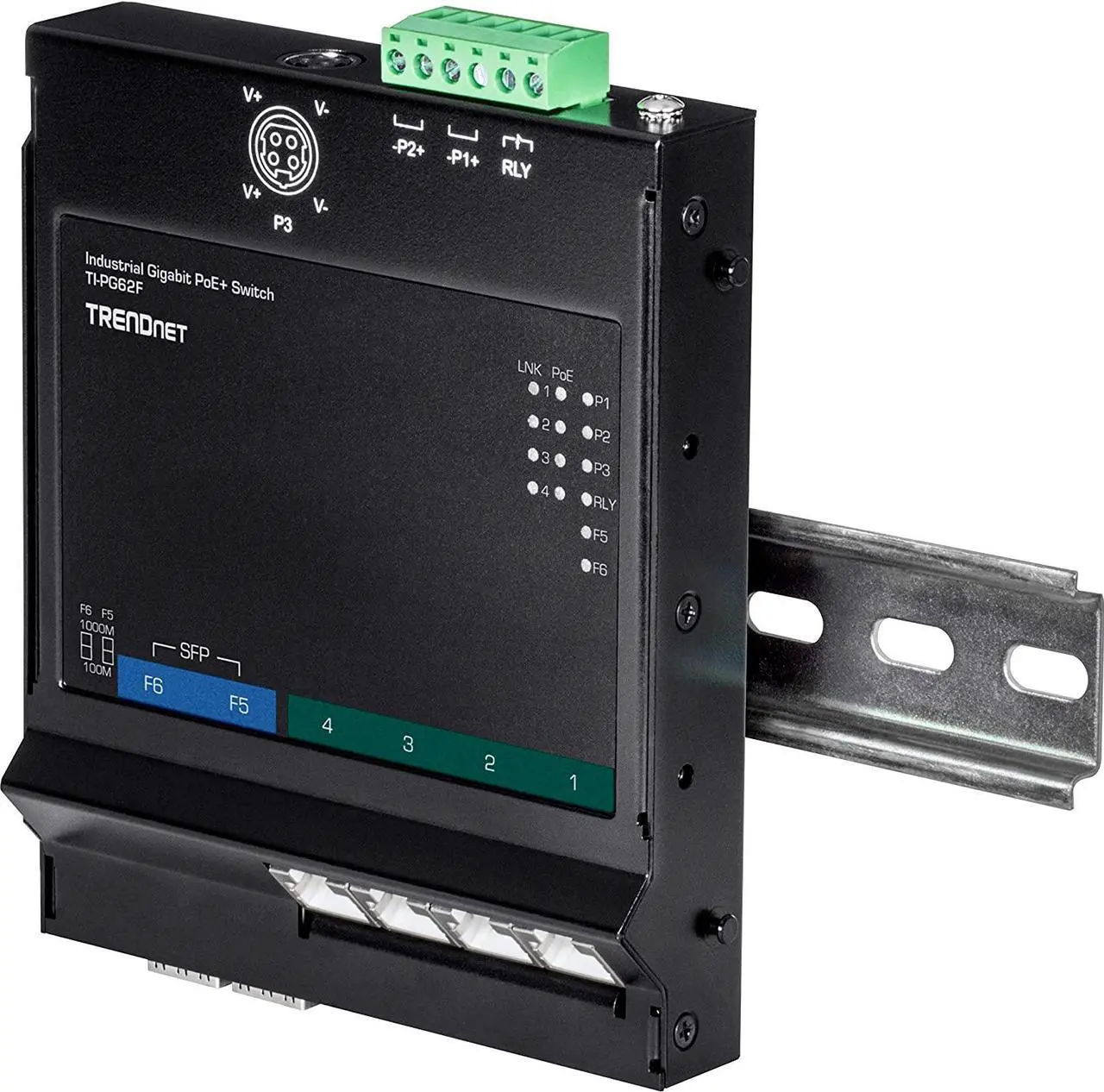

TRENDnet 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch, TI-PG62F, 4 x Gigabit PoE+ Ports, 2 x Gigabit SFP Slots, DIN-Rail, Wall Mount Brackets Included, IP30, 120W PoE Budget

4 x Gigabit PoE+ ports
2 x Gigabit SFP slots
120W PoE power budget
12Gbps switching capacity
Forwarding rate: 8.9Mpps (64-byte packet size)
Supports jumbo frames up to 10KB
Hardened IP30 rated metal housing
Includes DIN-Rail bracket and magnetic wall mount kit
Operating temperature range of -40°- 75°C (-40°- 167°F)
Redundant power inputs with overload current protection
Alarm relay triggered by power failure
Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, and 48VDC3000)

Overview

Specs

Reviews

TRENDnet hardened industrial switches

Cost-Effective & Reliable PoE Switches from TRENDnet

Model
Brand	TRENDnet
Model	TI-PG62F

Format & Standards
Format	Wall Mountable
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

Ports & Interface
Primary Ports	4 x RJ45 + 2 x SFP
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table MAC Address Table	1K
Jumbo Frames Jumbo Frames	10KB

Details
Buffer Memory Buffer Memory	128KB
PoE PoE	PoE budget: 120W@56V DC
Power	DC Power Input: 48 - 56 V DC Compatible power supply: TI-S12048 (sold separately) Max. consumption: 7.2W (no PoE) AC Power Input: 100 - 240V AC, 50/60Hz, 2A Compatible power adapter: 48VDC3000 (sold separately) Output: 48V DC, 3.34A 160W max.

Features
Features	Hardened components rated for extreme temperatures Redundant power inputs Power DIN adapter (sold separately: model 48VDC3000) ESD 8KV support Low-profile design

Dimensions & Weight
Dimensions	5.90" x 5.70" x 1.10"
Weight	1.28 lbs.

Environmental
Temperature	Operating Temperature: -40° - 75 °C (-40 °F - 167 °F)
Humidity	Max. 95% non-condensing

Packaging
Package Contents	TI-PG62F Quick Installation Guide Removable terminal block DIN-Rail, wall and magnet mount kit

Additional Information
Date First Available	June 10, 2020
