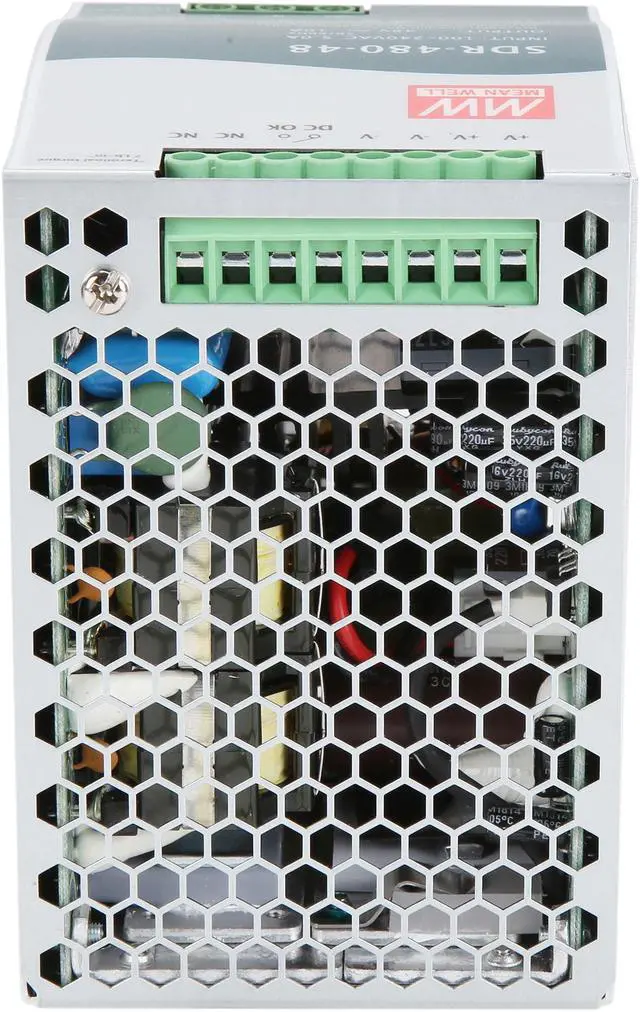

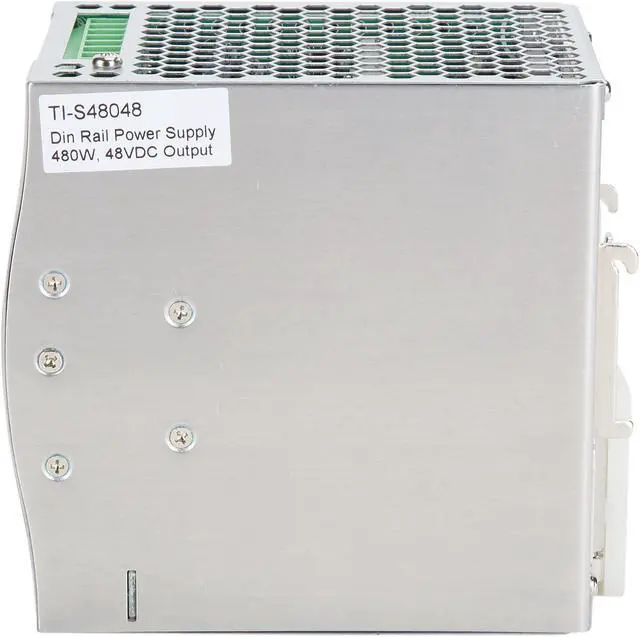

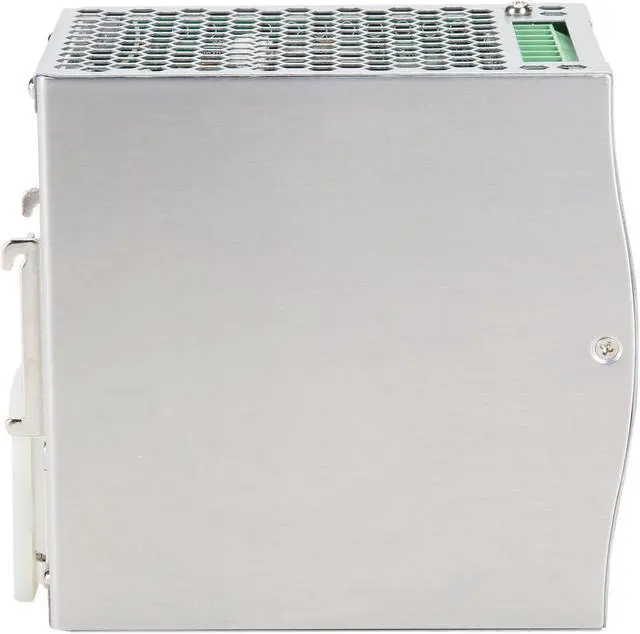

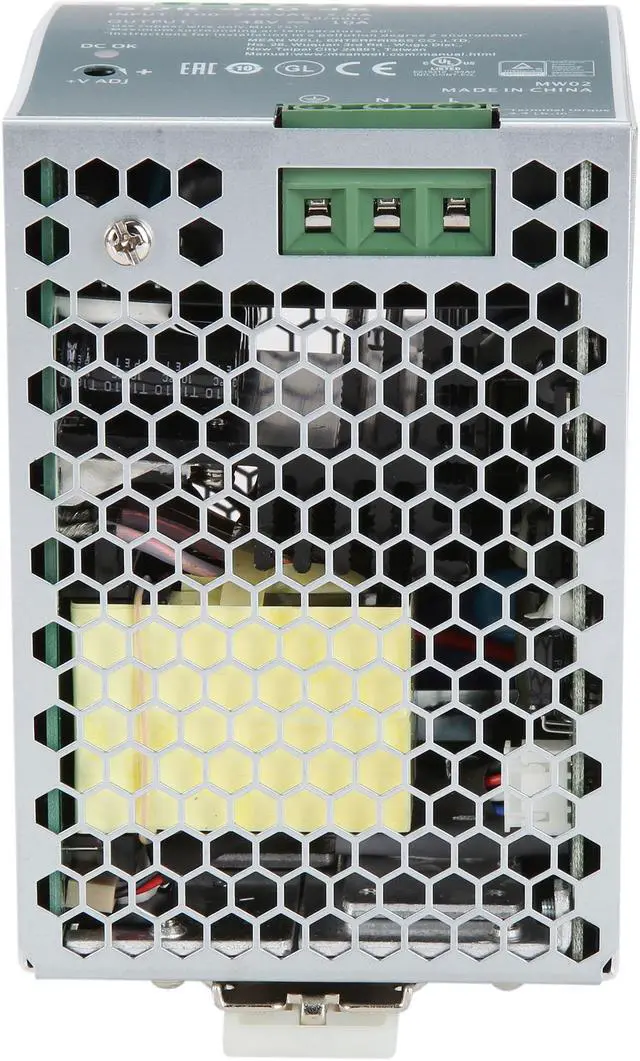

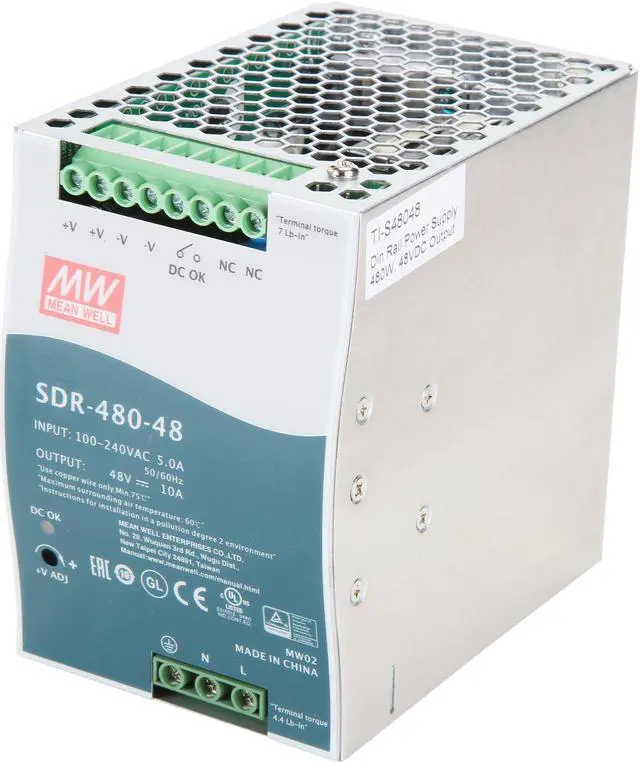

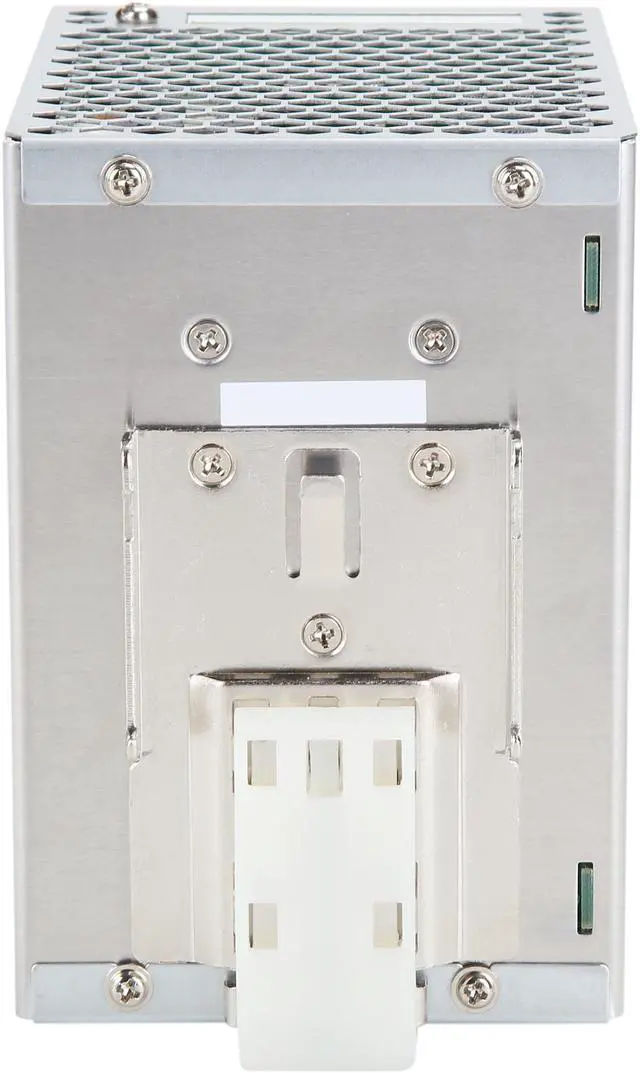

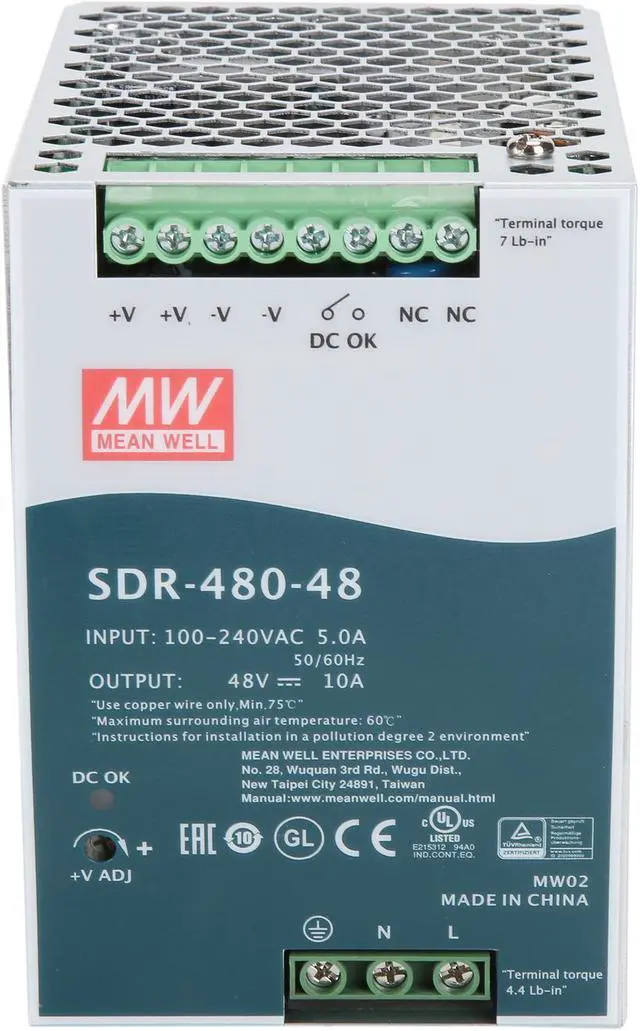

TRENDnet TI-S48048 (v1.0R) 480W, 48V DC, 10A AC to DC DIN-Rail Power Supply with PFC Function

Be the first to review this product...
  • TI-S48048 (v1.0R)
  • Power Supply
Specs
Reviews

Learn more about the TRENDnet TI-S48048 (v1.0R)

Model
Brand TRENDnet
Model TI-S48048 (v1.0R)
Details
Type Power Supply
Specifications Interface:
Input: 90-264V AC, 47-63 Hz, 1.8A, 127-370V DC
Output: 480W, 48V, 10A
DIN-rail: TS-35 / 7.5 or 15

Housing:
DIN-rail mount
Power LED indicator

Operating Temperature: -25 degree - 70 degree C (-13 degree - 158 degree F)

Operating Humidity: Max. 95% non-condensing

MTBF: 1,129,000 hours

Dimensions: 3.40" x 4.90" x 5.10"

Weight: 3.50 lbs.

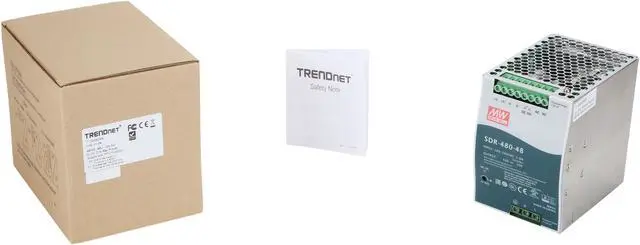

Package Contents: TI-S48048 (Mean Well SDR-480-48)
Features
Features Industrial power supply with integrated DIN-rail mount

Provides up to 480W of power (48V DC, 10A)

High efficiency 94% and low power dissipation

150% peak load capability

Built-in active Power Factor Controller (PF > 0.94)

Cooling by free air convection

Protections: Short circuit, overload, over voltage, over temperature

UL 508 approved

Built-in DC OK relay contact

100% full load burn-in test

-25 degree - 70 degree C (-13 degree - 158 degree F) operating temperature range
Additional Information
Date First Available January 24, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
