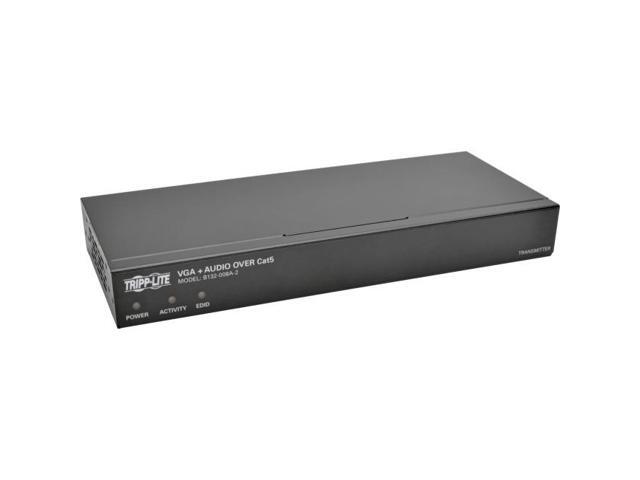

    Tripp Lite B132-008A-2 8-Port VGA + Audio Over Cat5/Cat6 Extender Splitter w/EDID 1000'

    Be the first to review this product...
    • Requires Tripp Lite remote receivers (sold separately)
    • Extends 1024 x 768 @ 60 Hz audio/video signal up to 1,000 ft.
    • Extends 1920 x 1440 @ 60 Hz audio/video signal up to 500 ft.
    • Daisy-chain up to 6 units to extend signal to 49 displays
    • 1-Year Limited Warranty
    +
    +
    Overview
    Specs
    Reviews

    Split a Single VGA + Audio Signal into 9 Signals

    Tripp Lite’s B132-008A-2 8-Port VGA + Audio over Cat5/Cat6 Extender/Splitter works with a B132-100A or B132-100A-WP-1 remote receiver (sold separately) to split a VGA + audio signal into nine separate signals—one local and eight remote. It’s ideal for digital signs, trade shows and other applications where the source is located farther than conventional cables allow or that require multiple displays connected to one source.

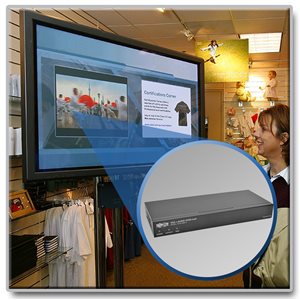

    Typical Applications
    • Digital sign applications requiring multiple displays in a school, church or retail location
    • Presenting promotional videos at a trade show
    Split a Single VGA + Audio Signal into 9 Signals
    Split a Single VGA + Audio Signal into 9 Signals
    Split a Single VGA + Audio Signal into 9 Signals
    Extend High-Definition Signals Up to 1,000 ft.

    When used with Tripp Lite’s B132-Series active remote receivers, the B132-008A-2 can extend a 1920 x 1440 (60 Hz) signal up to 500 feet and a 1024 x 768 (60 Hz) signal up to 1,000 feet. The unit uses VGA cable to connect to the source and displays and Cat5e/6 cable to transmit to the remote receivers.



    Split a Single VGA + Audio Signal into 9 Signals
    Daisy-Chain Units to Reach More Remote Displays

    By daisy-chaining up to six units, one audio/video source can transmit to as many as 49 displays—48 remote and one local. Add up to three B132-110A remote repeaters (sold separately) to each channel to fully extend the signal range or add more displays. You can extend a 1920 x 1440 (60 Hz) signal up to 500 feet or a 1024 x 768 (60 Hz) signal up to 1,000 feet from the first repeater in the chain to the last receiver.


     Easy to Set Up and Use

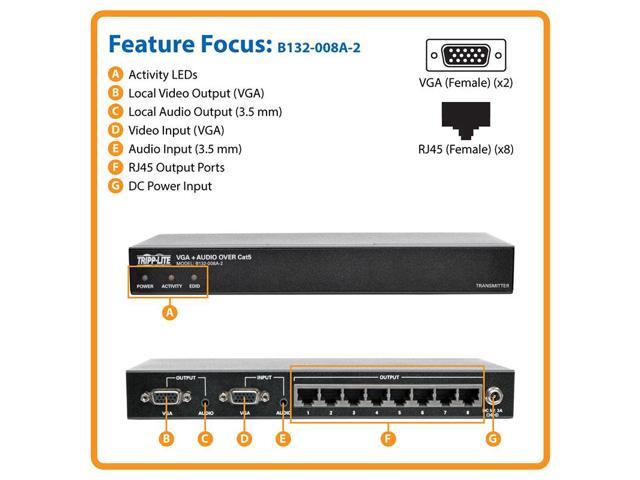

    The B132-008A-2 also delivers high-quality audio and copies EDID information from a connected display to ensure optimal compatibility. It’s a breeze to set up with no software or drivers to install, and mounts to a wall, rack or pole using the included hardware. Convenient LEDs indicate at a glance when the unit is receiving power and a VGA signal from the source.
    Split a Single VGA + Audio Signal into 9 Signals
    TAA-Compliant for GSA Schedule Purchases

    The B132-008A-2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.


     One-Year Warranty and Environmentally Responsible Design

    The B132-008A-2 comes with a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
    Split a Single VGA + Audio Signal into 9 Signals

    Tripp Lite B132-008A-2 Product Summary
    • Splits one VGA + audio signal into 9 separate signals (8 remote, 1 local)
    • Ideal for applications where the source is located farther than conventional cables allow or that require multiple displays connected to one source
    • Tripp Lite B132-100A or B132-100A-WP-1 remote receiver required for each remote signal
    • Extends a 1920 x 1440 (@ 60 Hz) signal up to 500 ft. away from the audio/video source
    • Extends a 1024 x 768 (@ 60 Hz) signal up to 1,000 ft. away from the audio/video source
    • Supports high-quality audio
    • Daisy-chain up to 6 units to extend the original audio/video signal to as many as 49 displays (48 remote, 1 local)
    • Plug-and-play engineering—no software or drivers to download and install
    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
    • One-year warranty
    Split a Single VGA + Audio Signal into 9 Signals
    What’s in the Box
    • B132-008A-2 8-Port VGA + Audio Over Cat5/6 Extender Splitter
    • External Power Supply (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
    • VGA + Audio Daisy-Chain Cable, 1 Ft.
    • Mounting Hardware
    • Owner’s Manual
    Split a Single VGA + Audio Signal into 9 Signals
    Why Choose Tripp Lite?

    Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
