Aiming pattern: single dot, 625nm LED Illumination: 630nm LEDs
Imager Field of View
46° Horizontal x 29.5° Vertical
Resolution
5 mils
Depth of Scan Field
0 mil - 4.50" at 5 mil - Code 39 0 mil - 8.50" at 10 mil - UPC/EAN 0 mil - 10.50" at 13 mil - UPC/EAN 0 mil - 3.80" at 6.60 mil - PDF417 0 mil - 4.70" at 10 mil - Datamatrix
Pitch
±65 degree
Roll
±360 degree
Yaw
±60 degree
Scan Speed
Up to 90 in./2.3 m per second
Print Contrast Ratio (Minimum)
25%
Electrical
Regulatory
Electrical Safety UL6950-1, CSA C22.2 No. 60950-1:2nd ed., EN60950-1: 2nd ed. + A11: 2009 IEC60950-1: 2nd ed. LED Safety: IEC / EN 60825-1: 2001 Class 1M LED, EN 62471: 2008 IEC 62471: 2006 EMI/RFI: FCC CFR47 Part 15 Class B: 2007, ICES-003 Issue 4 :2004 Class B, EN 55022: 2006 + A1: 2007, EN 55024: 1998 +A1: 2001 + A2: 2003 AS/NZS CISPR22:2006, VCCI:2007 Environmental: Compliant with RoHS Directive 2002/95/EC
Mechanical
Color
Midnight Black
Dimensions
5.51" x 3.23" x 3.15"
Weight
0.59 lb.
Features
Drop
5 feet
Additional Information
Date First Available
March 28, 2024

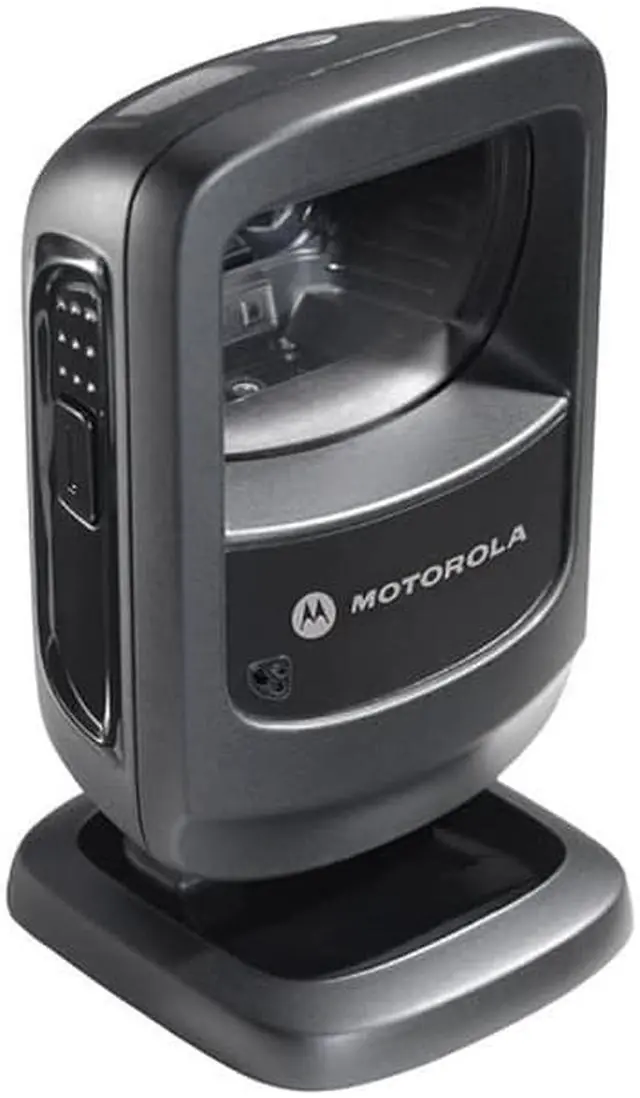

Customer Reviews of the Zebra DS9208
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
