SICK IM18-08BPS-ZC1 Proximity Switch,PNP, New
- SICK IM18-08BPS-ZC1 Proximity Switch,PNP, New
+
+
Overview
Specs
Reviews (1)
SICK IM18-08BPS-ZC1 Proximity Switch, PNP, New Features Housing Cylindrical thread design Housing Standard Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 8 mm Installation type Flush Switching frequency 300 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 1) Mechanics/electronics Supply voltage 10 V DC... 30 V DC Ripple = 10 % Voltage drop = 1 V 1) Current consumption 10 mA 2) Time delay before availability = 100 ms Hysteresis 2 %... 15 % Reproducibility = 5 % 3) 4) Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia = 400 mA Short-circuit protection? Reverse polarity protection? Power-up pulse protection? Shock and vibration resistance 30 g, 11 ms / 10.

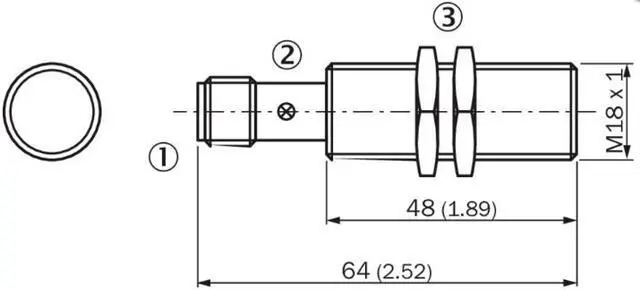

.. 55 Hz, 1 mm Ambient operating temperature –25 °C... +70 °C Housing material Metal, Nickel-plated brass Sensing face material Plastic, Plastic Housing length 64 mm Thread length 48 mm Tightening torque, max. = 30 Nm
.. 55 Hz, 1 mm Ambient operating temperature –25 °C... +70 °C Housing material Metal, Nickel-plated brass Sensing face material Plastic, Plastic Housing length 64 mm Thread length 48 mm Tightening torque, max. = 30 Nm
