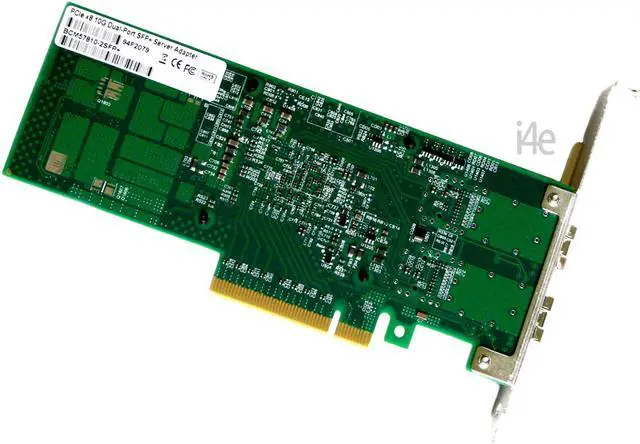

Broadcom NetXtreme II 57810S PCI-e 10Gbps Dual Port SFP+ Server Network Adapter - Dell Compatible

Broadcom Net Xtreme II BCM57810S 10G SFP+ Dual Port Server Network Adapter with TOE.

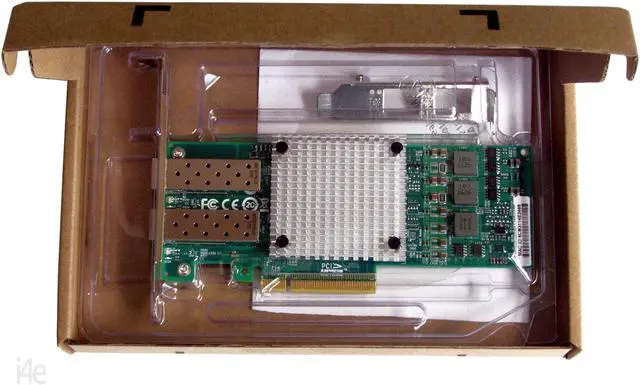

Condition: New. What's Included - Broadcom BCM57810S Dual Port SFP+ PCI-Express x8. - Driver CD. - Optional Half-Size Bracket. The 9812AF SFP+ is a dual-port 10Gb network adapter featuring the next generation BCM57810S single-chip solution from Broadcom in a PCI-e 2.0 compliant form factor. Using Broadcom's market-proven architecture and software, delivers full line-rate performance across all ports with low power consumption. It supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames and PXE boot and virtualization features such as VMware, Net
Queue and Microsoft VMQ. Specifications Mfr.
Part Number: 9812AF.
Network Processor: Broadcom Net
Xtreme II BCM57810S chipset.
Data Rate: 2 ports, each at 20 Gbps full duplex; 40 Gbps aggregate full duplex theoretical bandwidth.
Onboard Memory: 256MB. Bus Type; PCI-e 2.0 x8.
IEEE Compliance: 802.3, 802.3 ae, 802.3 x, 802.2 x, 802.3 ad, 802.1Q az, 802.1Q au, 802.1Q bb, 802.1Q bg, 802.1 ax.
Operating Temperature: 32° to 131° F (0° to 55° C).
Humidity: 5% to 95% non-condensing.
Host Interface: PCI-e x8. Compatible with PCI-e with x8 and x16. Data Rate (s) Supported per
Port: 10, 100, 1000 Mbps.
Bracket Height: Hal-Size and Full Height brackets.
OSs Supported: Microsoft Windows Server


2008. Windows Server 2008 R2. HPC Server 2008. (32 and 64-bit). Microsoft Windows Server Hyper-V. Red Hat Enterprise Linux 5.7 and 6.1. SLES 10 and 11. VMware 4.1 u2 and 5.0 u1. Solaris 10.
Warranty: 2-year limited replacement warranty in the U. S. Features - Industry-leading throughput and latency performance. Up to 40 Gbps bi-directional near line rate throughput. - Hardware acceleration TCP/IP/UDP stateless offloads, as well as for TCP Offload Engine (TOE) Improved small packet performance. - SR-IOV capable in hardware (requires server FW, SW and OS support). - Active Health Systems support via FW (OCBB), I2C capable. - PXE, Jumbo Frames, Checksum & Segmentation Offload, IPv6 and RSS on chip temperature monitor (OCSD). - Standard server operating system support - Support for Preboot eXecution Environment (PXE) Integrated PHY and MAC. - IEEE 1588 (Time Synchronization). Support for SR-IOV (Windows) - Dual-port 10 Gigabit
Ethernet Throughput: The 9812AF SFP+ adapter delivers 20 Gbps full duplex Ethernet transfer rate per port (40 Gbps per adapter), providing the network performance needed to improve response times and alleviate bottlenecks that impact performance of next generation data centers. 10Gb Ethernet bandwidth is ideal for high performance computing, database clusters, and more.
- Jumbo Frames: supports jumbo frames, permitting up to a 9K byte (KB) transmission unit (MTU) when running Ethernet I/O traffic. This is over 5X the size of a standard 1500-byte Ethernet frame. With jumbo frames, networks can achieve higher throughput performance and greater
