Name: EVGA SuperNOVA 1000 G6, 80 Plus Gold 1000W, Fully Modular, Eco Mode with FDB Fan, 100% Japanese Capacitors, 10 Year Warranty, Includes Power ON Self Tester, Compact 140mm Size, 220-G6-1000-X1
Brand: EVGA
SKU: N82E16817438215
Price: 236.34 CAD
Availability: InStock
Rating: 5 (1025 reviews)

EVGA SuperNOVA 1000 G6, 80 Plus Gold 1000W, Fully Modular, Eco Mode with FDB Fan, 100% Japanese Capacitors, 10 Year Warranty, Includes Power ON Self Tester, Compact 140mm Size, 220-G6-1000-X1

Options: SuperNOVA G6 (1000W)

SuperNOVA G7 (750W)
SuperNOVA G7 (650W)
SuperNOVA G6 (1000W)
SuperNOVA G6 (850W)
SuperNOVA G6 (650W)
SuperNOVA G5 (750W)
SuperNOVA G5 (650W)
SuperNOVA G5 (1000W)

80 PLUS Gold certified, with 91% efficiency or higher under typical loads
100% Japanese Capacitors, Fully Modular to reduce clutter and improve airflow
Full-bridge LLC Resonant Converter and DC-DC design leads to tight voltage regulation and extremely low ripple & noise
Fluid Dynamic Bearing Fan and EVGA ECO Mode for ultra-quiet operation and increased lifespan

The EVGA SuperNOVA G6 power supplies feature a new platform design, using new materials and better layout placement to achieve greater performance with extremely low ripple and noise in an even smaller chassis.

Essential Features

Next Gen Platform

With a full-Bridge LLC Resonant Converter, and DC-DC design, the SuperNOVA G6 provides rock-solid stability, relentless efficiency, and extremely tight voltage regulation.

Hardware + Firmware OPP

Hardware OPP is designed to trip at 135% max wattage as a last resort to protect the system, but the SuperNOVA G6 also features firmware OPP to anticipate harmful load behavior 5-10% sooner by shutting off the power supply when over-power conditions persist longer than 1ms while avoiding an instantaneous overload trigger protection malfunction during momentary peak wattage.

Smaller Size, Bigger Performance

The improved efficiency and voltage regulation minimizes heat, allowing the SuperNOVA G6 to be EVGA’s shortest ATX Gold-certified power supply.

Ultra-Quiet 135mm FDB Fan with EVGA ECO Mode

To reduce noise, the SuperNOVA G6 maximizes the time the power supply stays silent or quiet at low to medium loads when ECO Mode is enabled.

Protection

(OVP) Over Voltage Protection
(OCP) Over Current Protection
(SCP) Short Circuit Protection
(UVP) Under Voltage Protection
(OTP) Over Temperature Protection
(Dual OPP) Over Power Protection - Hardware + Firmware

Type	ATX12V / EPS12V
Maximum Power	1000 W
Fans	1 x 135mm Fluid Dynamic Bearing Fan
PFC	Active
Main Connector	24Pin
+12V Rails	Single
PCI-Express Connector	8 x 6+2-Pin
SATA Power Connector	12
Haswell Support	Yes
Max PSU Length	140 mm
Modular	Full Modular
Efficiency	91% or higher (under typical load)
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	13 - 6.5 A
Output	+3.3V@25A, +5V@25A, +12V@83.3, -12V@0.5A, +5Vsb@3A
MTBF	100,000 Hours
Approvals	TUV / CB (62368) / CE / FCC / RCM / cTUVus / WEEE / RoHS / Compliance with ErP Lot 3 2014 Requirement

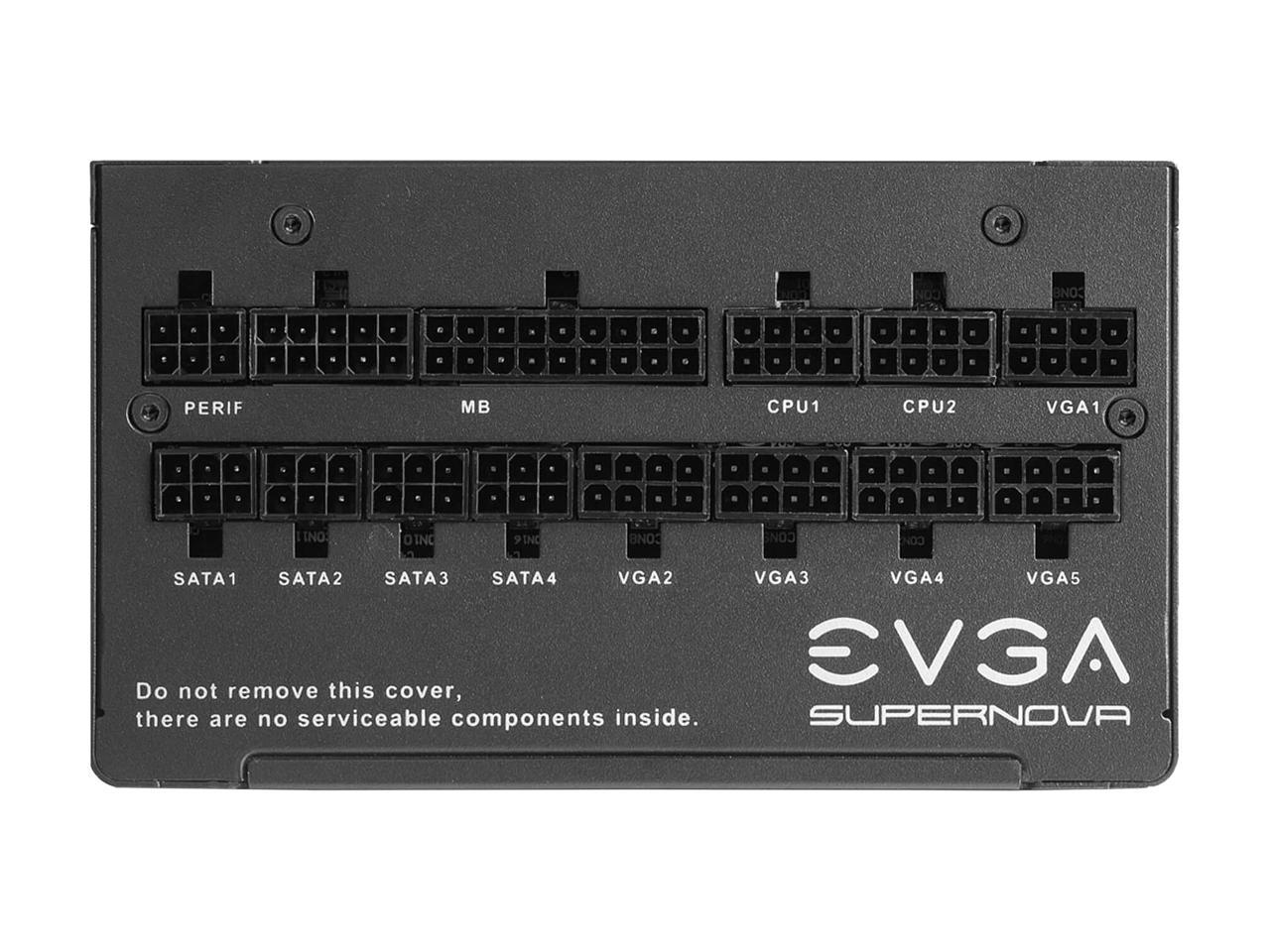

Connectors	1 x 24-pin ATX 2 x 8-Pin EPS (4+4) 8 x 8-Pin PCIe (6+2) 12 x SATA 4 x Four-Pin Peripheral 1 x Floppy
