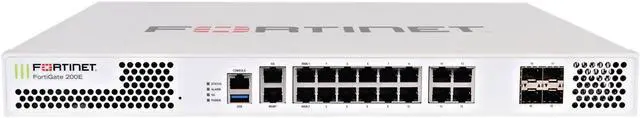

Fortinet FortiGate 200E - security appliance FG-200E

Specifications
General
Device Type Security appliance
Height (Rack Units) 1U
Weight 11.9 lbs
Processor / Memory / Storage
Processors Installed Fortinet FortiASIC CP9/NP6Lite
Networking
Form Factor Rack-mountable
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Performance Firewall throughput (1518-byte UDP): 20 Gbps ¦ Firewall throughput (512-byte UDP): 20 Gbps ¦ Firewall throughput (64-byte UDP): 9 Gbps ¦ Firewall latency (64-byte UDP): 3 µs ¦ Firewall throughput: 13.5 Mpps ¦ VPN throughput (512-bit IPSec): 9 Gbps ¦ VPN throughput (SSL): 900 Mbps ¦ IPS throughput (HTTP): 6 Gbps ¦ IPS throughput: 2.2 Gbps ¦ SSL inspection throughput: 1 Gbps ¦ Application control (AVC) throughput: 3.5 Gbps ¦ Threat prevention throughput: 1.2 Gbps ¦ CAPWAP throughput: 1.5 Gbps ¦ NGFW throughput: 1.8 Gbps
Capacity Concurrent TCP sessions: 2000000 ¦ New sessions per second: 135000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 5000 ¦ Concurrent SSL VPN users: 300 ¦ Number of FortiAP devices: 128 ¦ Number of FortiClient devices: 600 ¦ Virtual domains: 10 ¦ Number of FortiToken devices: 1000
Status Indicators Power, status, alarm, HA
Features Firewall protection, VPN support, content filtering, manageable, High Availability, Intrusion Prevention System (IPS), anti-virus protection
Encryption Algorithm SSL
Expansion / Connectivity
Interfaces 2 x 1000Base-T - RJ-45 (WAN) ¦ 14 x 1000Base-T - RJ-45 ¦ 1 x console - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 4 x 1000Base-X - SFP (mini-GBIC) ¦ 2 x 1000Base-T (management) - RJ-45
Miscellaneous
Compliant Standards UL, VCCI, BSMI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, RCM, ICSA SSL-VPN, ICSA IPS
Power
Power Device Internal power supply
Power Redundancy Optional
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 109.9 Watt
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
