The GameMax VP Modular RGB series power supply is crafted for quality, performance, and incredible value. saving energy through its high efficiency of up to 85% efficiency,The VP series utilizes active PFC and provides efficiency during max and low loadsliving up to the performance standards that we are known for.
GameMax VP RGB Range has great features that make it a good choice for people who are looking for an efficient and reliable, good-value power supply. The most suitable cost-performance ratio is the best choice for a system builder.
RGB LED Lighting to power your system with style. Bring your system to life with built-in unique lighting effects that are without additional controlled use,Show your different gaming style power
Dimensions 140 mm (W) x 150 mm (L) x 86 mm (H)
+
+
Overview
Specs
Reviews

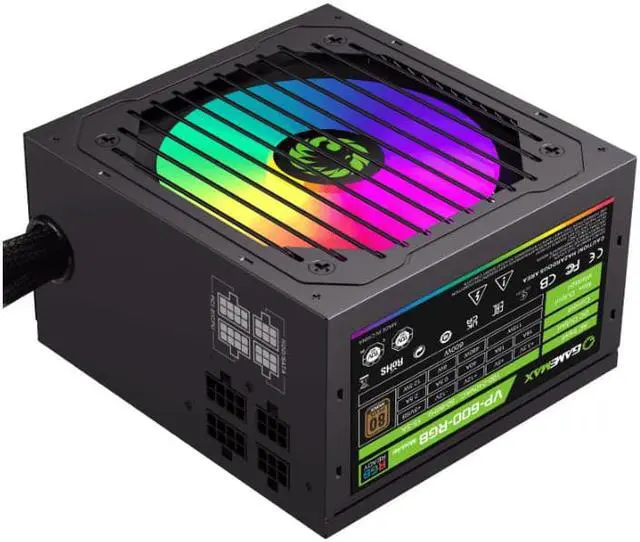

Learn more about the GAMEMAX VP-600-RGB-M
General
Brand
GameMax
Model
VP-600-RGB-M
Details
Color
Black
Maximum Power
600 W
Fans
1 x 120 mm
Fan LED
RGB
PFC
Passive
Main Connector
20+4Pin
PCI-Express Connector
2 x 6+2-Pin
SATA Power Connector
5
Max PSU Length
150 mm

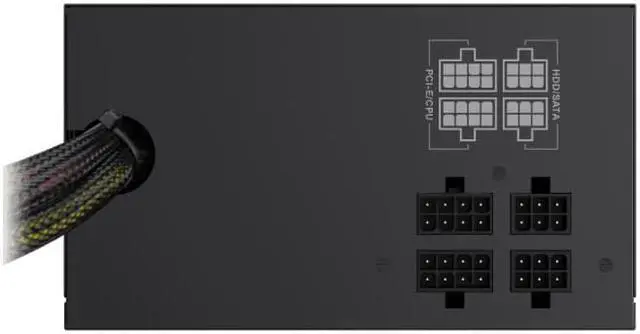

Modular
Semi-Modular
Efficiency
> 80%
Energy-Efficient
Efficiency Level 80+ Bronze
Over Voltage Protection
Yes
Overload Protection
Yes
Protection
OPP, OVP, UVP, OCP, OTP, SCP

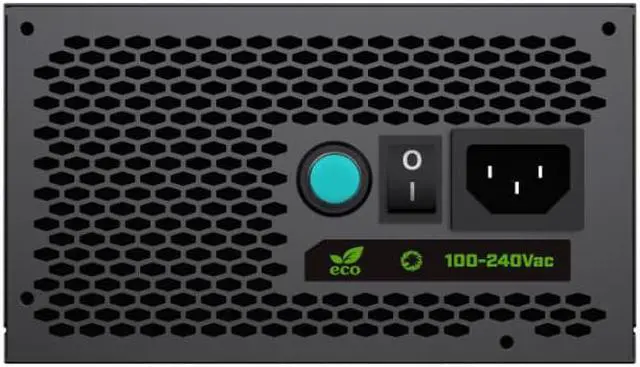

Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Input Current
12-6.3A
MTBF
>100,000 Hours
Approvals
Safety and Environmental Safety and EMC CB, CCC,CE
Dimension & Weight
Dimensions
140 mm (W) x 150 mm (L) x 86 mm (H)
Weight
2 KG
Output
+3.3V Max. Current
18A
+5V Max. Current
18A
+12V1 Max. Current
40A
-12V Max. Current
0.5A
+5VSB Max. Current
2.5A
Fans
Fans Total Quantity
1
Top Fans Size
120mm
Top Fans Bearing Type
Fluid Dynamic Bearing
Top Fans LED
RGB
Protection
Over Voltage Protection
Yes
Over Load Protection
Yes
Short Circuit Protection
Yes
Under Voltage Protection
Yes
Over Current Protection
Yes
Over Power Protection
Yes
Over Temperature Protection
Yes
Additional Information
Date First Available
July 20, 2023
