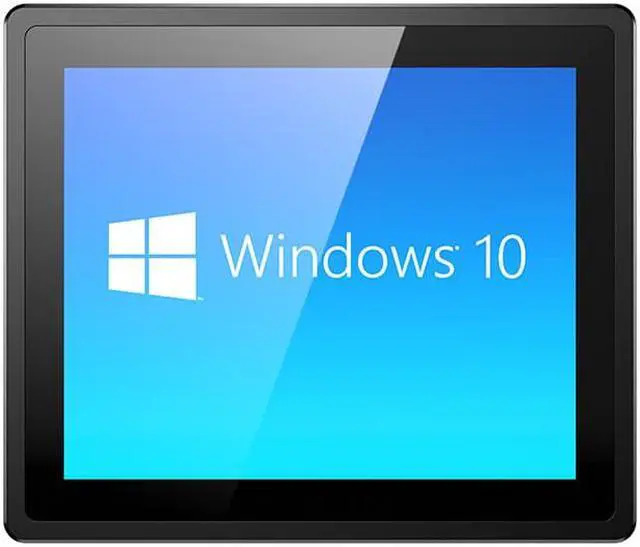

DPC-5122S 12.1" Core i3/i5/i7 Resistive Industrial Panel PC (Bulk purchases)

The following configuration information is the same except that the CPU is different
Note: Please prepare the adapter by yourself
System CPU Intel®Skylake Core I5-6200U ( 2.3GH z)
Memory 2 SO-DIMM DDR4-2133 (Maximum support 32GB)
Storage 1 x 2.5 Driver Bay for SATA HDD/SSD
1 x Full-size Mini-PCIe for mSATA SSD
Operating System Windows 7/ 8.1 /10
Display size 12.1 inches
Resolution 1024 × 768
Visual angle 80/80/80/80
Brightness 450 cd/m²
Backlight LED
Backlight life 50000 hrs
VGA supports up to 1920X1200@60Hz resolution
HDMI supports up to 4096X2304@24Hz resolution
Multiple Display Dual Display (LVDS + VGA/HDMI)
Touchscreen Type Five-wire resistive full-flat touchscreen
Light transmittance 80%
Surface hardness 35 million times
Click life 3H

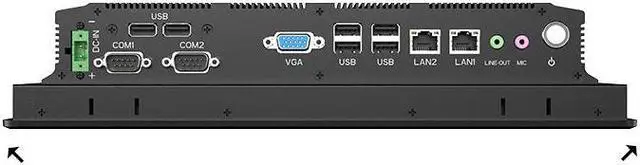

I/O Interface Serial 2 x RS-232 (COM1/2)
USB Port 2 x USB 3.0
2 x USB 2.0
Ethernet 2 x GbE LAN
Video Interface 1 x HDMI, 1 x VGA
Audio Interface 1 x Line-out, 1 x Mic
Other 1 x Power Connector (2-Pin Phoenix)
1 x extension switch port
1 x ATX switch
Expansion Mini-PCIe 1 x Full-size Mini-PCIe for mSATA
1 x Full-size Mini-PCIe
Power

Specifications

Power Input DC 12V
Power Adapter AC-DC, 12V@5A, 60W
Power consumption 25W (Typ. )
Environmental

Specifications

Operating Temperature -10~50°C
Storage temperature -20~60
Relative humidity 10%-90%, @ 40°C (non-condensing)
Vibration Shock 5~500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Certification CE, FCC
Physical

Specifications

Material Aluminum Alloy Panel, All Metal Construction
Mounting method Panel-mount, VESA-mount
Dimensions (W x L x H) 310X248X 62.5 mm
Weight 3.8K g
Packing List Packing List 1 x DPC-5122S
1 x AC-DC Power Adapter
1 x Certificate of Qualification
1 x Warranty Card
8 x panel mount clips
