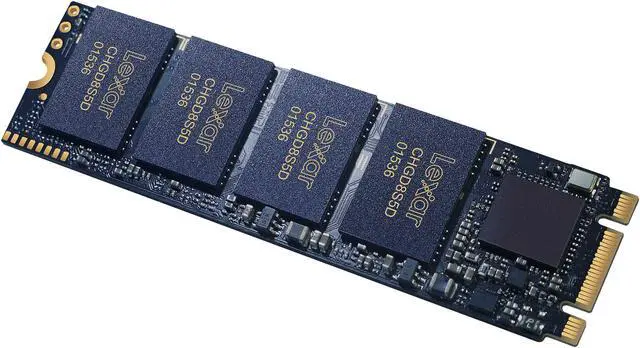

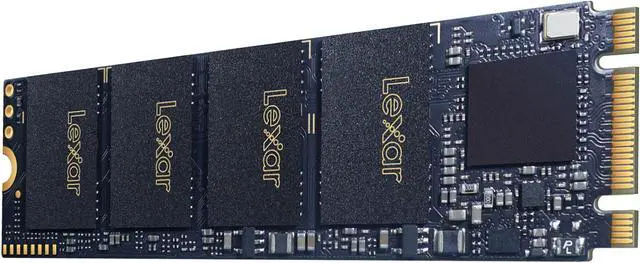

Lexar NM500 M.2 2280 512GB PCI-Express 3.0 x2 3D TLC Internal Solid State Drive (SSD) LNM500-512RBNA

Options: 512GB

512GB
256GB
128GB

M.2 2280
512GB
PCI-Express 3.0 x2

Overview

Specs

512GB INT SSD NM500 VALUE PCIE G3X2 RTL

Model
Brand	Lexar
Series	NM500
Model	LNM500-512RBNA
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer

Details
Form Factor	M.2 2280
Capacity	512GB
Memory Components	3D TLC
Interface	PCI-Express 3.0 x2

Performance
Max Sequential Read	Up to 1650 MBps
Max Sequential Write	Up to 1000 MBps
4KB Random Read	Up to 92,000 IOPS
4KB Random Write	Up to 92,000 IOPS
MTBF	1,500,000 hours

Features
Features	Upgrade from SATA to an entry-level PCIe NVMe performance Get 2.5x the speed of a SATA-based SSD Ideal for smaller notebooks Features SSD Dash software management* * To download SSD Dash management software, please go to http://www.lexar.com/support/downloads/ Shock and vibration resistant with no moving parts

Environmental
Power Consumption (Active)	Active write: 3015 mW Active read: 3220 mW (Maximum)
Operating Temperature	0°C ~ +70°C
Storage Temperature	-40°C ~ +85°C
Max Shock Resistance	1500G, duration 0.5 ms, Half Sine Wave
Max Vibration Resistance	10~2000 Hz, 1.5mm, 20G, 1 Oct/min, 30 min/axis (X,Y,Z)

Dimensions & Weight
Height	2.25mm
Width	22.00mm
Depth	80.00mm
Weight	9.00g

Additional Information
Date First Available	March 08, 2019
