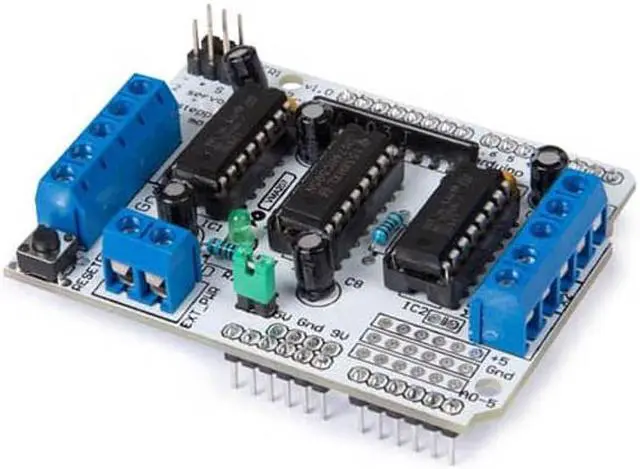

WPSH207 - MOTOR DRIVER SHIELD L293D 2 SERVO OR STEPPER OR 4 DC MOTOR
- Two (2) L293D Motor Driver Chips
- Four (4) HBridges
- 0.6 A per Bridge (1.2 A peak)
- Thermal Shutdown Protection
- Internal Kickback Protection Diodes
- Control up to Four (4) BiDirectional DC Motors
- Or Control up to Two (2) Stepper Motors
- Pulldown Resistors Disable Motors During Powerup
- Separate Logic and Motor Power Connections
- Terminal Block Connectors for Motors and Power
- Motor Voltages from 4.5 VDC to 16 VDC
- Two (2) Connections for 5 V Hobby Servos
- Dimensions: 6.8 cm x 5.5 cm x 2 cm...
+
+
Overview
Specs
Reviews
This motor shield contains two (2) L293D Motor driver chips Four (4) HBridges 0.6 A per bridge (1.2 A peak) . A 74HC595 shift register and extends the pins on the Arduino from 3 to 8 which allows controlling the direction for the motor drivers. Features
- Two (2) L293D Motor Driver Chips
- Four (4) HBridges
- 0.6 A per Bridge (1.2 A peak)
- Thermal Shutdown Protection
- Internal Kickback Protection Diodes
- Control up to Four (4) BiDirectional DC Motors
- Or Control up to Two (2) Stepper Motors
- Pulldown Resistors Disable Motors During Powerup
- Separate Logic and Motor Power Connections
- Terminal Block Connectors for Motors and Power
- Motor Voltages from 4.5 VDC to 16 VDC
- Two (2) Connections for 5 V Hobby Servos
- Dimensions: 6.8 cm x 5.5 cm x 2 cm
