1821-FH1 - RASPBERRY PI3+ 16GB 7IN LCD KIT COMPUTE MODULE IO BOARD+ DEV KIT

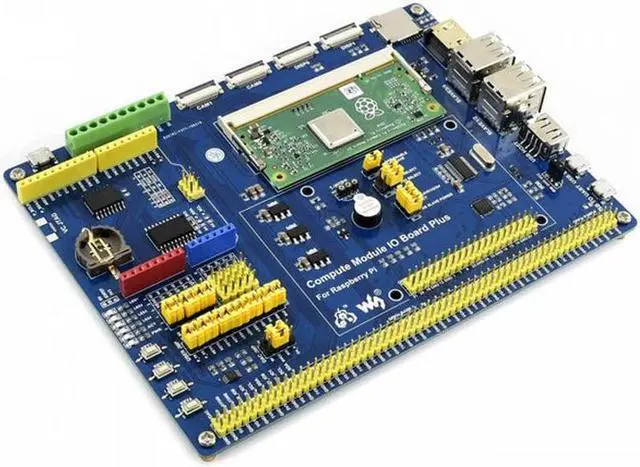

The Compute Module IO Board Plus is a development board which you can plug a Raspberry Pi Compute Module into and make use of the resources of Pi more flexibly. It is compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation along with various common use components.

• Compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation
• Raspberry Pi GPIO header for connecting sorts of Raspberry Pi HATs
• Arduino connectivity also supports Arduino shields
• 1-WIRE interface for connecting single-bus devices like DS18B20
• 4x keys 4x LEDs 1x Buzzer for I/O testing
• Onboard USB HUB allows connecting more USB devices
• IR receiver IR remote control is available
• Onboard USB TO UART for serial debugging
• Sensor interface
• 10-bit ADC 38KSPS 11-ch (6-ch for Arduino interface 5-ch for sensors)
• 16-bit DAC 2-ch
• Onboard RTC one of the most common and useful functions

1. Compute Module interface: for connecting Compute Module (CM3 / CM3L / CM3+ / CM3+L)
2. Compute Module GPIO header: breakout all the Compute Module pins
3. Raspberry Pi GPIO header: for connecting Raspberry Pi HATs
4. CSI interface: camera ports for connecting Raspberry Pi Camera
5. DSI interface: display ports for connecting Raspberry Pi LCD
6. HDMI port
7. USB ports: for connecting USB devices
8. USB SLAVE interface: allows you to burn system image in to Compute Module 3/3+
9. USB TO UART interface: for serial debugging
10. Arduino header: for connecting Arduino shields
11. AD/DA input/output screw terminals
12. 1-WIRE interface: for connecting single-bus devices like DS18B20
13. Sensor interface
14. Power port: 5V 2.5A
15. FE1.1S: USB HUB chip
16. 12MHz crystal
17. CP2102: USB TO UART converter
18. Micro SD card slot: insert a Micro SD card with pre-burnt system to start up Compute Module 3/3+ Lite variant
19. TLC1543: AD converter
20. DAC8552: 16-bit DAC 2-ch
21. DS3231: high-precision RTC chip I2C interface
22. RTC battery holder: supports CR1220 batteries
23. Voltage regulator: 3.3V / 2.5V / 1.
