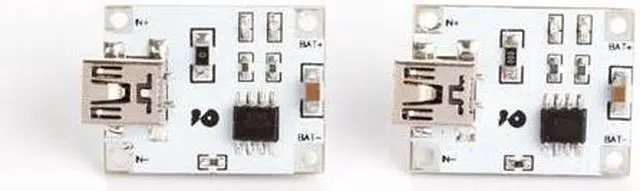

Main image of VMA321 - LITHIUM-ION BATTERY CHARGER 1A TP4056 BASED CURRENT ADJUST LIPO (2 pcs/pkg)

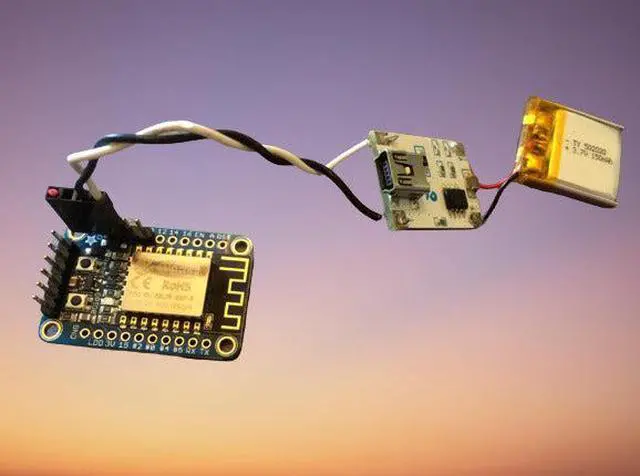

Alt view image 2 of 3 - VMA321 - LITHIUM-ION BATTERY CHARGER 1A TP4056 BASED CURRENT ADJUST LIPO (2 pcs/pkg)

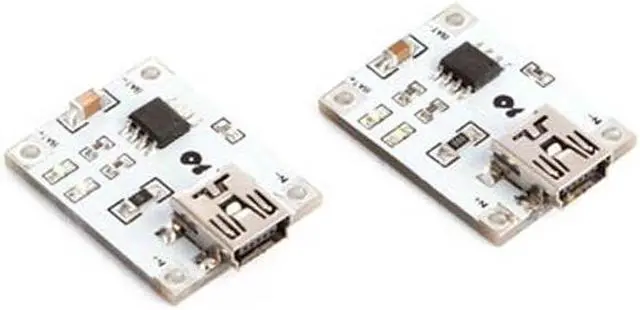

Alt view image 3 of 3 - VMA321 - LITHIUM-ION BATTERY CHARGER 1A TP4056 BASED CURRENT ADJUST LIPO (2 pcs/pkg)

Visit Sayal electronics Store

VMA321 - LITHIUM-ION BATTERY CHARGER 1A TP4056 BASED CURRENT ADJUST LIPO (2 pcs/pkg)

input voltage: 4.5 to 5.5 VDC (by onboard USB connector)
charging current: 1 A adjustable
charge accuracy: 1.5 %
full charge voltage: 4.2 V
charge indicator: green = fully charged red = charging
working temperature: 10Â°C to +80Â°C
weight: 10 g
dimensions : 25 x 19 x 10 mm
Sold as a pack of two charging boards...

Overview

Specs

Reviews

The TP4056 based VMA321 module is a complete constantcurrent/constantvoltage linear charger for single cell lithiumion batteries. ^{Specifications:}

input voltage: 4.5 to 5.5 VDC (by onboard USB connector)
charging current: 1 A adjustable
charge accuracy: 1.5 %
full charge voltage: 4.2 V
charge indicator: green = fully charged red = charging
working temperature: 10°C to +80°C
weight: 10 g
dimensions : 25 x 19 x 10 mm
Sold as a pack of two charging boards

Schematic diagram of original VMA321 (without NTC) Rprog 1k2 = 1A:
