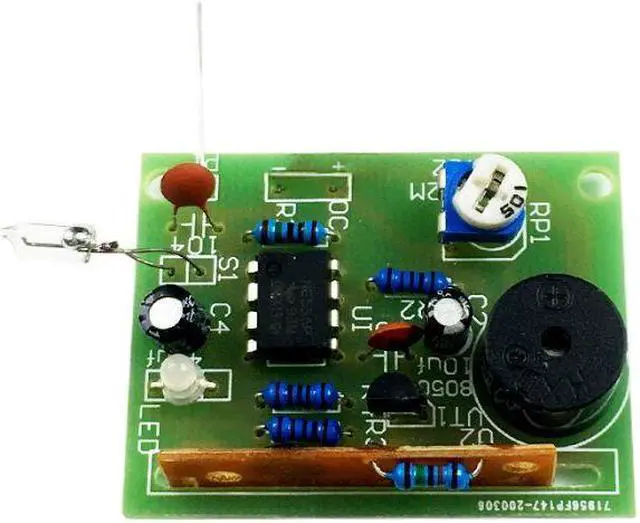

2045-HA1 - ALARM KIT DIY TOUCH VIBRATION INDUCTION COMPONENTS

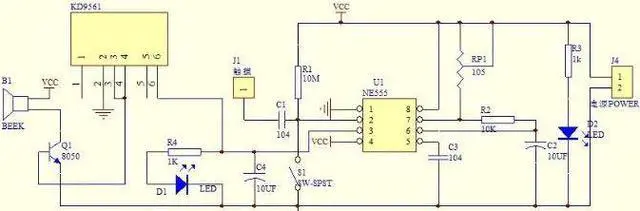

This product is actually shipped as a loose part not a soldered finished product. (This kit is shipped with a schematic diagram a list of components and an introduction to the working principle) Power supply voltage: 36V PCB board size: 4.2CM * 3.2CM Function Introduction: This circuit simulates the design of car and motorcycle antitheft alarm principle with touch delay alarm and vibration delay alarm function. That is when there is a human touch sensor signal the alarm triggers the alarm when the trigger signal is canceled the delay will automatically turn off after a period of time. When there is a vibration signal the alarm will trigger the alarm and when the vibration signal is canceled the alarm will be automatically turned off after a period of delay. Working principle: The touch vibration alarm consists of two parts: touch trigger circuit vibration trigger circuit and alarm circuit. 555 time base circuit U1 forms a typical monostable working mode whose transient time is determined by the values of RP1 R2 and C2. Normally when the circuit is in steady state the 555 time base circuit outputs a low level at pin 3 and the alarm chip does not alarm because there is no power supply. When the human hand touches the electrode piece M the human body induction signal is injected into the 555 trigger terminal 2 pins by C1 or the vibration sensor S1 is instantly connected by vibration which will make the U1 pin 2 appear instant low level so that the 555 time base circuit flips into the transient state the 3 pins suddenly change to high level and the alarm chip is powered to sound the alarm. Once the transient time is over the time base circuit flips back to the steady state and stops the alarm. LED is a twocolor lightemitting diode the green light is on after power on as a power indicator the red and green lights are on when the alarm is on the overall orangeyellow color the resistance value of the resistor R5 determines the speed of the alarm sound playback generally take 180K240K pay attention to the installation of the chip before it is installed to the alarm chip board the whole circuit DC36V can work .

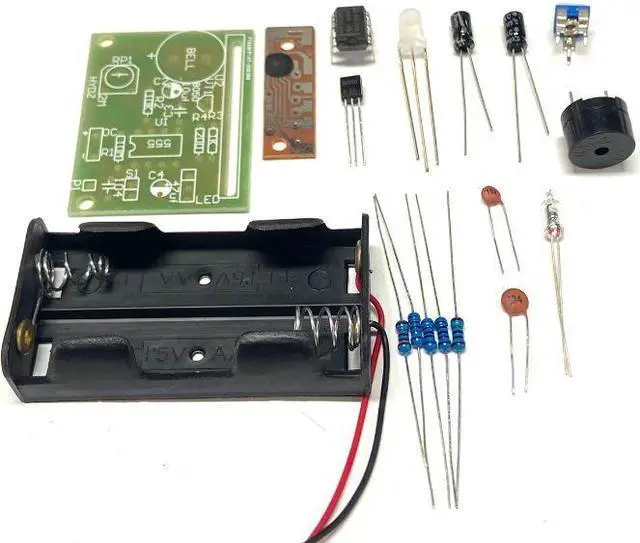

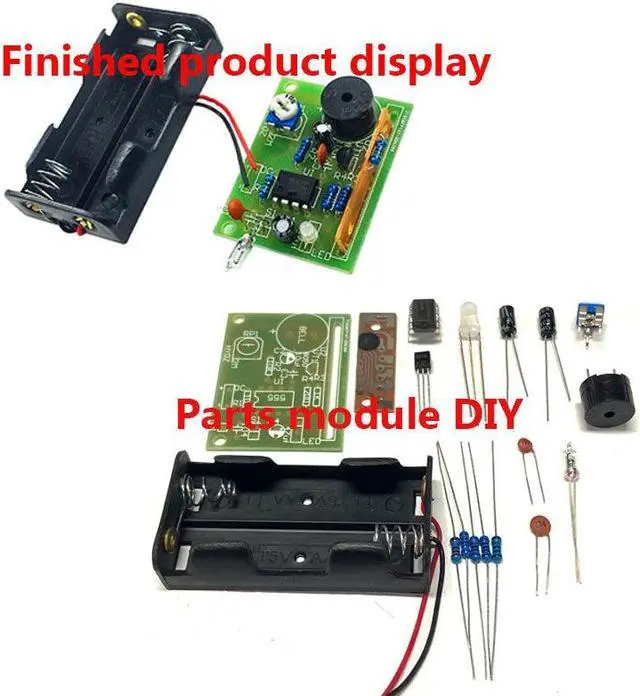

DIY loose parts list.

PCB board 1

Mercury switch 1

KD9561 chip 1

150K resistor 1

10K resistor 1

1K resistor 2

10M resistor 1

3MM LED red 2

104 ceramic chip capacitor 2

10UF25V capacitor 2

8pin chip holder 1

NE555 chip 1

105 blue and white potentiometer 1

8050 triode 1

Passive buzzer 1

No. 5 2 battery box 1

Soldering step 1: first solder the 150K resistor to the top of the music IC 150K put music IC front and back can be while using the resistor excess length of the pin cut down .

Next solder the resistor above the module the resistance is not polarized the resistance value depends on the color code or use multimeter  to  measure the resistor value.

Next solder LED electrolytic capacitors transistors LED.
