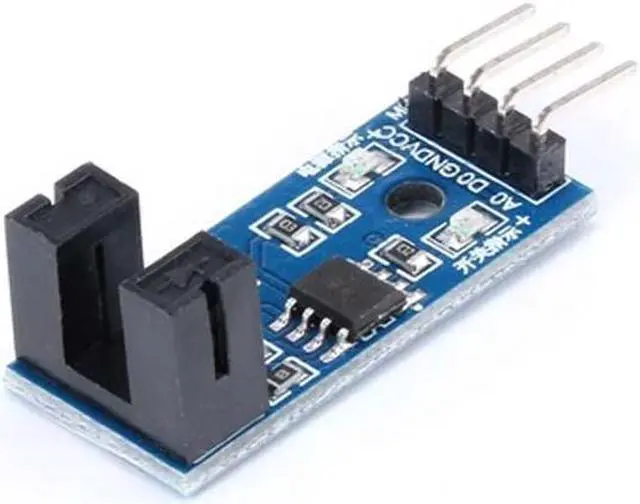

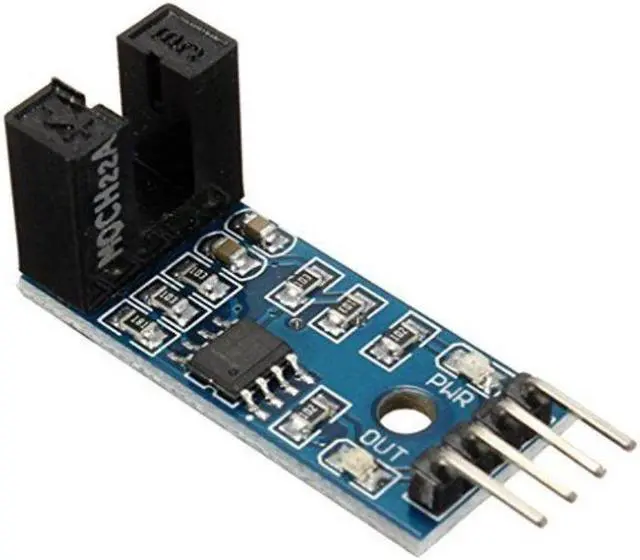

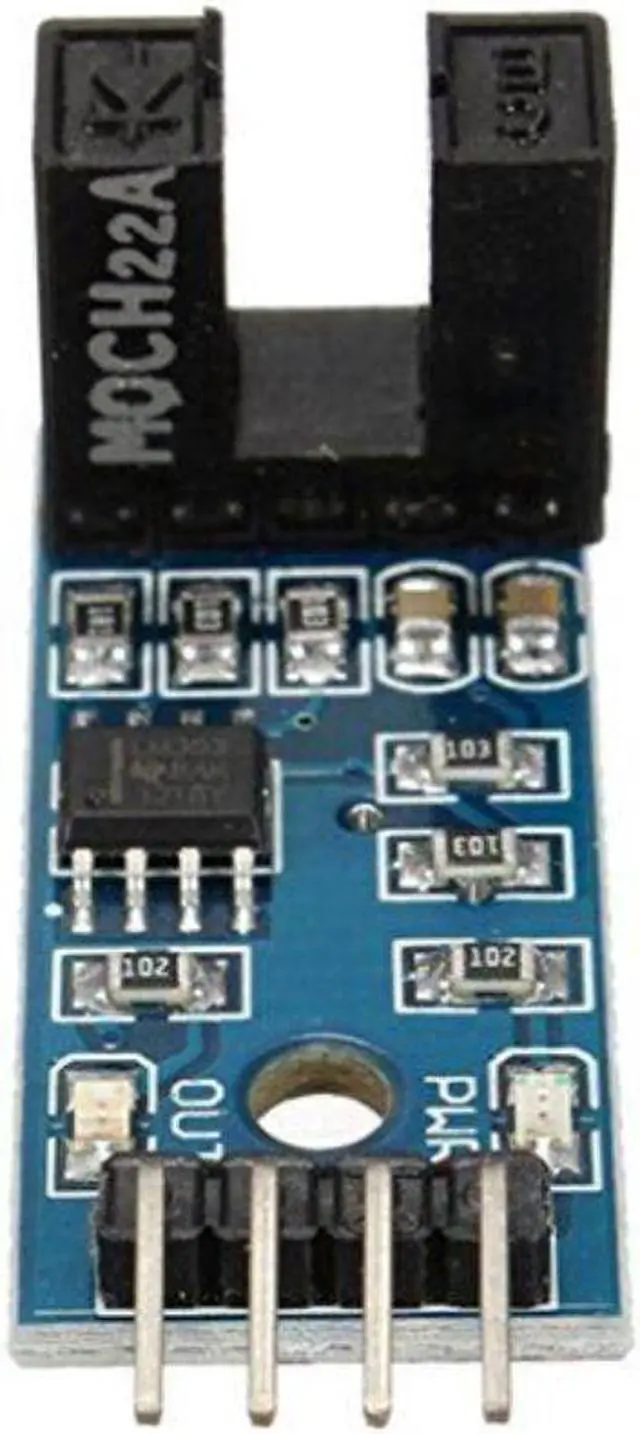

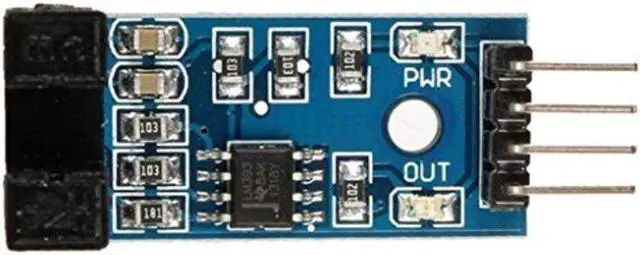

1814-PA1 - SLOT TYPE IR OPTOCOUPLER SPEED SENSOR MODULE LM393 3.3V-5V

This speed sensor has an optical sensor that allows you to measure revolution per minute (RPM). It requires an encoder disc to count the number of times the sensor goes low to high or vice versa we can calculate the revolution in a given period of time. It has an analog and digital output. It is commonly used in robotics speed sensing printers and motor drivers.
Feature: Main
Chip: LM393
Working Voltage: 3.3V to 5V
Output Form: digital switch output (0 and 1)
Output: Covered output high level; Without sunscreen the output low level
Slotted Width: 5mm
Specification: The DO output interface can be directly connected to a microcontroller IO port if there is a block detection sensor such as the speed of the motor encoder can detect DO modules can be connected to the relay limit switch and other functions it can also with the active buzzer module compose alarm

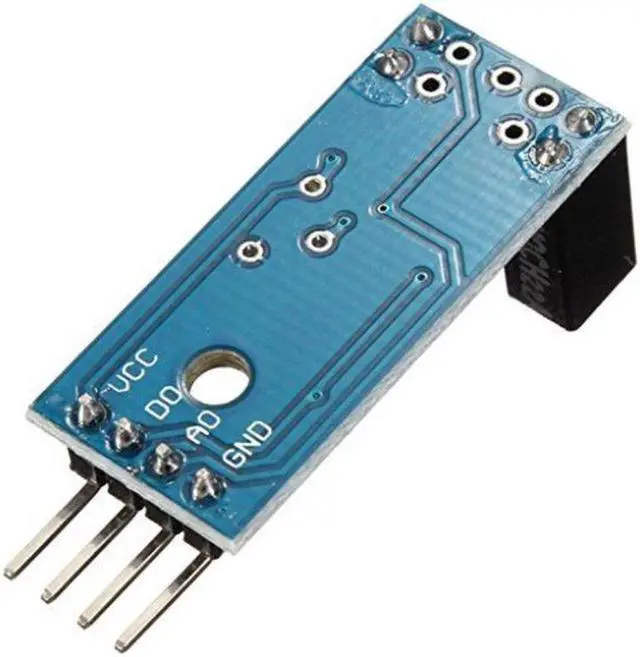

Interface:
VCC: Connect the positive 3.3 v5v power supply
GND: Connect power negative
DO: TTL switch signal output
AO: Invalid
