HPE Instant On AP22 2x2 Wi-Fi 6 Indoor Access Point Gigabit Ethernet PoE R4W05A

Model

R4W05A

Note

Power adapter not included

Overview

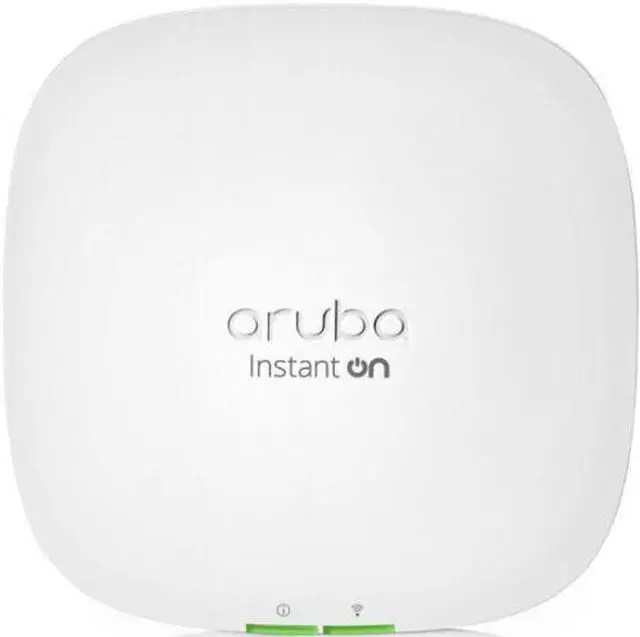

Aruba Instant On AP22

High-speed Wi-Fi designed withsmall businesses in mind.

Perfect for reimagined offices, schools, and retail/ hospitality businesses.

image_1

Small businesses are facing a number of challenges—challenges that need constant attention. The right technology can help you stay on top of them and stay ahead of the curve. Technologies like the ones found inside the AP22.

To meet the increasing needs and volumes of connected devices, Aruba Instant On is announcing its first Wi-Fi 6 access point: AP22. Delivering higher capacity and greater performance at a competitive price, the AP22 is the perfect access point for small businesses with expanding mobile, cloud, and IoT requirements.

Wi-Fi Certified 6™ AP22 access points deliver faster Wi-Fi speeds, greater capacity, and reduced latency between access points and devices for a superior Wi-Fi experience. With the AP22, you can upgrade your Wi-Fi network to boost performance across devices now, while preparing it for more mobile and IoT devices in the future.

Features

• Fast 802.11ax, 2X2:2

• Wi-Fi CERTIFIED 6™ (Wi-Fi 6)

• MU-MIMO performance

• Smart Mesh Wi-Fi support

• Built-in Wi-Fi router/gateway functionality

• Integrated Bluetooth

• Easy-to-use web and mobile app for setup and management

• Secure Guest Wi-Fi with simple setup

• Application classification, control and visibility

Specifications

Radios

Dual radio for simultaneous dual-band operation

5 GHz 802.11ax 2x2 MIMO for up to 1.2Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)

2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)

Maximum (aggregate, Conducted Total) Transmit Power (limited By Local Regulatory Requirements)

5GHz band: +21dBm (+18dBm per chain, 3dB MIMO gain)

2.4Ghz band: +21dBm (+18dBm per chain, 3dB MIMO gain)

Interfaces

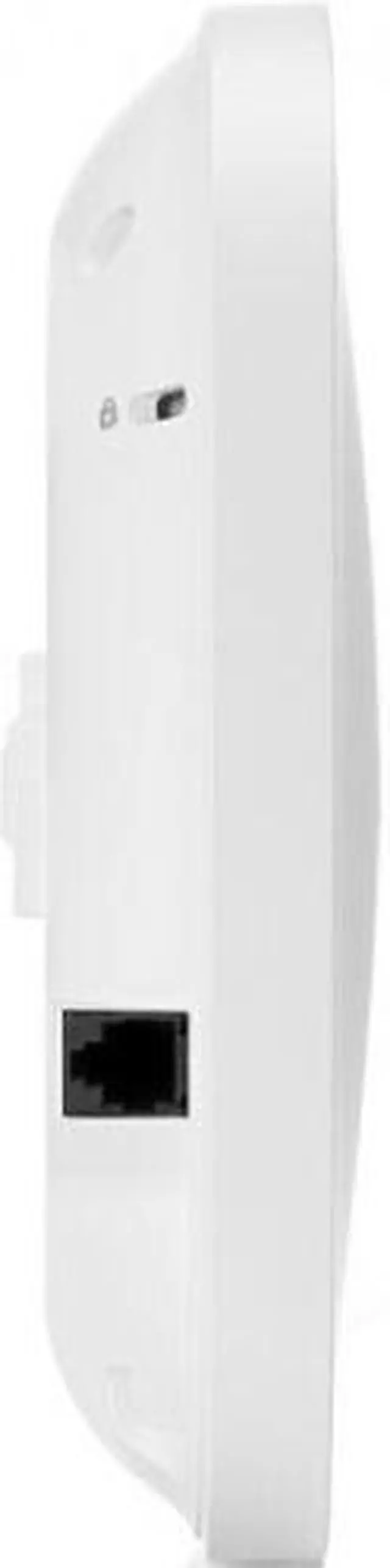

Uplink Gigabit Ethernet port, with PoE-in support (802.3af)

DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators (2) Reset/LED control button Kensington security slot

Physical Specifications

160mm x 160mm x 37mm, excluding mount accessories

Weight: 500g

Power

Power over Ethernet (POE): 802.3af (class 3)

Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC) DC power (12V)

Note: Power sources are sold separately unless you purchase the bundle SKU which comes with power options.


EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)

Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Management Options

Instant On mobile application (Android & iOS)

Cloud Portal: Portal.ArubaInstantOn.com

Environment

Environmental & Reliability

Operating temperature: 0° C to +40° C

(+32° F to +104° F)

MTBF: 795khrs (91yrs) at +25° C

In the Box

Aruba Instant On AP22 Indoor Access Point

Aruba Instant On AP22 Quick Start guide

Combined Ceiling and wall rail mount clip

Ethernet cable
