12 in 1 USB Type C Hub Type-C to 2 HDMI 4K VGA Adapter RJ45 Lan Ethernet SD TF PD USB-C 3.0 3.5mm Audio/Mic

Color: Silver

Material: Aluminum alloy

Size: 152mm*92mm*75mm

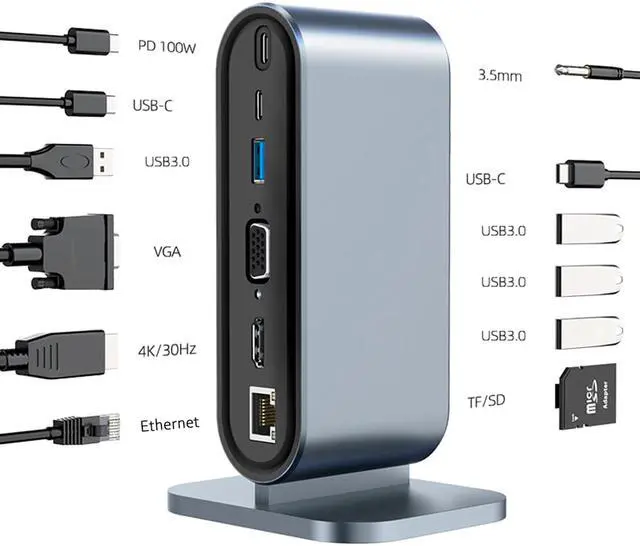

Interface: USB Type C male port

Port-1:USB Type C PD Charging Port , support 100W

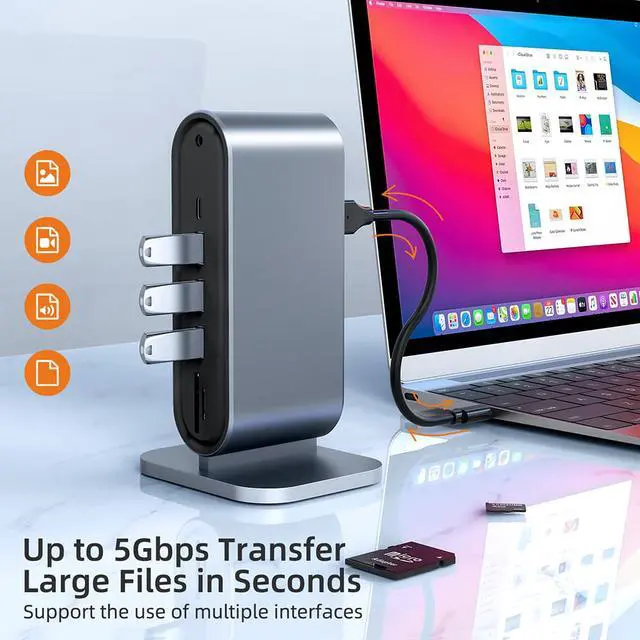

Port-2:USB Type C Female Port for Data Transmission, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

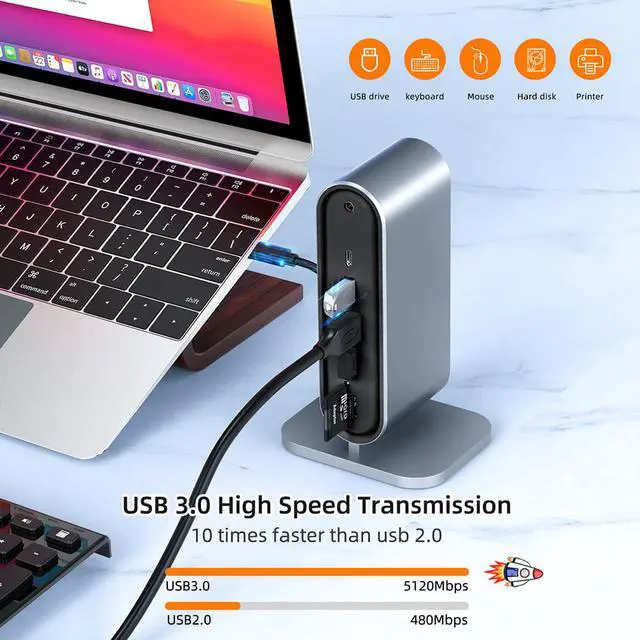

Port-3:USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

Port-4:VGA max support 1080P 60Hz, Downwards Compatible with 1080I, 720P etc.

Port-5:HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.

Port-6:Ethernet Network Adapter RJ45 Port, 10/100Mbps, NOT support 1000Mbps

Port-7:DC 3.5mm Audio Jack Port

Port-8:USB Type C Female Port for Data Transmission, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

Port-9:USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

Port-10:USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

Port-11:USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

Port-12:SD Card Slot

Port-13:Micro SD Card Slot, TF Card Slot



Function-1: Connect Keyboard, Mouse, USB Flash, Printer etc.

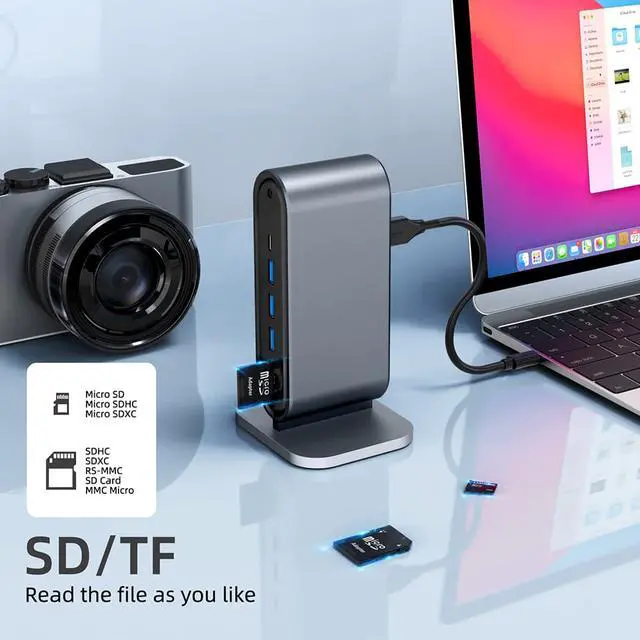

Function-2: Easy to Read Digital Camera Storage SD, Micro SD, TF Card

Function-3: Connect Lan via RJ45, Enjoy more reliable network than wireless

Function-4: Support USB C Power Delivery, Keep laptop the best performance

Function-5: Extend a Larger Screen via HDMI or VGA

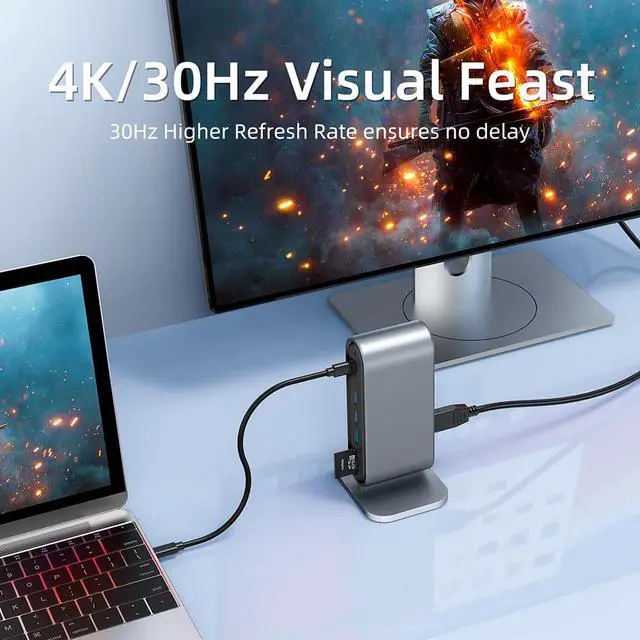

Function-6: Connect Projector, Monitor, HD-TV, HDMI up to 4K 3840x2160 30Hz

Function-7: HDMIs and VGA

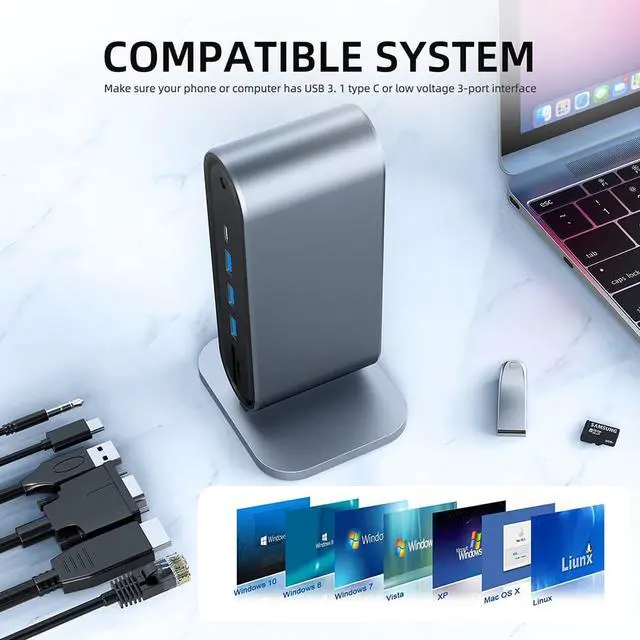

Compatible:

For MacBook 2018/2017, MackBook Pro 2018/2017

For Lenovo ThinkPad T490, T490s, T14 (14")Intel, T480, T480s, T580, T590, T15 (15")Intel

For Lenovo ThinkPad P43s (14"), P14s (14"), P15s (15")

For Lenovo ThinkPad X280, X390, X13(13")Intel, X13 Yoga(13"), X380 Yoga(13")

For Lenovo ThinkPad X1 Yoga Gen 3 (14"), X1 YOGA Gen 4 (14"), X1 Yoga Gen 5 (14")

For Lenovo ThinkPad X1 Carbon Gen 6 (14"), X1 Carbon Gen 7 (14"), X1 Carbon Gen 8 (14")

For Dell XPS 13 9360, XPS 13 9370, XPS 13 9380, XPS 13 7390, XPS 13 9300

For Dell XPS 13 9365 2-in-1, XPS 13 7390 2-in-1

For Dell XPS 15 9575 2-in-1

For Dell Latitude 7400 2-in-1 14"

For Dell Latitude 7200 2-in-1 12", Latitude 7210 2-in-1 12"

For HP SPECTRE x360 15.6'', HP SPECTRE x369 13''

For Surface Book 2

updating...

The other windows laptops MUST require:

The USB-C port on your laptop is a Thunderbolt-3 port.

The USB-C port of the laptop is also a AC(power) port, or you don't want to power the laptop via this docking station.



WARNING TIPS:

1.If you are not sure whether this docking station is compatible with your laptop,please tell me the model of your laptop, I am pleasure to check the compatible.

2.You MUST make sure the host USB-C port is on the left side of your laptop.Because the length of cable maybe not enough to connect USB-C port in the right side when placing this Docking station under the laptop.Or you don't want to place this docking station under the laptop.

3.It supports 4K or 2K when only one HDMI monitor is connecting. When connecting more one monitor, their resolution will all downward to 1080p.

4.When you use the docking station to extend monitors, please connect to monitors first, and then connect to your laptop.Not support HDMI and VGA Hot plug.
