ANCEL S3000 Car Smoke Leak Detector is a universal and professional auto pipe leak detect tool, it will help us position cars motorcycles leakage on the pipe systems quickly and exactly. Supports Intake System Test, Exhaust Systems Test, Crankcase system test, Car Sealing Test, Fuel Tank System Test, Turbo System Test, Various Pipe Fittings Test. It can produce lots of smoke within 30s, help mechanic detect the leaks in pipe system.

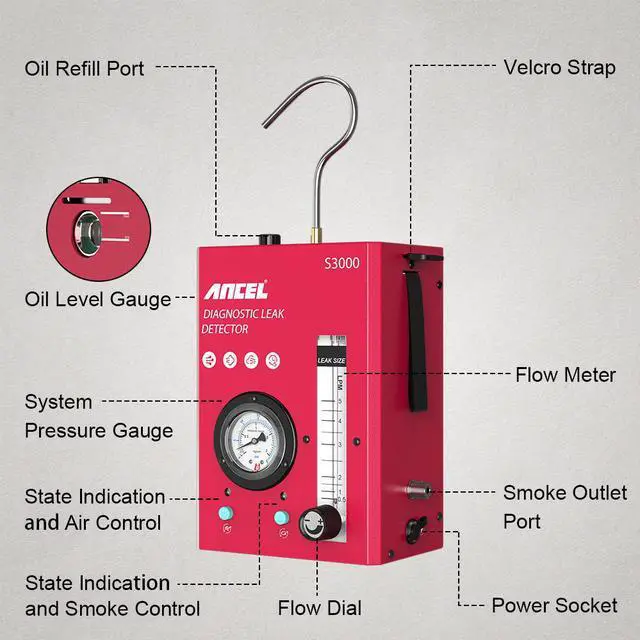

The Automotive EVAP Smoke Machine equipped with a liquid filled pressure gauge. By observing the change of pressure gauge, the leakge situation is clear at a glance.
- Output Flow: <6 L/min
Air flow meter with adjustable button, easy to control the smoke effect.
This machine built-in air compressor, with superior wick and heating element. It can produce smoke instantly by heating up USP mineral oil or baby oil. 4ft Smoke Outlet Pipe can help reach and connect perfectly.
This smoke detector is equipped with the latest intelligent protection device. When the temperature of the device exceeds 75 degrees Celsius, the power protection device will be intelligently activated to turn it off, to ensure the safety of the operator and the device. The device is also suitable for low temperature operation.
The smoke leak detector with easy-use function and portable design, can help mechanic produce lots of smoke within 30s to detect the leaks in pipe system. Dramatically reducing diagnostic time. The hook allows you to hang it on your hood latch, the conical adapter will fit most intakes.
Suitable for all domestic cars, motorcycles, snowmobiles, off-road vehicles, beaches. Cars, light trucks and speedboats, etc. Using together with auto diagnostic tool, you can find the vehicle problem accurately and diagnose fault.
NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.
Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.
Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.
| Output Pressure | 7-12 PSI |
|---|---|
| Power Supply | 12V automobile Battery 6Amp |
| Test Oil Capacity | 10-20ml |
| Length of Smoke Hose | 2.5Meters |
| Main Unit Dimensions | 7.28*5.11*3.34 inch |
| Output Flow | <6 L/Min |
|---|---|
| Air Pressure Output | Built-in air pump |
| Length of Power Cord | 2.5Meters |
| Package Weight | 2.3kg/5 lb |
| Package Dimensions | 12.2*9.44*4.52 inch |
1. Turn OFF the ignition of the vehicle. LEAK TEST OF VEHICLE SYSTEMS REQUIRES THE ENGINE TO BE OFF.
2. Dismantle the air filter and the throttle connections.
3. Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake Adapter into the opening.
4. Connect the Power Cord to 12V vehicle battery.
5. Now the Power LED would be ON, if else check the power supply.
6. Introduce the smoke nozzle into the system via the Adapter Cone.
7. Press Air Control Switch, wait for 30 seconds until the system is pressurized, and check the Pressure Gauge & Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge & Flow Meter
8. Press Smoke Control Switch, .unplug and Plug back the smoke nozzle back into the Cone Adapter when there is obvious smoke coming out of the smoke nozzle.
9. The system will be ready for leak check in 2 minutes. Use a bright light torch or working lamp to assist.
10. After test, press Smoke Control Switch again to stop the unit from generating smoke and press Air Control Switch to stop generating pressurized air.
11. Collect the Smoke Hose and the Power Cord with the Velcro Straps for storage. Hang the unit or make it stand in UPRIGHT position only. Do NOT lay it down.
