ENVIRONMENTAL CHARACTERISTICS:
- Operating Temperature Range: -20~45 (-4~113 F)
- Storage Temperature Range: -30~75 (-22~158 F)
- Operating Humidity Range: 90 %RH Max
- AC Cable Length: 39.3 inches
- DC Cable Length: 21.3 inches
NOTE: If it has been idle for along time, old or cannot be charged, select REPAIR mode to try to activate the battery.
REMARK: for 4Ah-15Ah battery, we suggest use REPAIR mode, because the battery size is too small, use pulse charge is very good for small size battery.
PACKAGE:
1 x Automotive Battery Charger
1 x User Manual

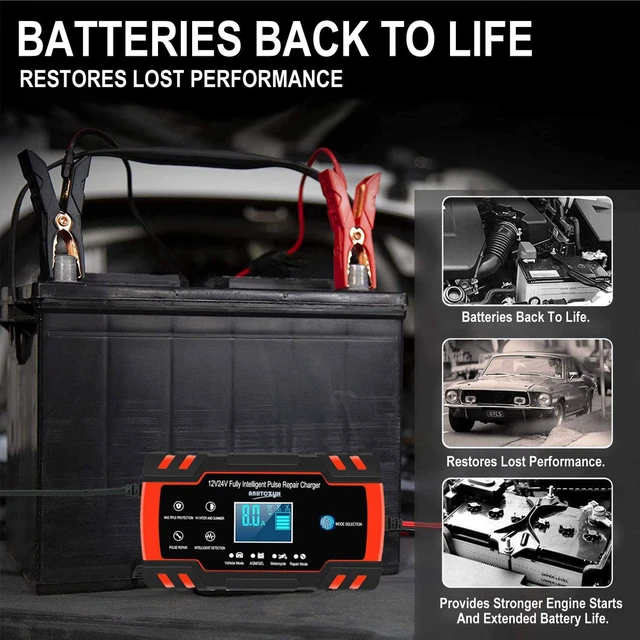

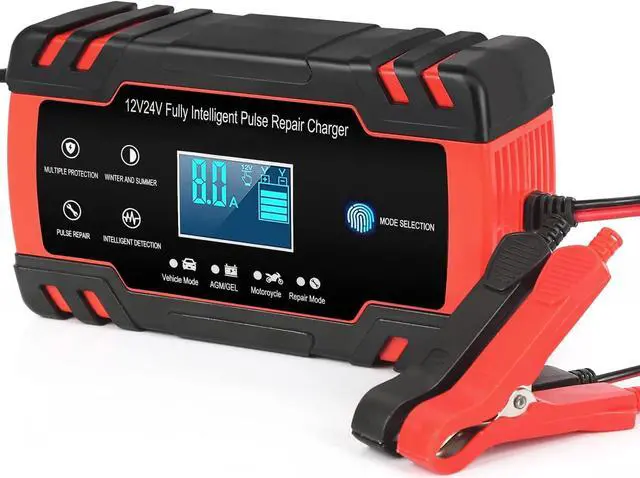

Microprocessor-controlled - automatically adjusts the charge current and maintainability. automatically switching from fast charge, to top-off, then to trickle charge.Pulse repair function can help to repair your loss battery and extend battery life.
NOTE:
Only can repair slightly damaged batteries not a dead battery and cannot repair a battery back to 100% new.
NOTE:
This battery charger is not compatible with lithium-ion batteries.
- Input Voltage: 100-240V 50-60Hz
- Output Current: 12V/8A, 24V/4A
- Input Power with Load: Max.130W
- Input Power No Load: 3.2W
- Material: ABS + PC housing
- Cooling: Fan
- AC Cable Length: 39.3 inches
- DC Cable Length: 21.3 inches
With built-in cooling fan, drop the operating temperature, prolong the service life.

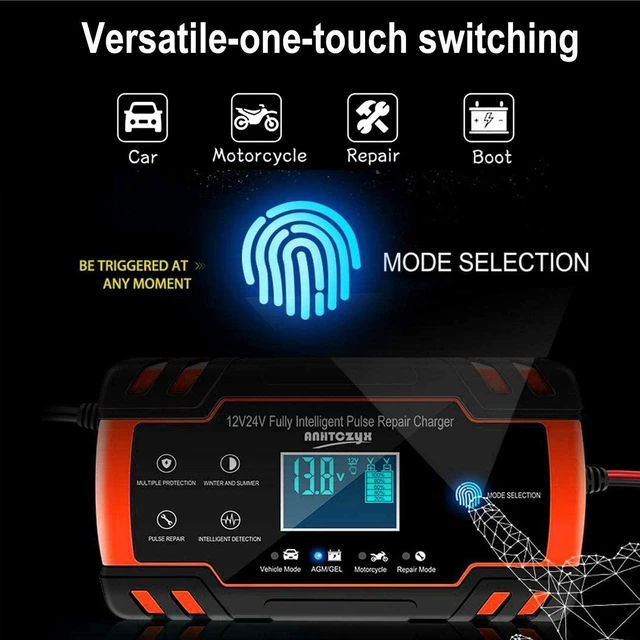

- CAR/TRUCK mode
- Motorcycle mode
- AGM mode
- Repair mode

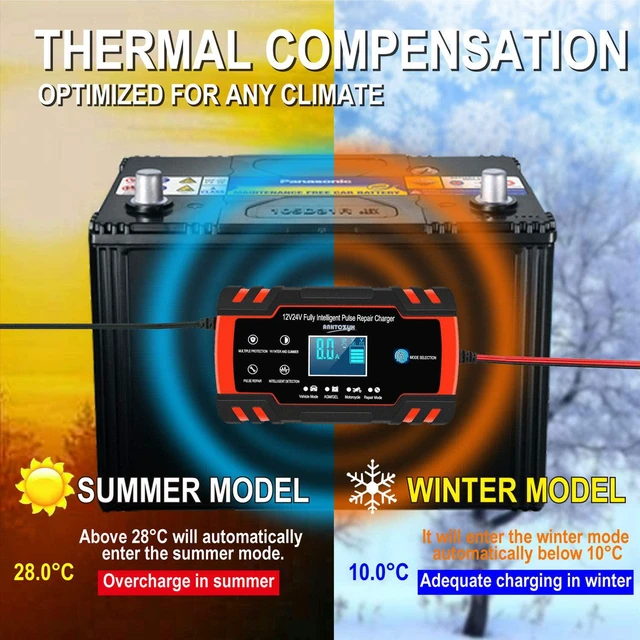

- Summer mode
- Winter mode

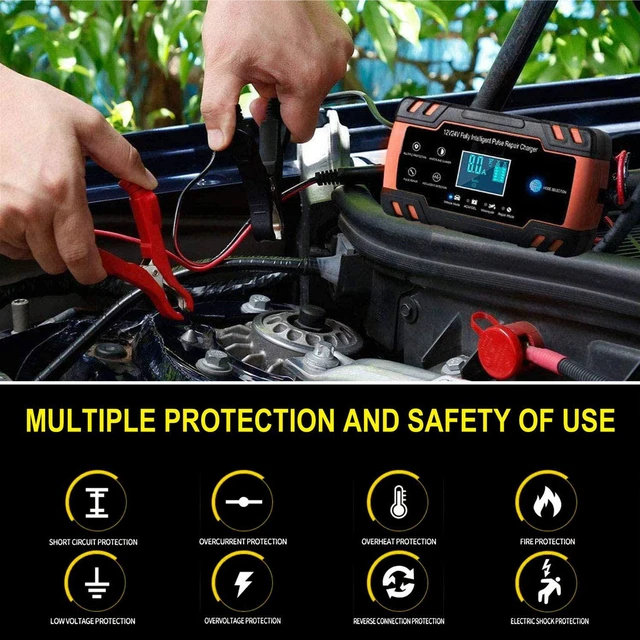

The battery charger offers safety features including reverse-polarity protection, over-current protection, overload protection, over-voltage protection, over-charge protection, and over-temperature protection.
