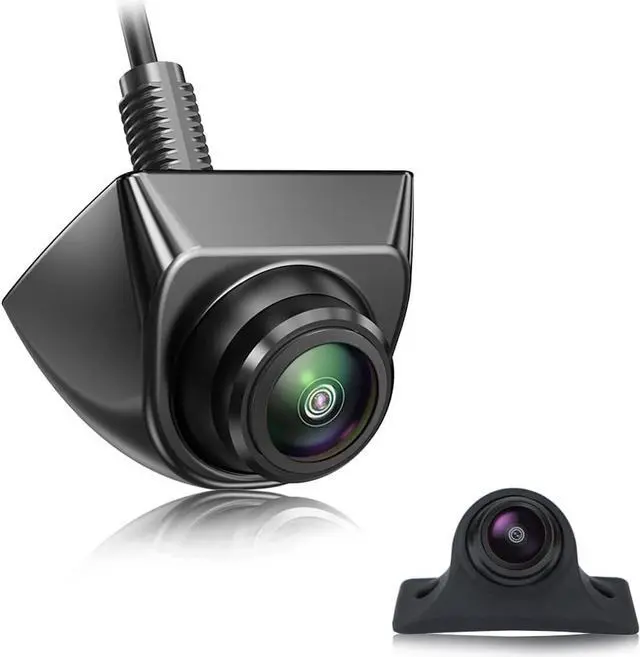

AHD 1080P Vehicle Backup Camera Only Work with Monitors Radio Head Units Supporting AHD 1080P Video Signal, GreenYi Reverse Rear/Front/Side View Camera, Adjustable Fisheye Lens(Black)

Attention BEFORE Placing order---OUR AHD backup camera supports AHD 1080P 25HZ only. According to our experience, some Android head units has the setting for AHD video signal, but the truth is that they can't display any AHD image, because they don't support AHD at all. If so, then you can only apply CVBS video signal, hope you understand. When applying CVBS video signal, the resolution is 720P (1280*720), view angle is 120 degrees.

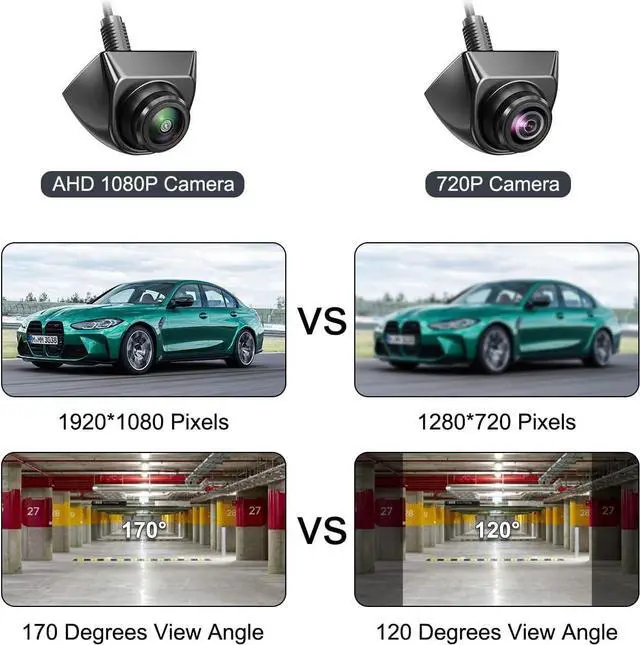

AHD 1080P Car Backup Camera---1920x1080 pixels resolution rear view camera with AHD video signal which provides more stable video signal transmission, less interference and delay than CVBS video signal cameras. High definition which is better than 99% reverse cameras, 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof, works properly under car washing or bad weather, fantastic night vision effect, 0.01 Lux starlight night vision ensures high clarity image at any time.

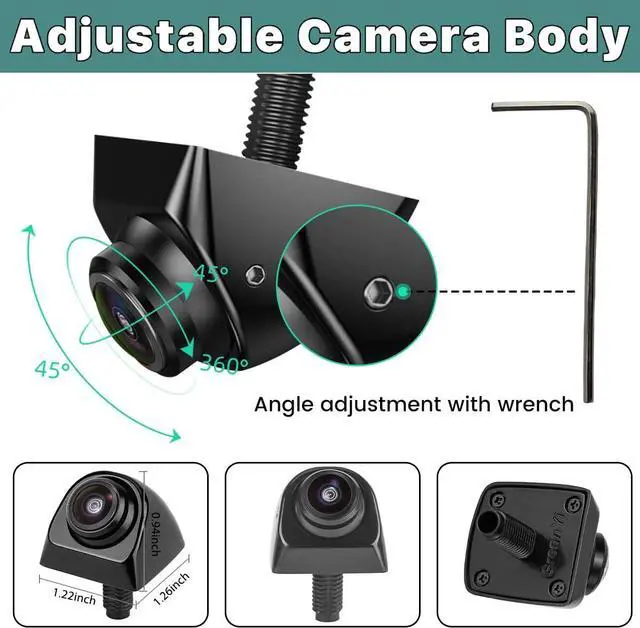

Built-in Rotating Metal Camera Body---Unlike old-fashioned car cameras which can only adjust the viewing angle by adding gaskets, you can rotate GreenYi pickup rear cameras lens part to find a best viewing angle with the help of the mini wrench, never need to worry about too high or too low image shown on the monitor. Mini design, solid shinning metal housing, shockproof, longer service life.

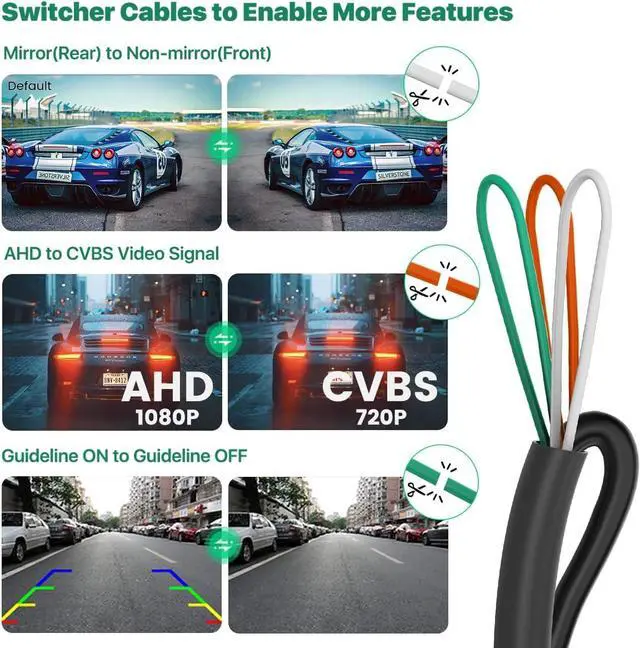

Three Switcher Cables Camera ---Cut white cable to switch mirror image (rear view) to non-mirror image (front view). Cut orange cable to switch AHD video signal to CVBS video signal, its output video signal is AHD by default, if you need it to connect with a CVBS monitor, please cut the orange cable on the camera. Cut green cable to turn off the guide line. Please reconnect power supply after cutting any cable, you can also connect it back after cutting the cable if needed.

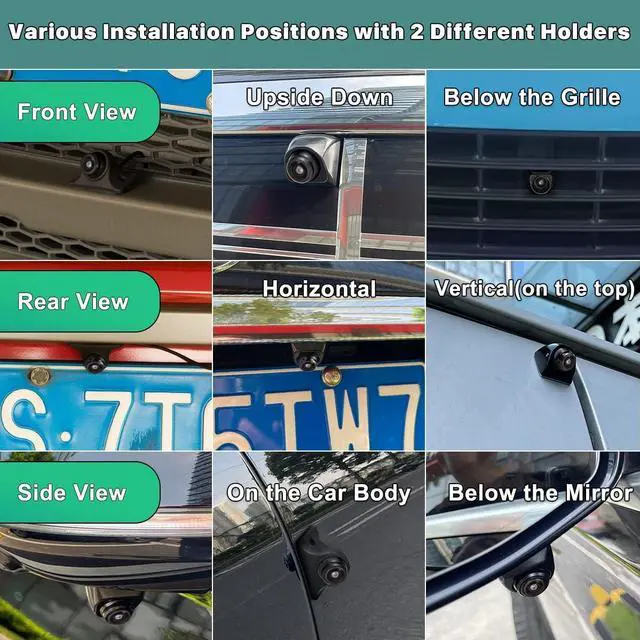

Versatile Vehicle Front / Rear / Side View Camera---You can install the rv blind spot camera at any position you want with vertical (upside down) or horizontal mounting as the camera body is 360-degree-rotatable and there is an extra silicone shell for you if you dont want to drill a big hole: front bumper/grille, rear deck lid/rear top/trunk handle/fender/5th wheel/tailgate, below the side mirror or on the car body, etc.
