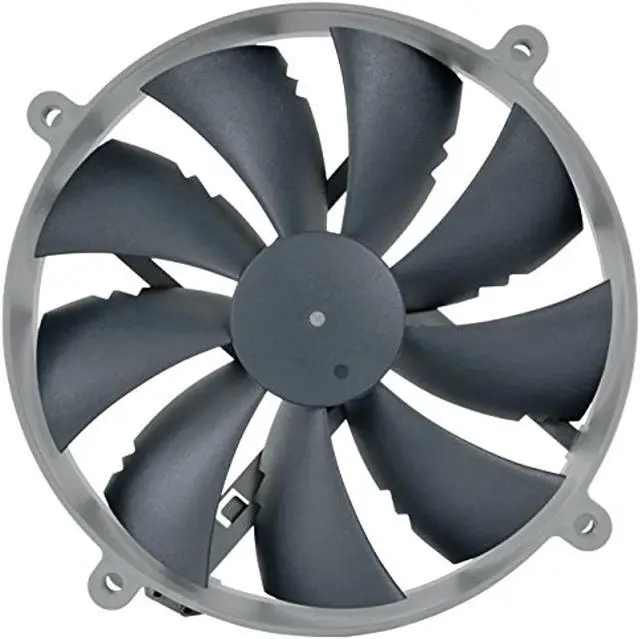

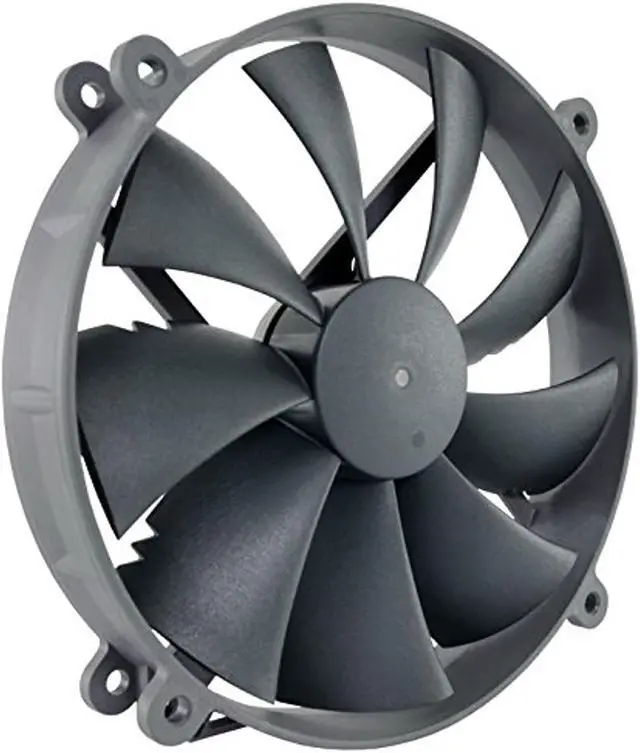

Noctua NF-P14r redux-1500 PWM, High Performance Cooling Fan, 4-Pin, 1500 RPM (140mm Grey)

Brand: Noctua
MPN: Noctua NF-P14r redux-1500 PWM

Noctua NF-P14r redux-1500 PWM High Performance Cooling Fan 4-Pin 1500 RPM (140mm Grey)
Product Description

Featuring a round frame designed for use on CPU coolers and now designated as NF-P14r (r for round frame) the classic NF-P14 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined accessibly priced package that has been reduced to the essential core: the NF-P14 premium fan. Its industry grade SSO-Bearing bearing and over 150.000 hours MTBF rating make the NF-P14 redux a proven premium choice that provides trusted Noctua quality. The performance-oriented top speed of the 1500rpm PWM version is ideal for high efficiency case radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.

^{Round 140mm frame with 120mm mounting holes}

Using a round frame with the same hole-spacing as common 120mm fans and producing more airflow due to its larger diameter the NF-P14r is a perfect upgrade for 120mm CPU or case fans.

Read more ^{Pressure-optimised Nine-Blade Design}

Specifically developed for high-impedance applications such as CPU coolers water-cooling radiators or cases with tight fan grills the NF-P14's nine-blade impeller provides outstanding pressure and airflow performance.

^SSO-Bearing

Combining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis Noctua's time-tested technology has become synonymous with supremely quiet operation and exceptional long-term stability.

^{Vortex-Control Notches}

Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.

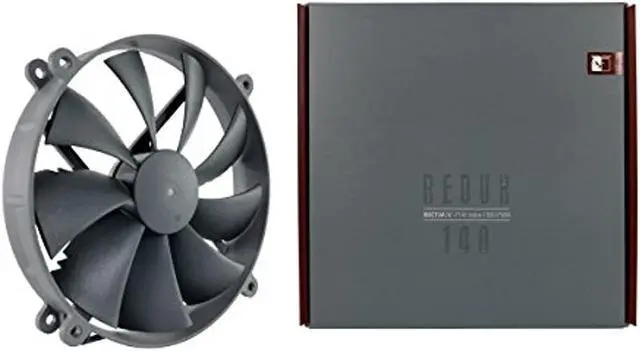

^{Scope of delivery}

• Fan
• 4 Fan Screws

Read more ^{Streamlined Redux Edition}

The redux product line reissues some of Noctua's most popular award-winning models by presenting them in streamlined accessibly priced packages. All redux edition products are industry proven time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.

Read more NF-P14s redux 900 NF-P14s redux 1200 NF-P14s redux-1200 PWM NF-P14s redux 1500 PWM NF-P14r redux-1500 PWM Connector 3-pin 3-pin 4-pin PWM 4-pin PWM 4-pin PWM Voltage 12V 12V 12V 12V 12V RPM Max: 1200 / Min: 350 Max: 1500 / Min: 450 Max: 1500 / Min: 450 Acoustical Noise 132 dB(A) 196 dB(A) 196 dB(A) 258 dB(A) 258 dB(A) Static pressure 077 mm H2O 129 mm H2O 129 mm H2O 191 mm H2O 191 mm H2O Airflow 837 m³/h 1103 m³/h 1103 m³/h 1337 m³/h 1337 m³/h Size 140x140x25 mm 140x140x25 mm 140x140x25 mm 140x140x25 mm 140x140x25 mm Colour Redux Grey Redux Grey Redux Grey Redux Grey Redux Grey

• High performance cooling fan 140x140x25 mm 12V 4-pin PWM max. 1500 RPM max. 25.
